Fetco CBS-2018 - Parts - Tank Assembly

13

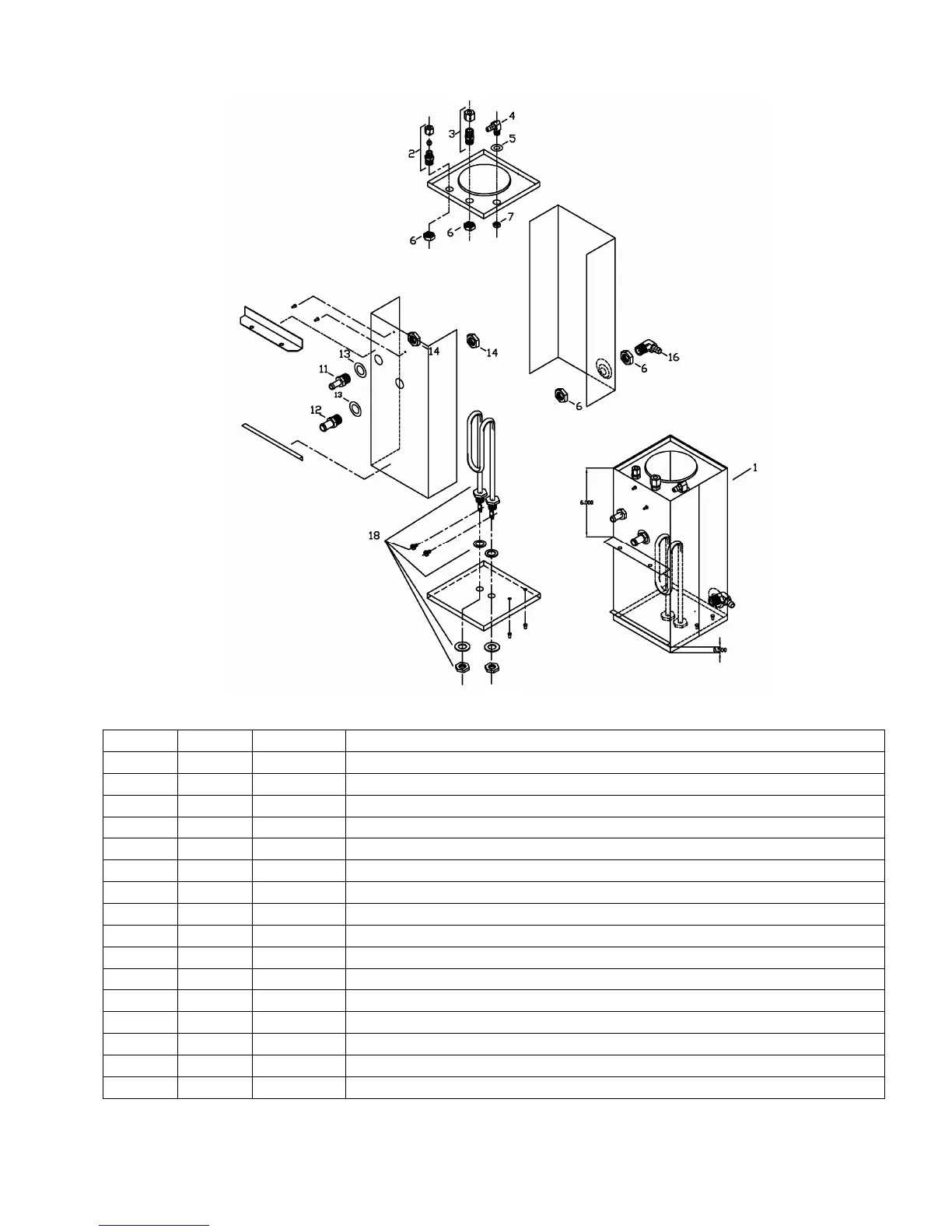

Figure 2 – Tank Assembly
DWG 004036-001
ITEM # QTY PART NO DESCRIPTION
1 1 04036 TANK WELDMENT (BODY ONLY)
2 1 31036 1/4" COMP. x 1/4" MPT CONN.
3 1 31129 3/8" COMP. x 1/4" MPT CONN.
4 1 31135 90DEG. ELBOW 5/16" HOSE ID x 1/8" MPT
5 1 83041 FLAT WASHER .875 O.D. x .412 I.D.
6 4 31117 1/4" LOCKNUT
7 1 31116 1/8" LOCKNUT
11 1 31077 3/8" HOSE BARB ID x 3/8 MPT FITTING
12 1 31071 1/2" HOSE BARB ID x 3/8 MPT FITTING
13 2 83043 TANK WASHER 1.125 OD, 0.688 ID
14 2 31118 3/8" LOCKNUT
16 1 31128 3/8" HOSE ID x 1/4" MALE PIPE 90DEG. ELBOW
18 1 107013 HEATER ASSY., 1.5KW, 120 VAC
18 1 107014 HEATER ASSY., 2.1KW, 120 VAC
18 1 107016 HEATER ASSY., 3.7KW, 240 VAC
18 1 107015 HEATER ASSY., 2.7KW, 240 VAC
