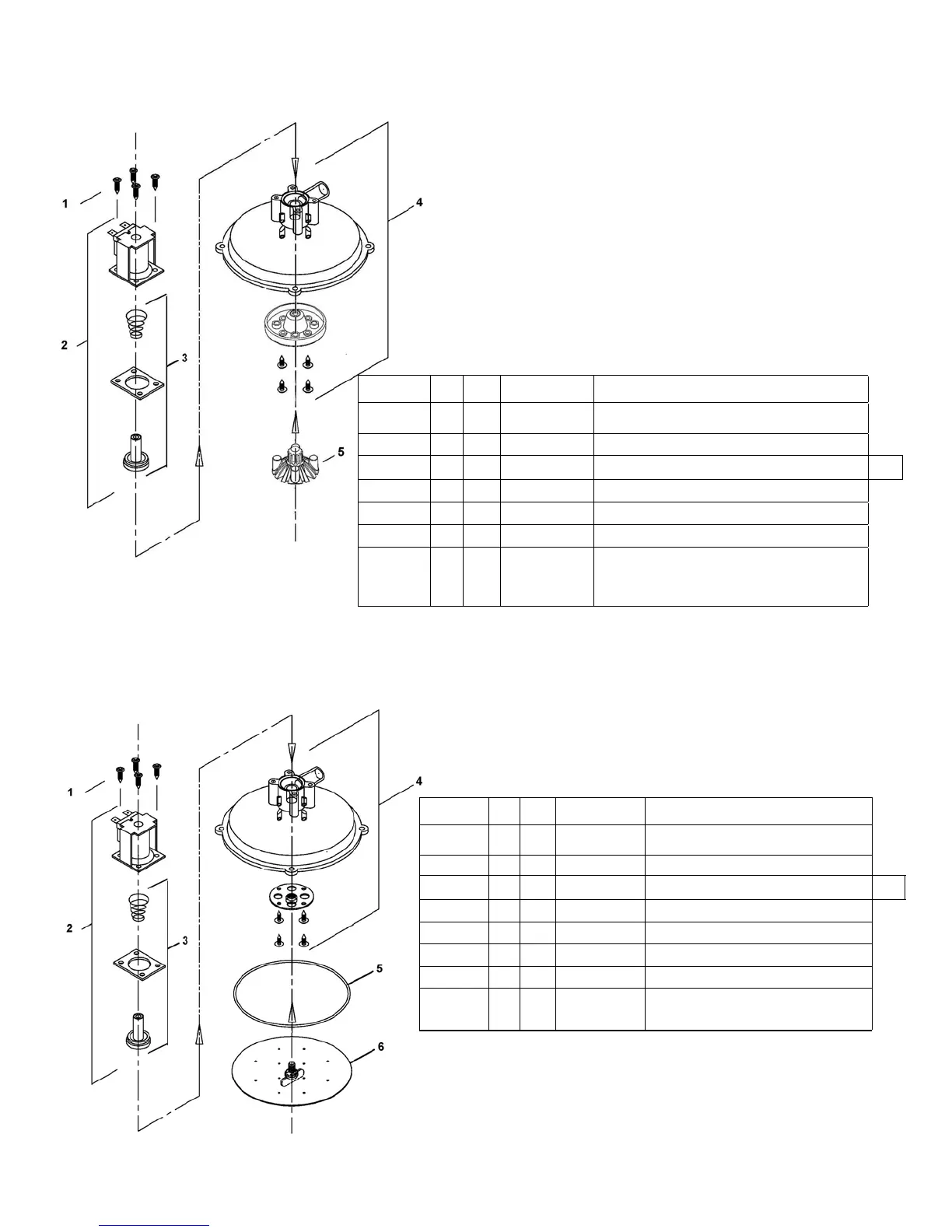

Figure 5a – CSD VERSIONS:
ASSY, CSD SMALL SPRAY HEAD, 120VAC, PART # 102395
ASSY, CSD SMALL SPRAY HEAD, 220VAC, PART # 102396 (EXPORT ONLY)
Figure 5b – SPRAY PLATE VERSIONS:
ASSY, SMALL SPRAY HEAD, 120VAC, PART # 102080
ASSY, SMALL SPRAY HEAD, 220VAC, PART # 102158 (EXPORT ONLY)
Figure 6 – Brew Basket Assembly, 13” X 5”, Part # B003280B1 (SQUARE)
ITEM # QTY
Old part
number
PART # DESCRIPTION
1 4
82112
#8 X 3/4'' PAN HD. PHIL. T.S.
18-8 S.S. SCREW
2 1
57047
1057.00013.00 VALVE, BREW, SMALL, 120VAC
2 1
57071 VALVE ASSY., DSV-11, 220 VAC
EXPORT
ONLY
3 1
57073
1057.00014.00 VALVE REBUILD KIT, DSV11
4 1
102082 SPRAY HOUSING ASSY.
5 1
24054
1024.00029.00 O-RING 4.237 ID, 0.103 IN CS
6 1
102081
102081 SPRAY PLATE ASSY., 4 7/8" DIA.
NOT SHOWN KIT
1000.00079.00
CSD Retro-Fit Kit
.
Includes all parts and clear instructions to update 5b
Into 5a- the current CSD brewer (above)
ITEM # QTY
Old part
number
PART # DESCRIPTION
1
4
82112
#8 X 3/4'' PAN HD. PHIL. T.S.
18-8 S.S. SCREW
2
1
57047
1057.00013.00 VALVE, BREW, SMALL, 120VAC
2
1
57071 VALVE ASSY., DSV-11, 220 VAC
EXPORT
ONLY
3
1
57073
1057.00014.00 VALVE REBUILD KIT, DSV11
4
1
102397 ASSY., CSD, SPRAY. HOUSING -SMALL
5
1
102363 ASSEMBLY, CASCADE SPRAY DOME
NOT SHOWN KIT
1000.00079.00
CSD Retro-Fit Kit
.
Includes all parts and clear instructions to update 5b (below)
Into 5a- the current CSD brewer
