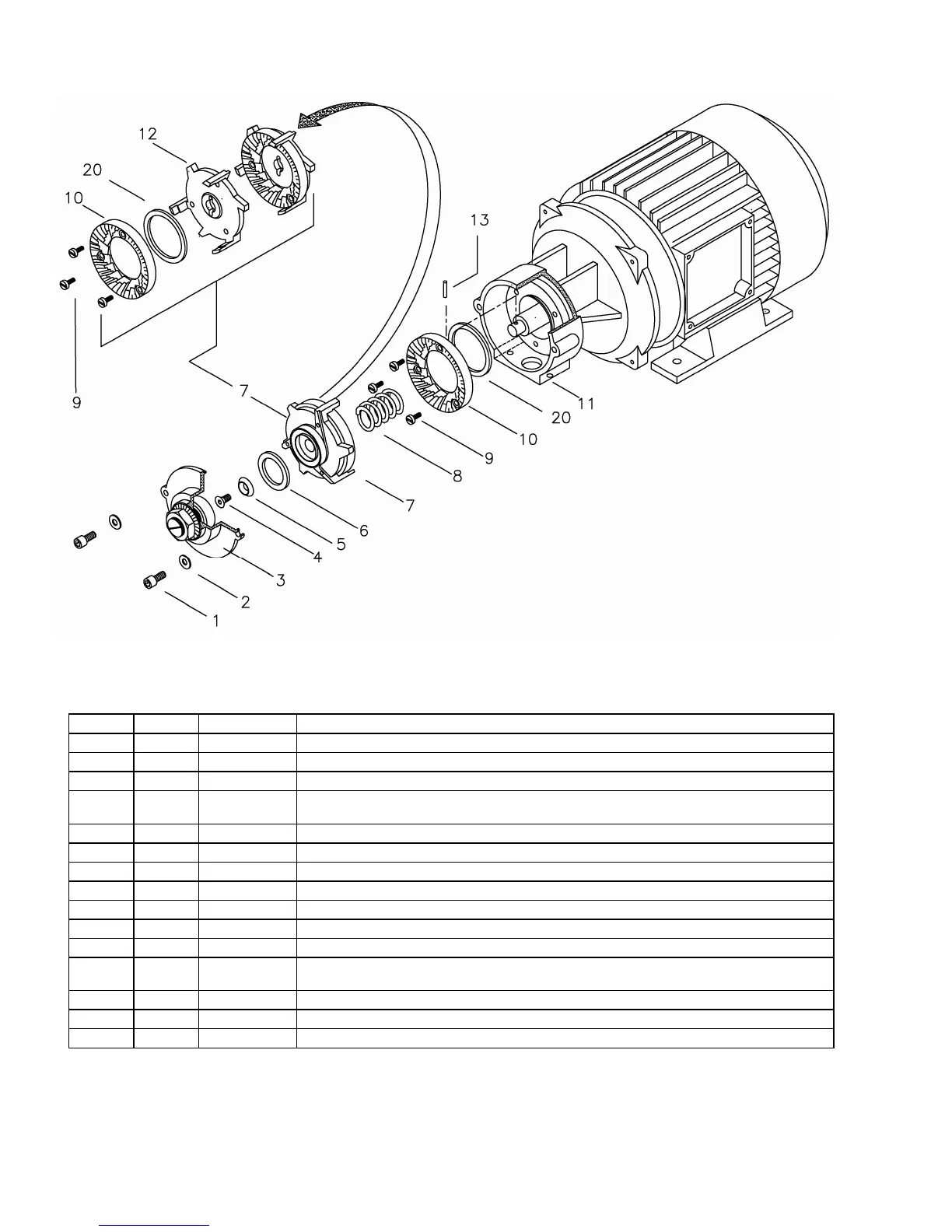

Figure 3 – GR-1 & GR-2 Motor Assy.
Parts List – Figure 3
ITEM QTY PART NO. Description
1 2 56012 COVER SCREWS
2 2 56013 COVER WASHERS
3 1 56011 COVER ASSEMBLY FOR GRINDING CHAMBER (includes K042 bearing assy.)
(3) 1 K042 BEARING ASSEMBLY (includes bearing and adjustment shaft)
(inside ITEM #3 – cover assembly)
4 1 56014 ROTOR SCREW
5 1 56015 ROTOR WASHER
6 1 56009 ROTATING DISC FLANGE WASHER
7 NA NA ROTOR ASSEMBLY – NOT SOLD AS A COMPLETE ASSEMBLY
8 1 85010 AUGER SPRING
9 6 56016 GRINDING DISC MOUNTING SCREWS
10 1 14006 GRINDING DISC, SET OF TWO
11 1 102206 GRINDING CHAMBER HOUSING ASSY. (includes housing, bearing, felt washer,
and retaining ring)
12 1 56008 ROTATING DISC FLANGE (ALSO REQUIRES #20 – 24049 GRINDING RING)
13 1 87018 MOTOR SHAFT PIN
20 2 24049 GRINDING RING, HDPE
To Next Page
