FFC LAF5416 - 5-Line Assembly; Part List

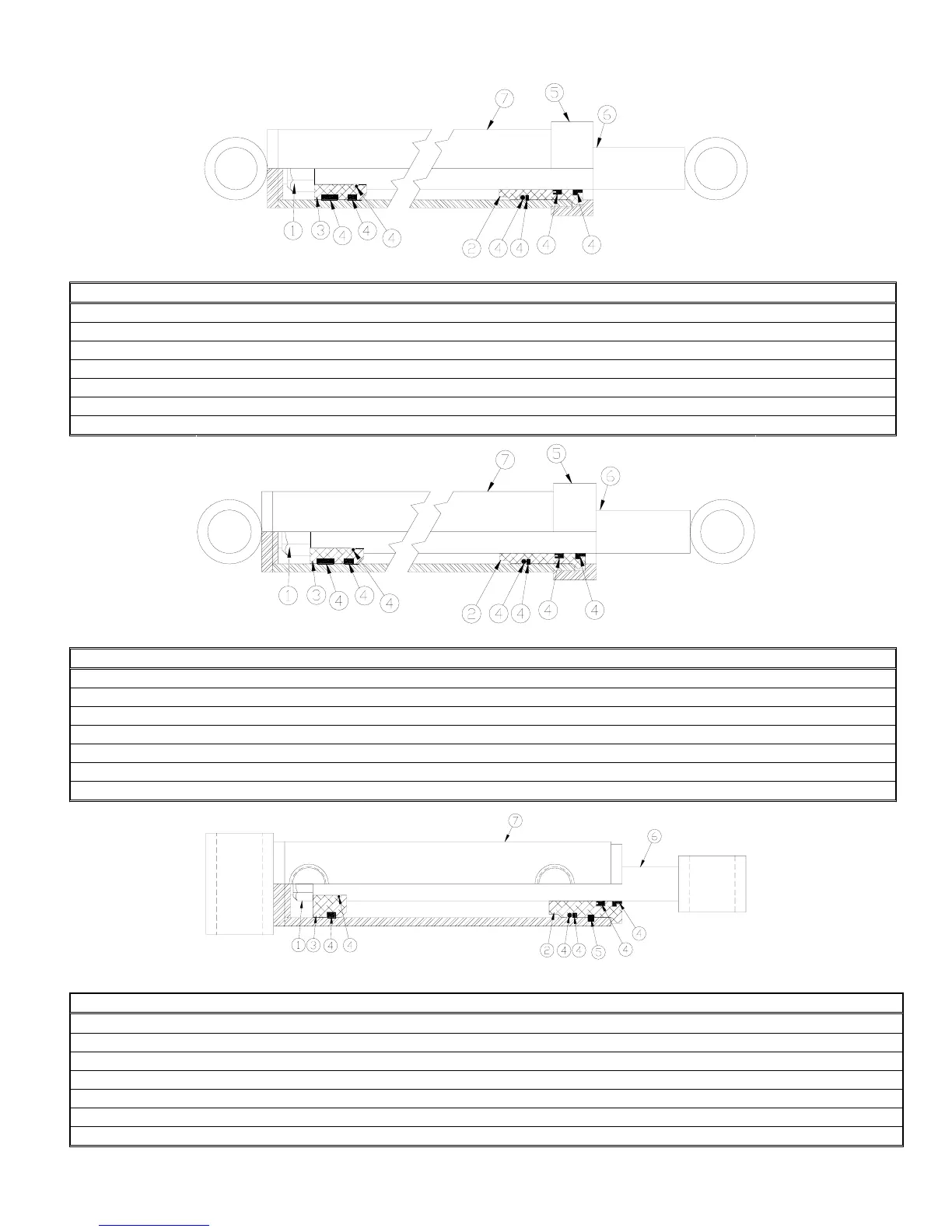

CYLINDER ILLUSTRATION(S) & PARTS LIST
Sideshift Cylinder (LAF4698)
Item # Qty Part # Description
1 1 LAF4723 NUT, ¾-16 GRADE C ANTIVIBRATION
2 1 LAF4724 HEAD, 1.0” I.D. NOMINAL
3 1 LAF4725 PISTON 1.5” O.D. X 1” I.D. NOMINAL
4 1 LAF4726 SEAL KIT 1.5” BORE 1.0” ROD
5 1 LAF4727 COLLAR, 1.0 I.D. NOMINAL
6 1 LAF4728 SHAFT, 1” DIAMETER 24” STROKE
7 1 LAF4729 BARREL, 1.5” I.D. 24” STROKE
Depth Cylinder (LAF4704)
Item # Qty Part # Description
1 1 LAF4723 NUT, ¾-16 GRADE C ANTIVIBRATION
2 1 LAF4724 HEAD, 1.0” I.D. NOMINAL
3 1 LAF4725 PISTON 1.5” O.D. X 1” I.D. NOMINAL
4 1 LAF4726 SEAL KIT 1.5” BORE 1.0” ROD
5 1 LAF4727 COLLAR, 1.0 I.D. NOMINAL
6 1 LAF4730 SHAFT, 1” DIAMETER 12” STROKE
7 1 LAF4731 BARREL, 1.5” I.D. 12” STROKE
Tilt Cylinder (LAF4705)
Item # Qty Part # Description
1 1 LAF4732 NUT, 1/2-20 GRADE C ANTIVIBRATION
2 1 LAF4733 HEAD, ¾” I.D. NOMINAL
3 1 LAF4734 PISTON 1.5” O.D. X ¾” I.D. NOMINAL
4 1 LAF4735 SEAL KIT 1.5” BORE ¾” ROD
5 1 LAF4736 KEY STOCK, .125” X 1.5”
6 1 LAF4737 SHAFT, ¾” DIAMETER 4.5” STROKE
7 1 LAF4738 BARREL, ¾” I.D. 4.5” STROKE
