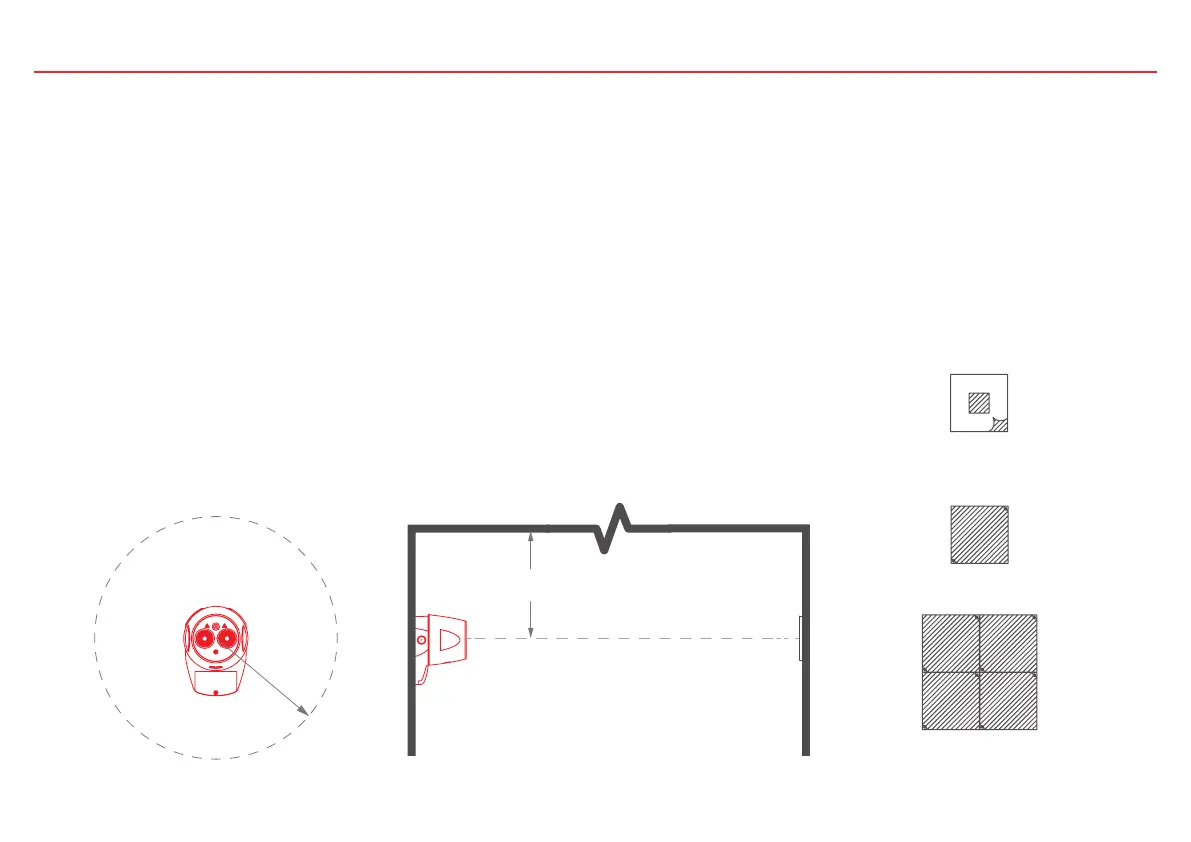

2. General Information
Installation
≥ 0.3 m/12”
0.5 m/
20 m - 50 m/66-164 ft= 1 Reflector
5 m - 20 m/16-66 ft =
1Reflector + Short Range Mask
50 m - 120 m/164-394 ft= 4 Reflectors
5 m - 120 m/
16-394 ft
All installations should comply with local regulations.
Position Beam as high as possible, but with a minimum distance of 0.3 m/12” from Detector and Reflector to ceiling.
Ensure there are no reflective surfaces within 0.5 m of the beam path centre.
Ensure the correct Reflector is selected for the appropriate distance.
Mount Detector and Reflector directly opposite each other.
Do not mount Reflector onto reflective surfaces.
Do not mount Detector or Reflector in areas of direct sunlight.
Do NOT position the Detector where personnel or objects can enter the Beam path.
Do NOT install the Detector or Reflector in environments where condensation or icing are likely to occur unless preventative measures have
been taken.
20”
Safety
Intended Use
The FDL242 Linear Smoke Detector is only permitted for use on an addressed FDnet/C-NET detector line.
