FFE FDL242 - Cable Entry and Management

Page 8
Cable glands should be used on the cable entry of the FDL242 to maintain the IP rating of the enclosure and provide cable strain relief.
Use cable glands with an IP rating of IP55, or greater, which are suitable for the outside diameter of cable(s) being used for the installation.
Two types of cable gland are recommended:
1) M20 x1.5 Metal cable gland, order number A5Q00004478 (Siemens)
2) M20 x1.5 polyamide cable gland and suitable nut, for example:
a) Wire clamping range 4 - 10 mm: article number 53111520 and article number 53119023 (U.I. Lapp GmbH)
b) Wire clamping range 6 - 13 mm: article number 53111420 and article number 53119023 (U.I. Lapp GmbH)
5. Cable Entry

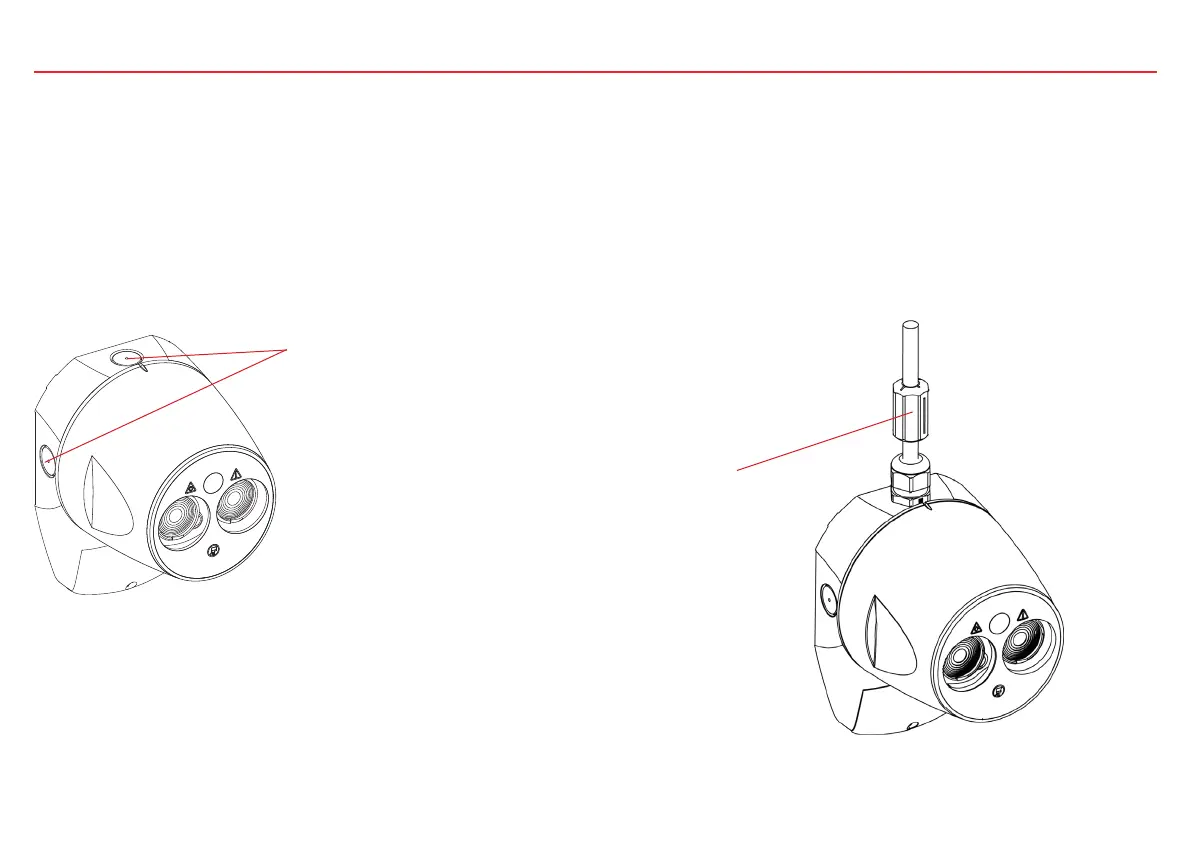

To open cable entries use a twist drill with suitable
diameter and centring point.
Forcefully breaking out the cable entry may
damage the FDL242.
Install one cable ferrite on each
cable entry to the detector.
