Stabilizer 5mm only in
Monster/Stadium version
Retaining
washer Ø5
Rear lower
wishbone pin
Rear driving
shaft
Disk Ø4,3
Rear damper
plate 4WD
Rear axle
mount left
Rear upright
left
Screw
4,2x9,5
Screw
4,2x22
Rear lower
wishbone

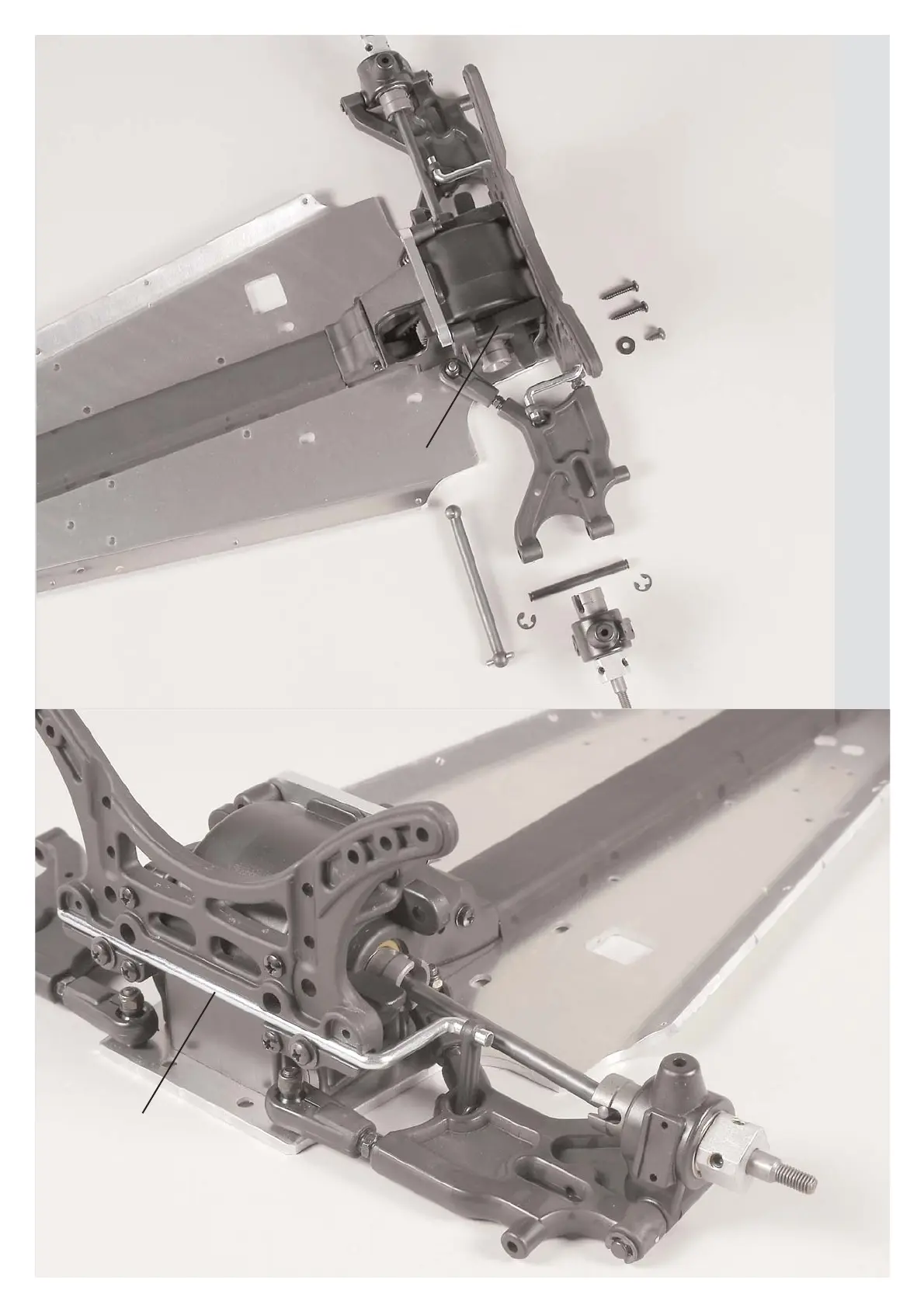

1. Mount the 4WD damper plate rear to the left and right
rear axle mounts using 4,2x22 pan-head screws.
2. Push the stabilizer (only Monster/Stadium models) into
the rear damper plate and fasten it with 4,2x9,5 pan-head
screws and disks Ø4,3.
3. Disassemble rear uprights, rear driving shafts and rear
lower wishbone pins from your existing 2WD model and
impress them in the rear lower wishbones as described in
position 10+11. Secure the wishbone pins with Ø5 retai-
ning washers.
Position 10
Parts are in
bag D
Position 11
Parts are in bag D
