FG Modellsport 68500 - Position 12; Parts Are in Bag D; Rear Damper

Adjusting clips
Retaining
washer Ø5
Rear upper
wishbone pin
Headless pin
M5x25
Left upright
Rear damper
plate
Rear wishbone
thread rod
M10/M8 84mm
Rear upper
wishbone
Ball-and-socket joint
Screw
M5x35
Baustufe 14
Teile sind in
Beutel
Position 12
Parts are in
bag D
Steel ball
10x13
Disk Ø5,3
Make sure the driving shaft has not
more than 2-3mm clearance in horizon-
tal position. Adjust the adjusting screws
of the rear axle correspondingly.
According to the toe-in
adjustment the upper
wishbone needs to be shim-
med by adjusting clips.
approx. 77mm
approx. 6mm

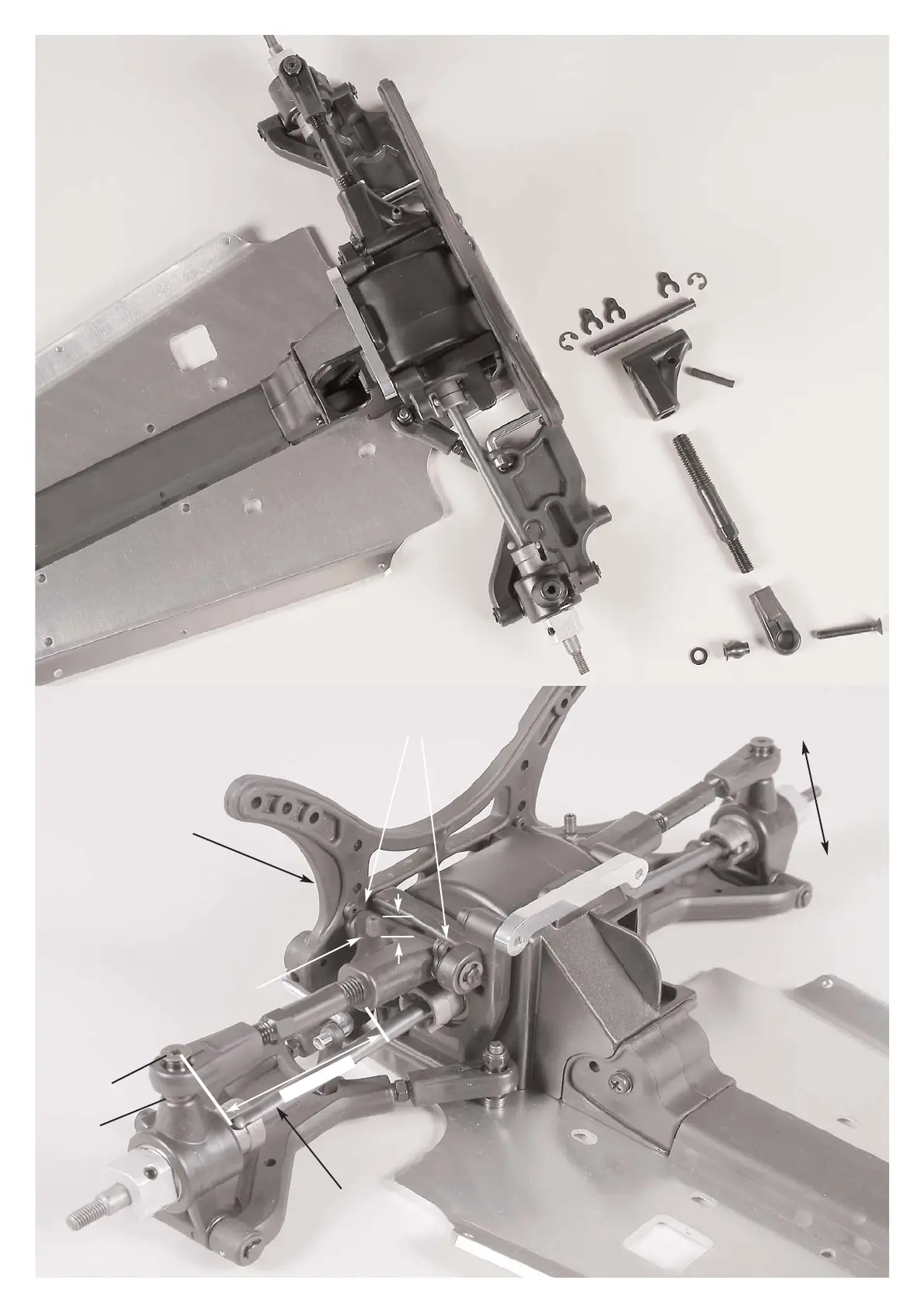

1. Disassemble the rear upper wishbone pin and the
ball-and-socket joint with steel ball from your existing
2WD model.
2. Screw the rear wishbone thread rods M10/M8 84mm into
the rear upper wishbones and in the ball-and-socket joints
to the size of approx. 77mm.
3. Fix the completely mounted rear upper wishbones at
the rear axle mounts by using wishbone pins, then
mount the rear damper plate. Secure the wishbone pins
with Ø5 retaining washers.
4. Push two adjusting clips each in the rear upper
wishbone pins in the front between rear axle mounts
and rear upper wishbones, then push one adjusting
clip each in the rear upper wishbone pins in the rear
between rear damper plate and rear upper wishbones.
5. Fix the ball-and-socket joints with steel
ball (steel ball collar must face the upright)
at the uprights using M5x35 countersunk
screws and disks Ø5,3, see position 12+13.
6. Screw M5x25 headless pins from above
into the rear upper wishbones (rebound stop
travel).
Disk
Ø5,3
Screw
M5x35
Position 13
Parts are in
bag D
Make sure the rear wishbones
can be moved easily up and
down.
