TABLE 1 - HP Series Electrical Data
* All 15 and 20 kW heaters can be separated into two individual circuits. The wiring information listed presumes the unit transformer
and blower motor will be wired to the first circuit.
6

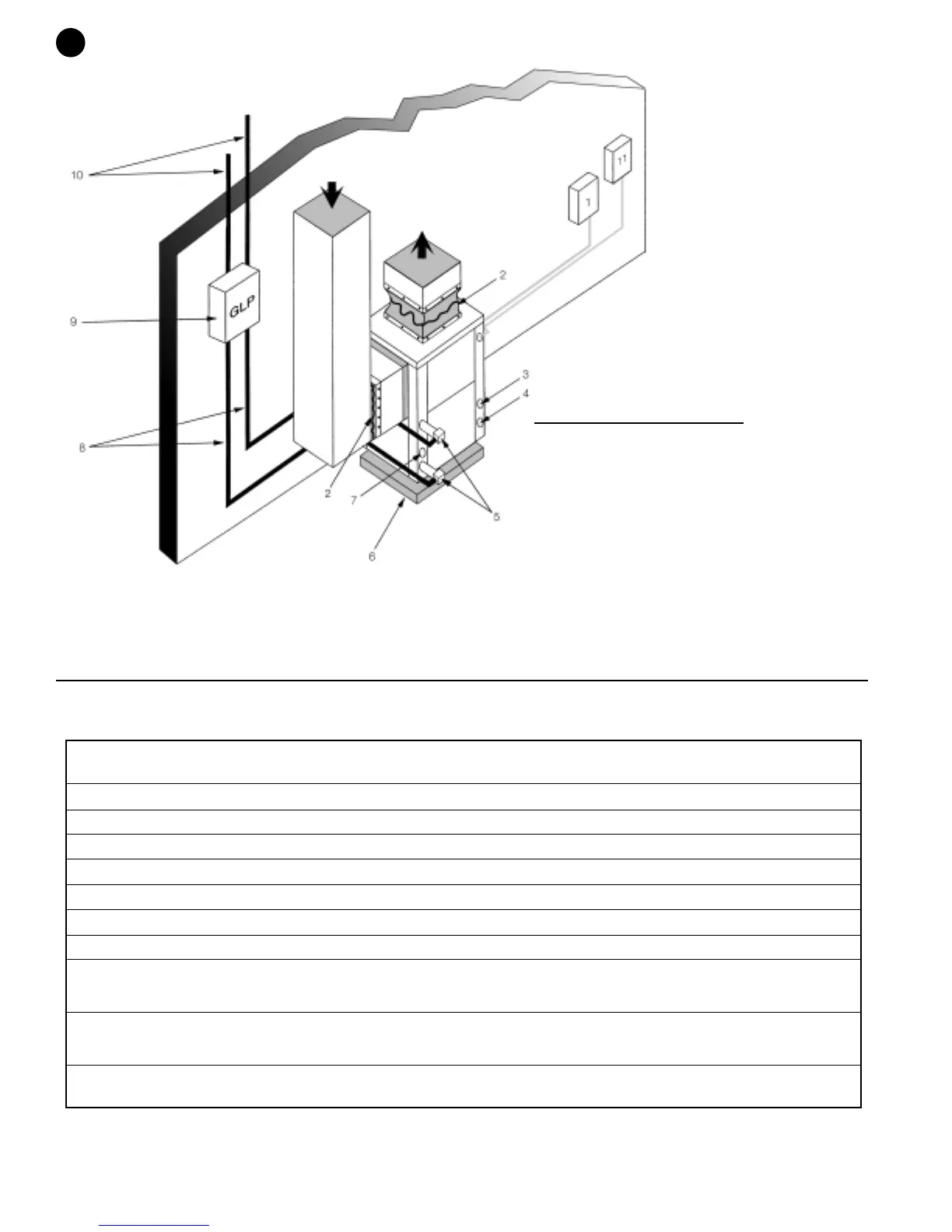

EV SERIES
EARTH COUPLED APPLICATION
1. LINE VOLTAGE DISCONNECT (UNIT)
2. FLEX DUCT CONNECTION
3. LOW VOLTAGE CONTROL CONNECTION
4. LINE VOLTAGE CONNECTION (UNIT)
5. P/T PORTS
6. VIBRATION PAD
7. CONDENSATE DRAIN
8. GROUND LOOP CONNECTION KIT (550-016, 017)
9.* GROUND LOOP PUMPING PACKAGE
10. POLYETHELENE WITH INSULATION
11. LINE VOLTAGE DISCONNECT (ELECTRIC HEATER)
NOTE: SEE FIGURE #3 FOR CONDENSATE DRAIN CONNECTION
* Optional Internal Installed
(Figure #7)
208V 240V 208V 240V 208V 240V
❍ EV030 thru 042 HP050-1XS 4.8 17.3 20.0 L1/L2 27.1 30.4 30 30 8
❍ EV048 thru 060 HP050-1XM 4.8 17.3 20.0 L1/L2 27.1 30.4 30 30 8
❍ EV030 thru 042 HP075-1XS 7.2 23.6 30.0 L1/L2 34.9 42.9 40 45 8
❍ EV048 thru 060 HP075-1XM 7.2 23.6 30.0 L1/L2 35.7 43.8 40 45 8
❍ EV030 thru 042 HP100-1XS 9.6 34.7 40.0 L1/L2 48.8 55.4 50 60 6
❍ EV048 thru 060 HP100-1XM 9.6 34.7 40.0 L1/L2 49.5 56.3 50 60 6
❍ EV048 thru 060 HP150-1XM 14.4 52.0 60.0 SINGLE 71.2 81.3 80 90 4
HP150-1XM 14.4 34.7 40.0 L1/L2 49.5 56.3 60 60 6
17.3 20.0 L3/L4 21.7 25.0 25 25 10
❍ EV048 thru 060 HP200-1XM 19.2 69.3 80.0 L1/L2 92.9 106.3 100 110 2
HP200-1XM 19.2 34.7 40.0 L1/L2 49.5 56.3 50 60 6
34.7 40.0 L3/L4 43.4 50.0 45 50 6
All heaters rated single phase 60hz, and include unit fan load. All fuses type “D” time delay or HACR type breaker or HRC FORM 1 Wire
size based on 60 deg. C copper conductors.
EV HEATER KW HEATER CIRCUIT MCA MAX AWG
MODEL MODEL AMPS FUSE MIN
