5

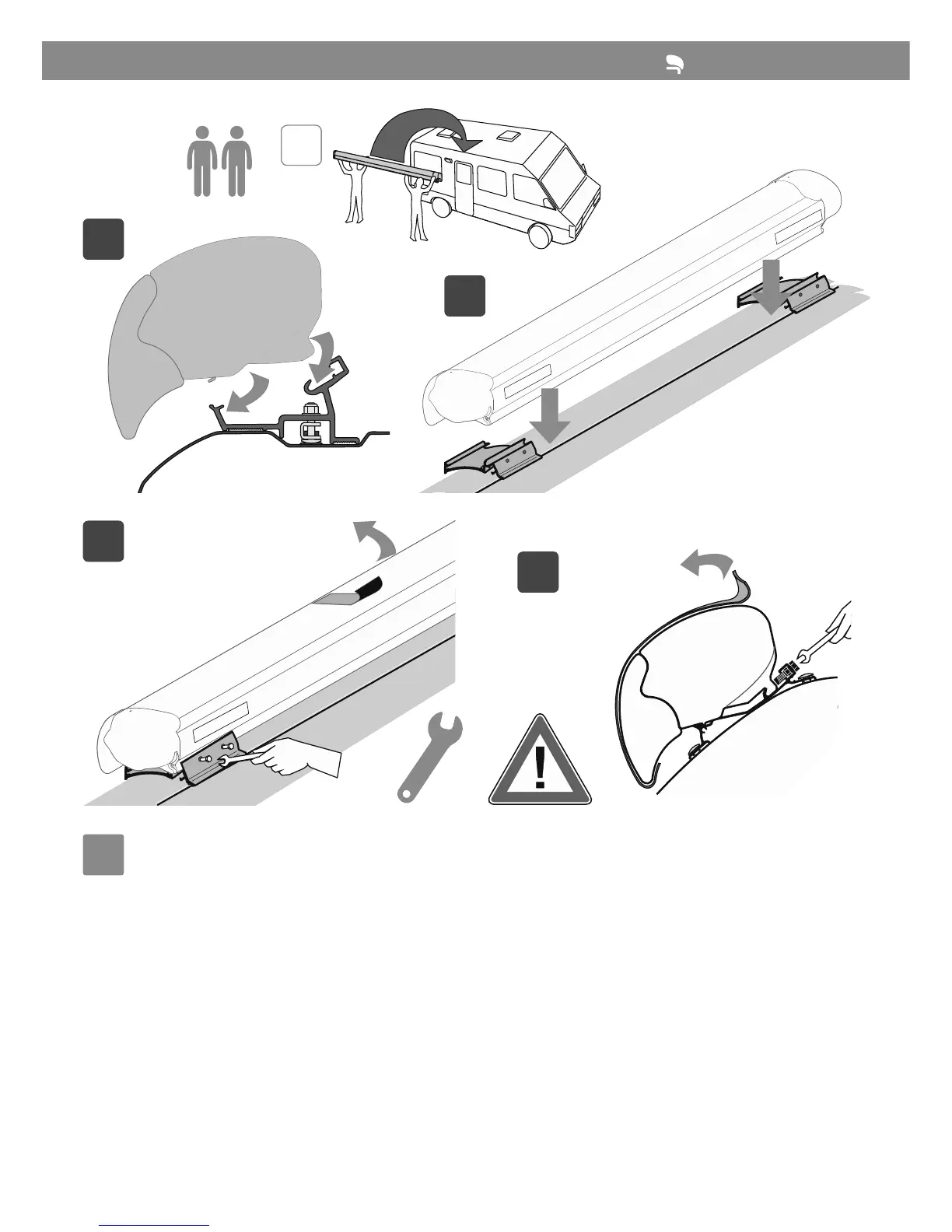

INSTALLATION ON FIXING KIT
To install the bracket, follow the specifi c installation instructions.
The awnings are to be fi xed on the brackets so that the words “SUPPORT” on the awning are in
correspondence of the brackets: this condition is necessary and indispensable for the two brackets
situated at the extremities (which are located on the fi xing point of the arms on the case-box).
It is important, but not indispensable, for the central bracket/s as it/they provide/s only a mounting
support.
The brackets must always be well-aligned to each other to avoid later problems; in case they are not,
they must be properly shimmed using the spacers to ensure the alignment.
The installation of the awning can occur only when the brackets are perfectly aligned to the roof of the
vehicle.
Attention security: remove this label
(1)
only after fi xing the awning on the bracket.
EN
(1)
1
3
4
2
