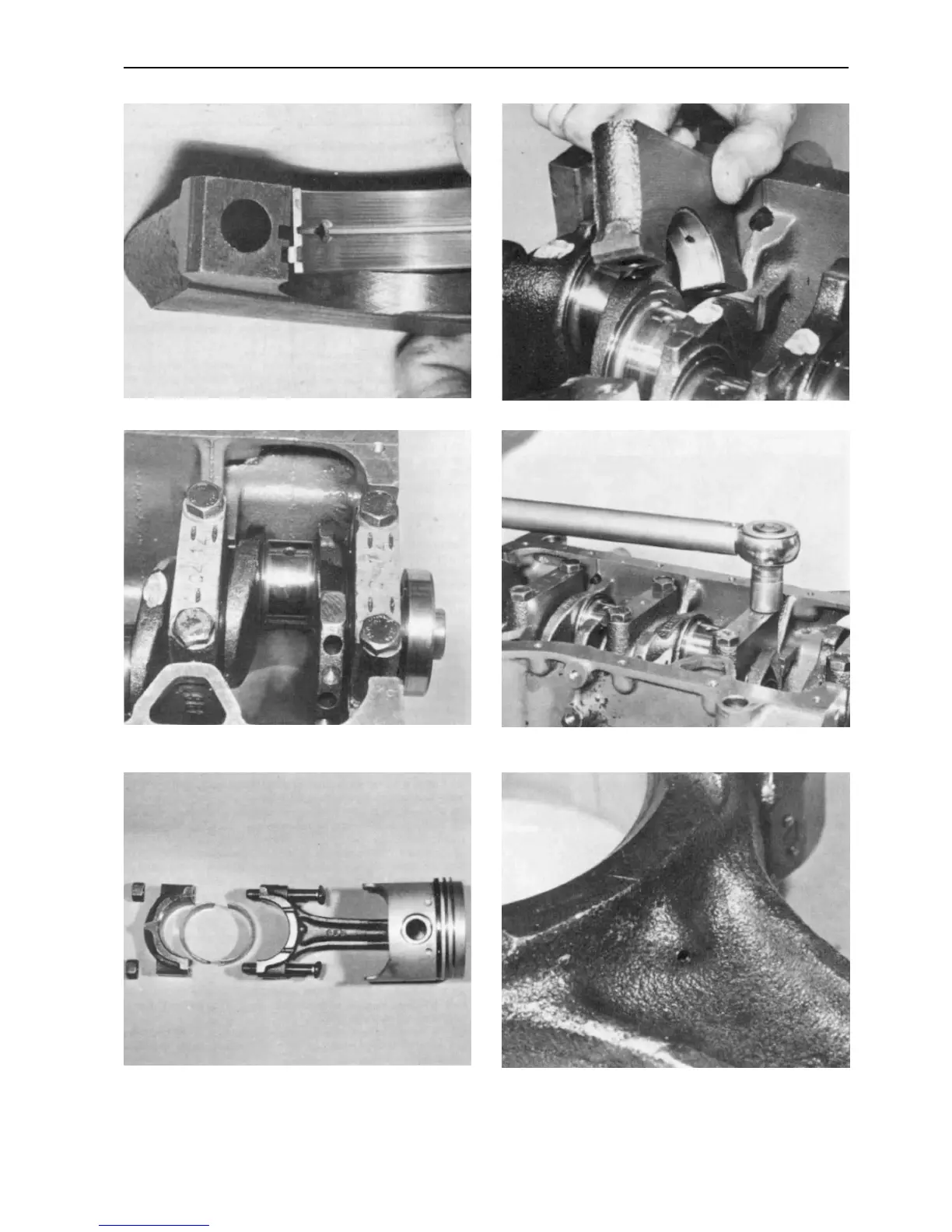

3.11A Fit the bearing shell ti the main bearing caps… 3.11B …and then fit caps to the crankcase after oiling the
shells
3.11C Ensure that each cap is the right way round in its
own location with the one with four marks at the flywheel
end of the crankcase
3.12 Tighten main bearing cap bolts with a torque wrench
3.15 Piston and connecting rod assembly 3.17 One of the oil jet holes in the big-end – the other is on
the other side of the rod
