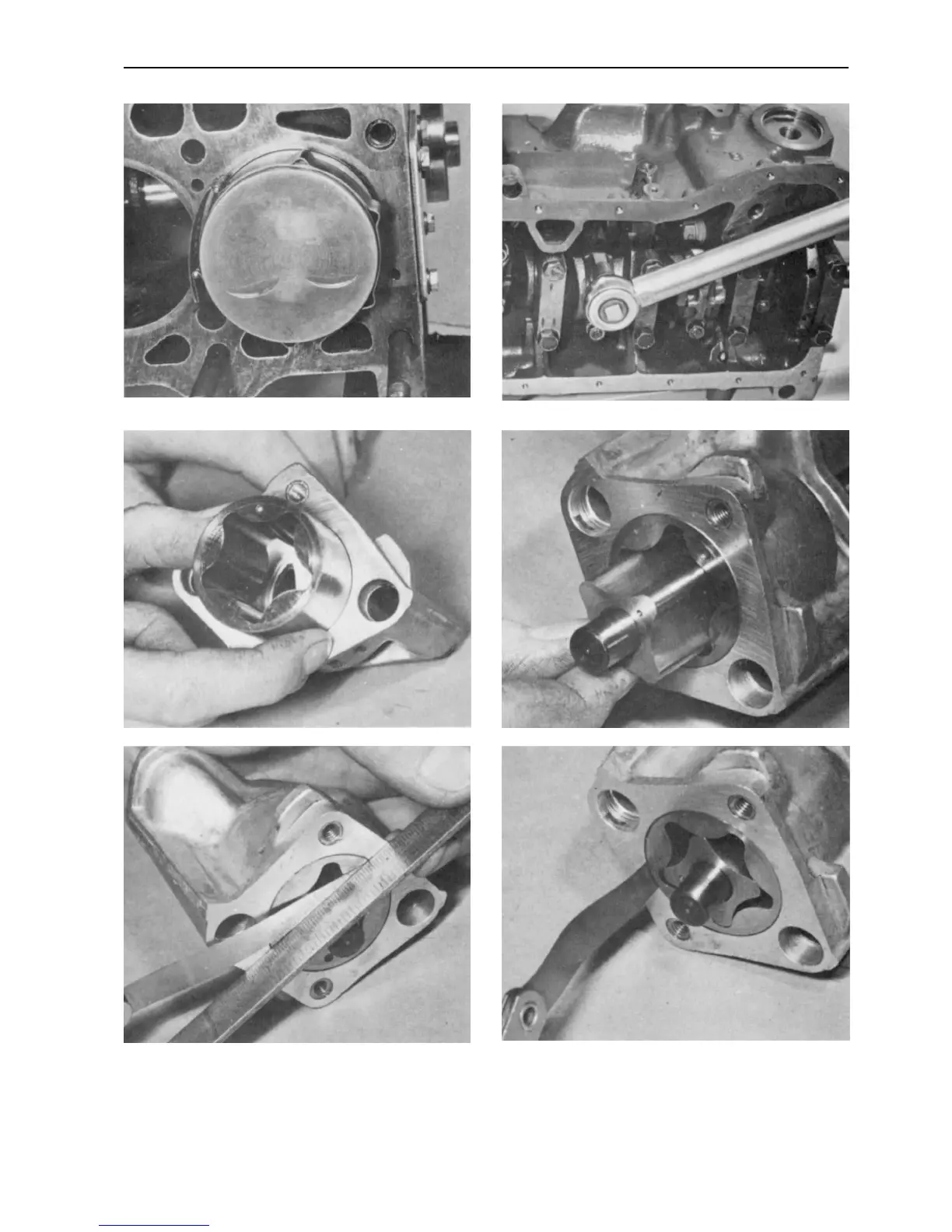

3.18 The valve depressions in the piston are adjecent to
the cylinder head studs in the block
3.20 Torque tighten the big-end cap nuts
3.22A Firts fit outer rotor to the oil pump body… 3.22B …followed by the inner rotor
3.23 Measure the end clearance of the rotors with the
pump face
3.24 Measure the outer rotor to body clearance…
