Fuse Removal
To replace a fuse use the extractor attached to
the fuse cover (located on the inside of the
engine compartment fuse cover.)

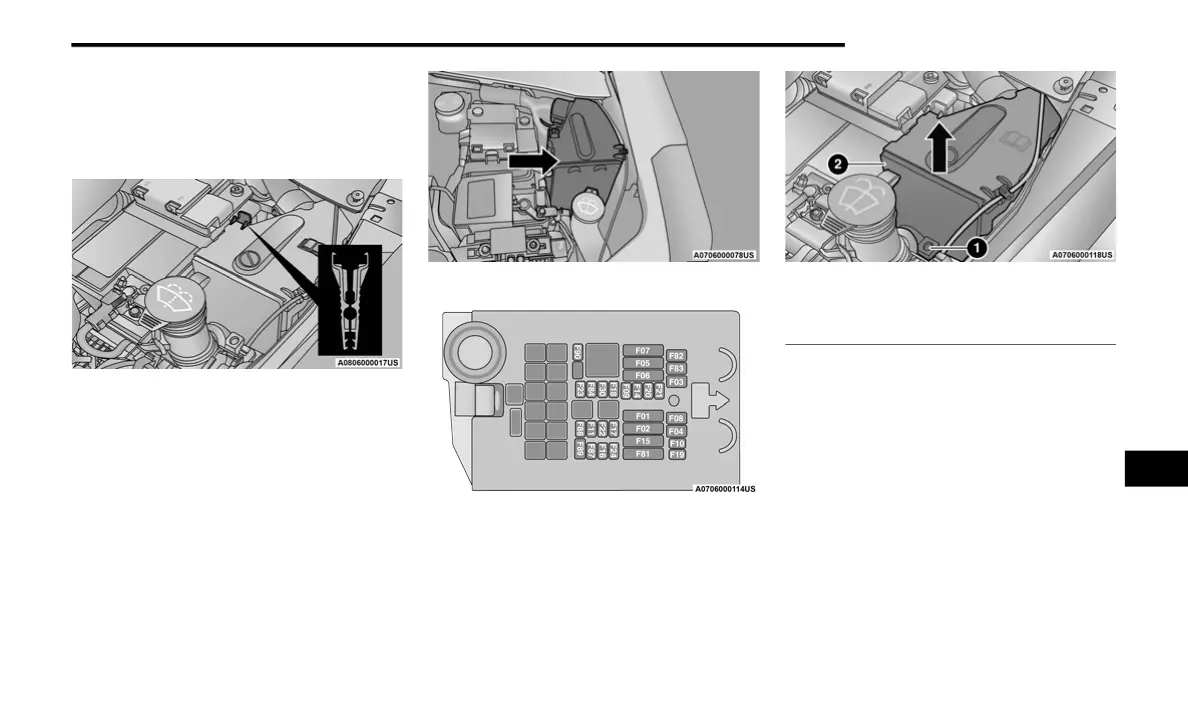

Fuse Extractor Location
Access To The Fuses
The fuses are grouped into four controllers
located in the engine compartment, under the
instrument panel and on the inside of the left
side cargo trim panel.
Engine Compartment Fuses/Distribution
Unit
The engine compartment fuse panel is located
on the left side of the engine compartment.
Engine Compartment Fuse Location
Engine Compartment Fuse Cavities
Fuse Panel And Cover Location
Removing Fuse Cover and Locking Screw
Proceed as follows:
1. Slowly turn the screw counterclockwise.
2. Slowly release the screw.
3. Remove the fuse cover by sliding it upward.
1 — Mounting Screw
2 — Fuse Cover
