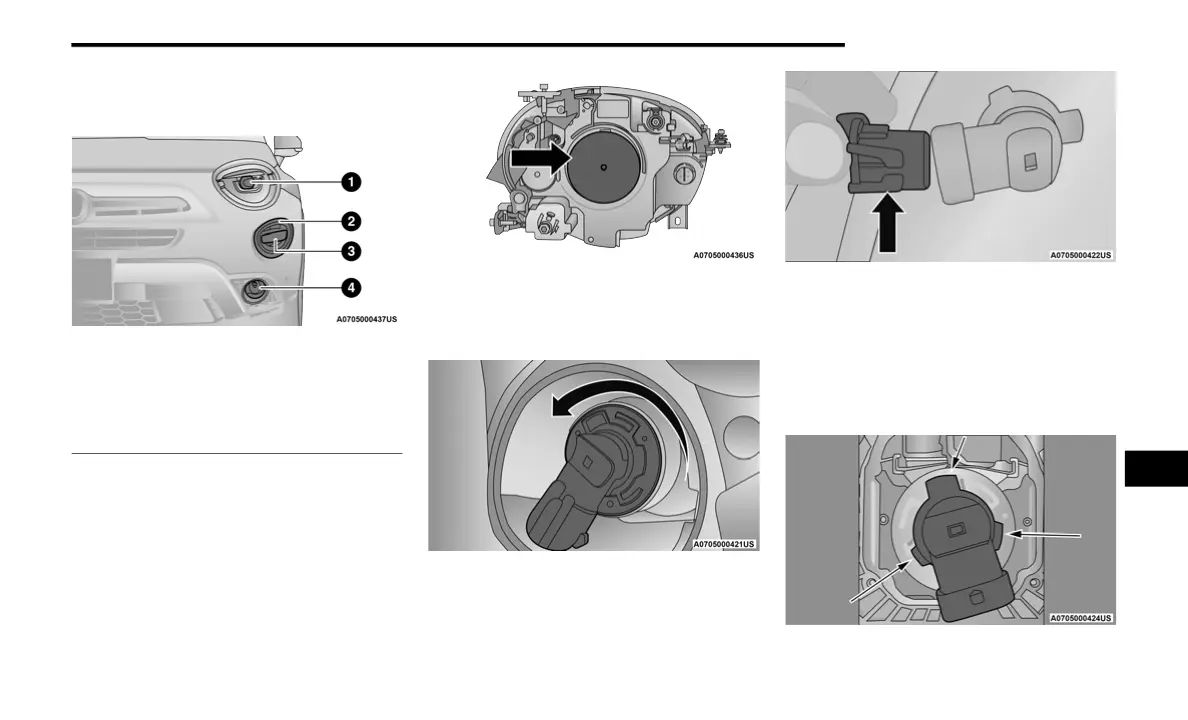

Replacing Exterior Bulbs
Headlamps
Front Lamps
Hi/Lo Beam Light Halogen
See below steps for bulb replacement:
1. Open the engine compartment and remove
the headlamp bulb cap.
Headlamp Bulb Cap
2. Rotate the headlamp bulb socket counter-
clockwise then pull outwards.
Headlamp Bulb Socket
3. Release the locking tab on the headlamp
bulb connector and remove the bulb and
socket.
Headlamp Bulb Connector
4. Install the new headlamp bulb making sure
it is properly locked.
5. Install the headlamp bulb and socket; align
the tabs and turn it clockwise making sure it
is properly locked.
Headlamp Bulb Connector
1 — Headlamps
2 — Daytime Running Lamps
3 — Directional Indicators
4 — Fog Lamps — If Equipped
