Fiat Ducato - Page 275

90 600 kg
91 615 kg
92 630 kg
93 650 kg
94 670 kg
95 690 kg
96 710 kg
97 730 kg
98 750 kg
99 775 kg
100 800 kg
101 825 kg
102 850 kg
103 875 kg
104 900 kg
105 925 kg
106 950 kg
107 975 kg
108 1000 kg
109 1030 kg
110 1060 kg
111 1090 kg
112 1120 kg
113 1150 kg
114 1180 kg
115 1215 kg
116 1250 kg
117 1285 kg
118 1320 kg
119 1360 kg

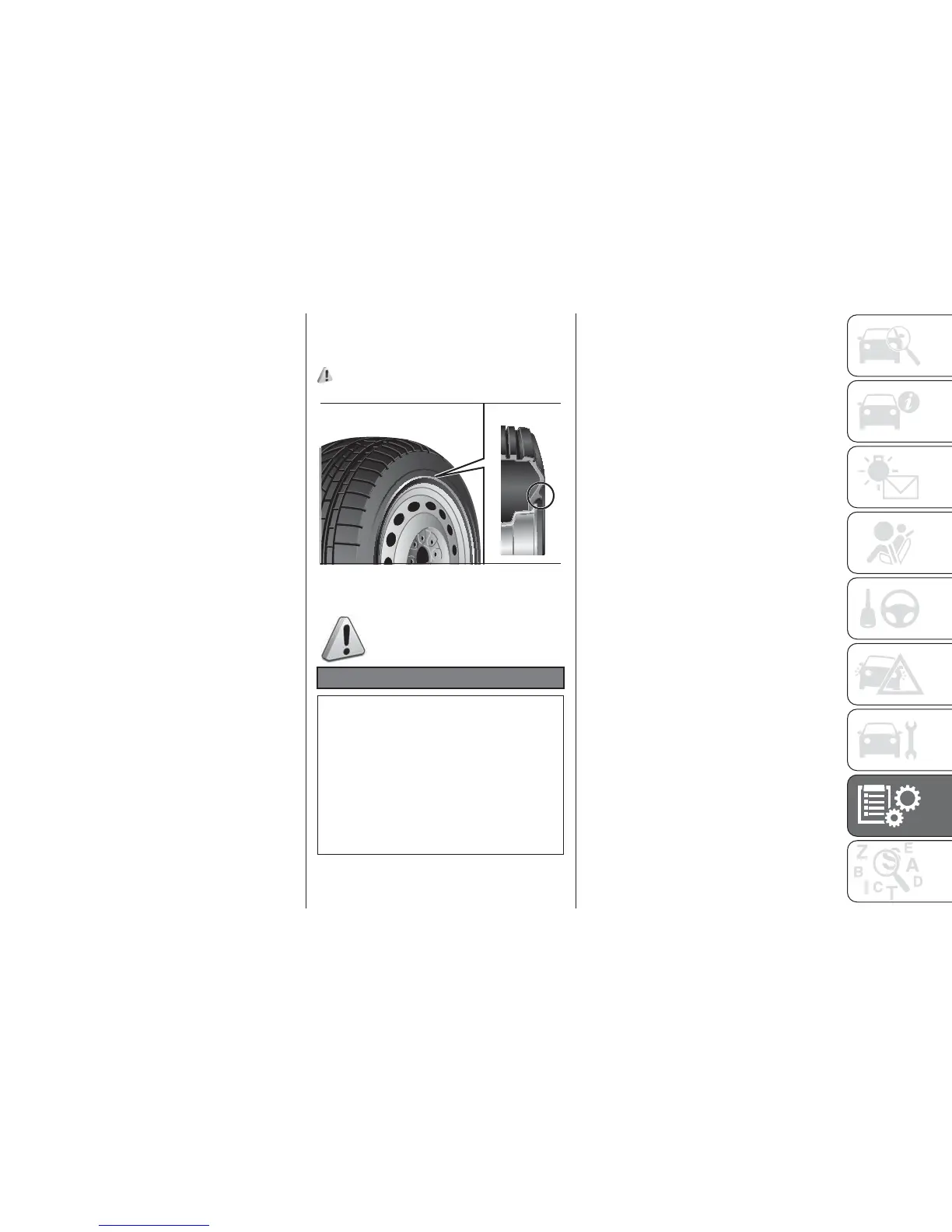

RIM PROTECTOR TYRES
206)
WARNING
206) Do NOT fit hub caps when
using integral caps fixed (with
springs) to the steel rim and
aftersale tyres provided with Rim
Protector fig. 257. The use of
unsuitable tyres and hub caps
may cause sudden loss of tyre
pressure.
CORRECT READING OF
THE RIM CODE
Example: 6J x 15 ET 43
(see fig. 256)
6 rim width in inches (1).
J rim drop centre outline (side
projection where the tyre bead rests)
(2).
15 rim fitting diameter in inches
(corresponds to the diameter of the
tyre to be mounted) (3 = Ø).
ET 43 wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line).
257
F1A0248
