Fiat Ducato - Main Beam Headlights

SIDE LIGHTS/DAYTIME
RUNNING LIGHTS (LEDs)
These are LEDs. For replacement,
contact a Fiat Dealership.
SIDE LIGHTS/DAYTIME
RUNNING LIGHTS
To replace the bulb, proceed as follows:
❒ remove the protective rubber cover
A fig. 206;
❒ turn the bulb holder B fig. 207
anticlockwise;
❒ extract the bulb by pulling and
replace it;
❒ remove the bulb by pushing it slightly
and turning it anticlockwise (bayonet
mount);
❒ refit the bulb holder B by turning it
clockwise and making sure that it
locks correctly
❒ refit the protective rubber cover A fig.
206.
MAIN BEAM HEADLIGHTS
To replace the bulb, proceed as
follows:
❒ remove the protective rubber cover C
fig. 206;
❒ release the bulb holder A fig. 208
from the side clips B and remove it;
❒ disconnect the electrical connector;
❒ fit the new bulb, ensuring that the
outline of the metal part coincides
with the grooves on the curve of the
headlight, pressing to engage it
with the side clips;
❒ reconnect the electrical connector;
❒ refit the protective rubber cover C fig.
206.
DIPPED HEADLIGHTS
With incandescent bulbs
To replace the bulb, proceed as follows:
❒ remove the protective rubber cover
B fig. 206;
❒ release the bulb holder A fig. 209
from the side clips B and remove it;
❒ disconnect the electrical connector;

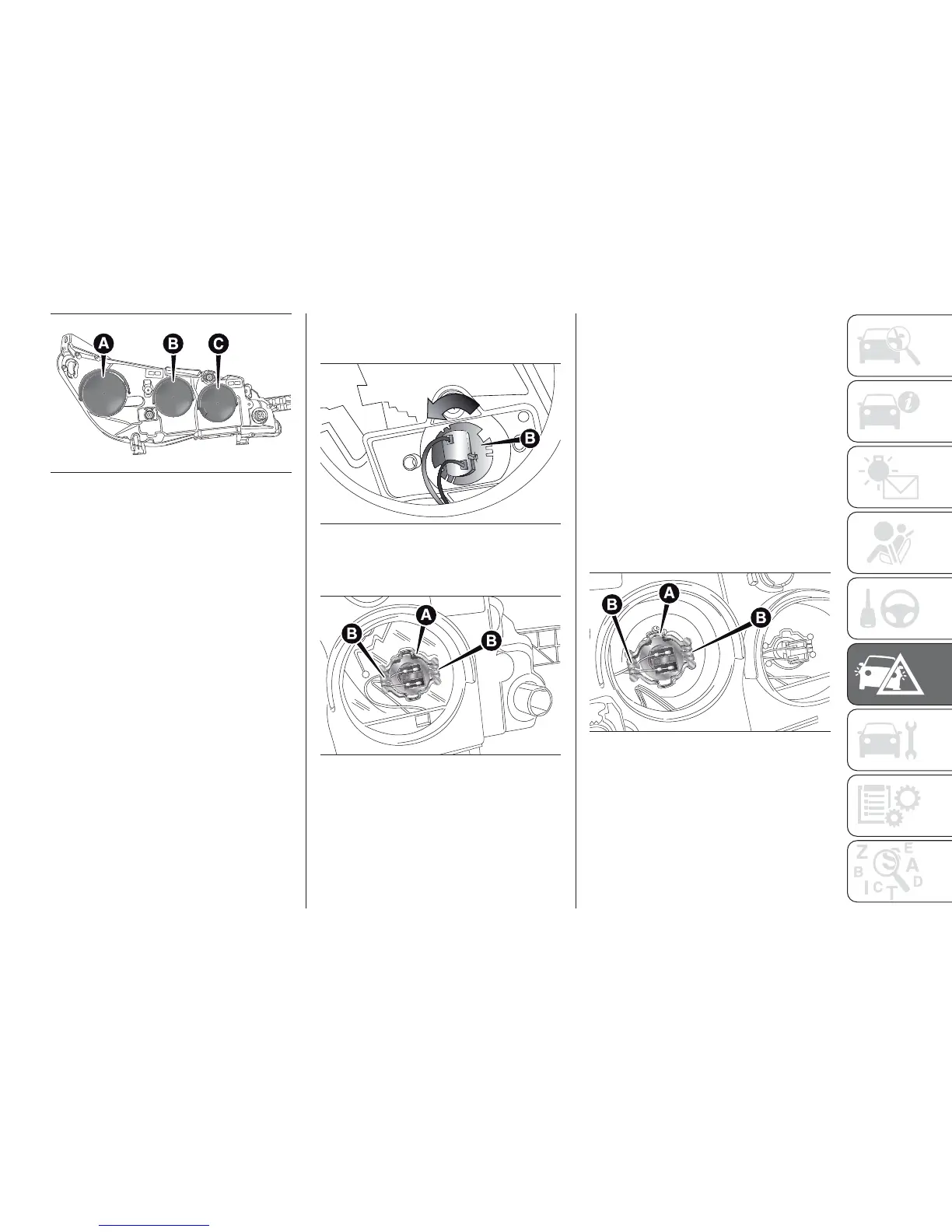

206
F1A0314
207
F1A0386
208
F1A0315
209
F1A0316
