❒ fit the new bulb, ensuring that the
outline of the metal part coincides
with the grooves on the curve of the
headlight, pressing to engage it
with the side clips;
❒ reconnect the electrical connector;
❒ refit the protective rubber cover B fig.
206.
DIRECTION INDICATORS
To replace the bulb, proceed as follows:
❒ remove the protective rubber cover
A fig. 206;
❒ turn the bulb holder B fig. 210
anticlockwise;
❒ extract the bulb by pulling and
replace it;
❒ remove the bulb by pushing it slightly
and turning it anticlockwise (bayonet
mount);
❒ refit the bulb holder B by turning it
clockwise and making sure that it
locks correctly
❒ refit the protective rubber cover A fig.
206.
Side
To change the bulb, proceed as follows
fig. 211:
❒ move the mirror manually to permit
access to the two fixing screws A;
❒ using the Phillips screwdriver
provided, undo the screws
and extract the bulb holder assembly,
releasing it from the teeth;
❒ undo the bulb and replace bulb B,
turning it anticlockwise.
FOG LIGHTS
(for versions/markets, where provided)
To replace the front fog light bulbs,
proceed as follows:
❒ steer the wheel completely inwards;
❒ undo the screw A and remove the
flap B fig. 212;
❒ adjust the catch C fig. 213 and
disconnect the electrical connector
D;
❒ turn and remove the bulb holder E;
❒ release the bulb and replace it;
❒ refit the new bulb and carry out the
procedure described previously in
reverse.

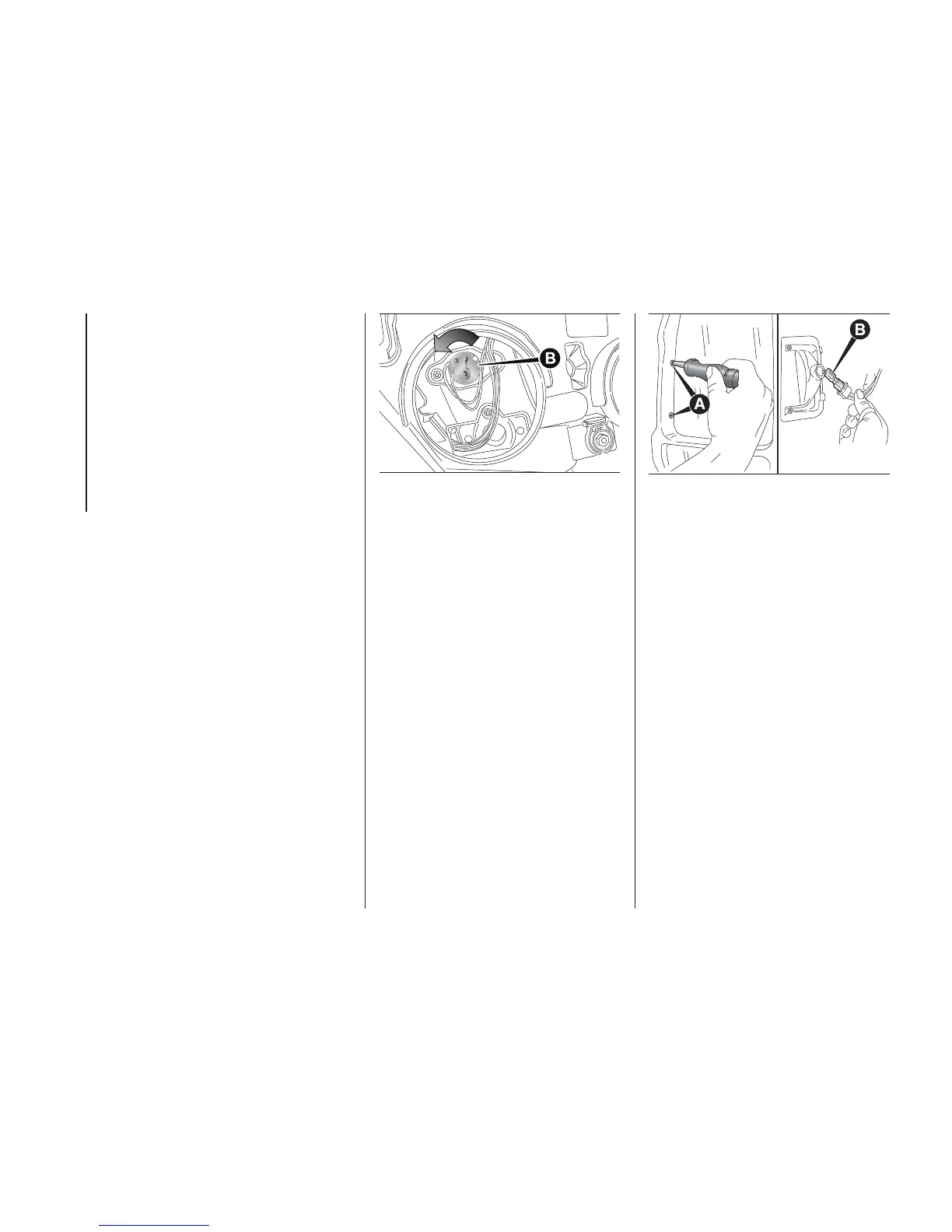

210
