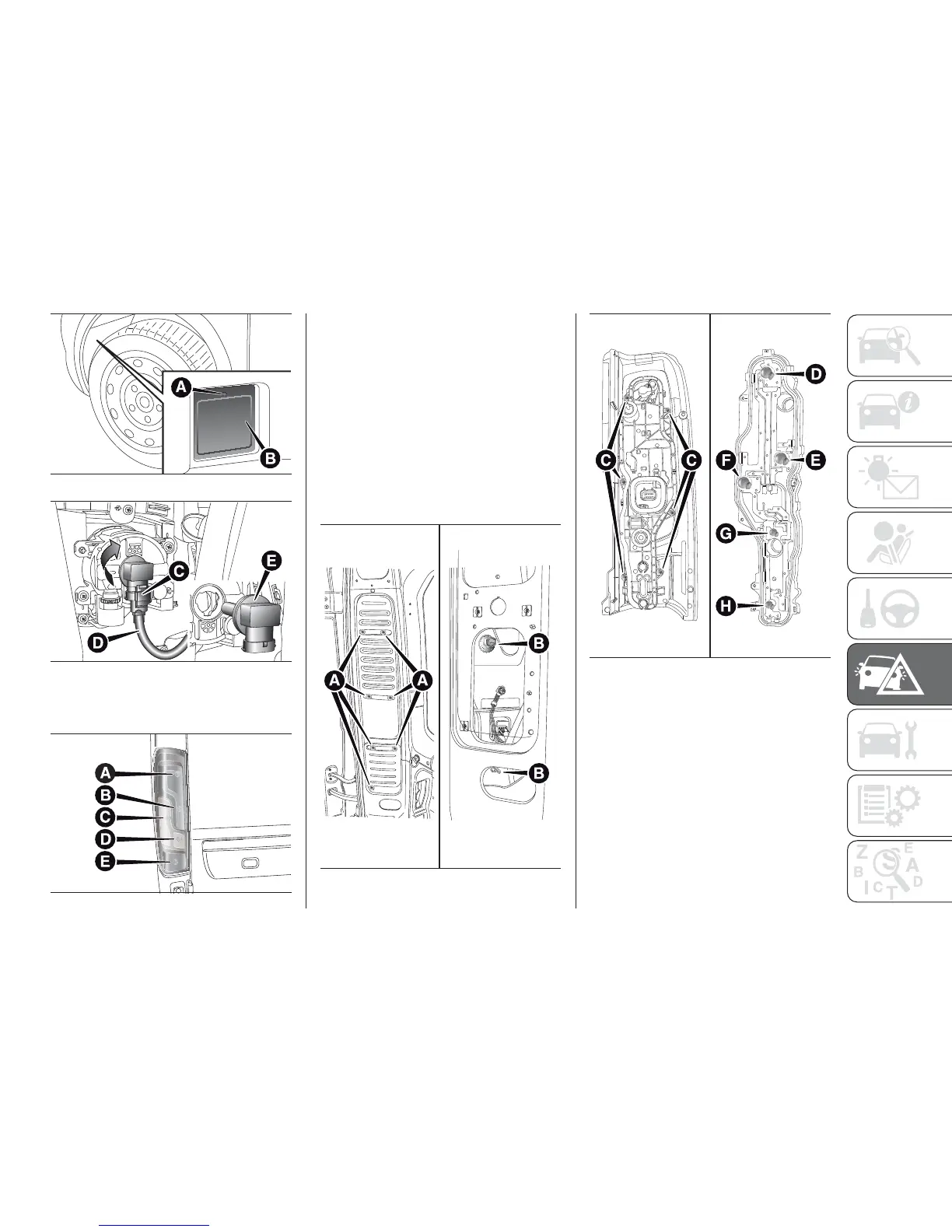

REAR LIGHT CLUSTERS
The bulbs are arranged inside the light
cluster as follows fig. 214:
A brake/side lights
B side light
C direction indicators
D reverse lights.
E rear fog lights
To change the bulb, proceed as follows
fig. 215, fig. 216:
❒ open the rear wing door.
❒ undo the 7 fixing screws A of the
plastic cover;
❒ undo the two fixing screws B;
❒ extract the unit outwards and
disconnect the electrical connector;
❒ unscrew the screws C using the
screwdriver provided and remove the
bulb holder;
212
F1A0361
213
F1A0362
214
F1A0318
215
F1A0319
216
F1A0320
219
