DOC NO. 81009 5 OF 9 Rev A 10/03
Electrical Installation
Wire sizes recommended by National Electrical Code, Minimum wire temperature rating 90C.
Generator
Model
Wire Gauge Breaker Size KW
FSC 30 10 20 3.0
FSC 50 10 30 5.0
FSC 70 8 40 7.0
FSC 90 8 50 9.0
1. Turn off all electricity to the working area at the main breaker panel.
2. Connect 208/240-volt AC electrical lines to wires labeled 1 & 2 on generator. (See figure 3)
NOTE: All electrical wiring must be done per local electrical codes.

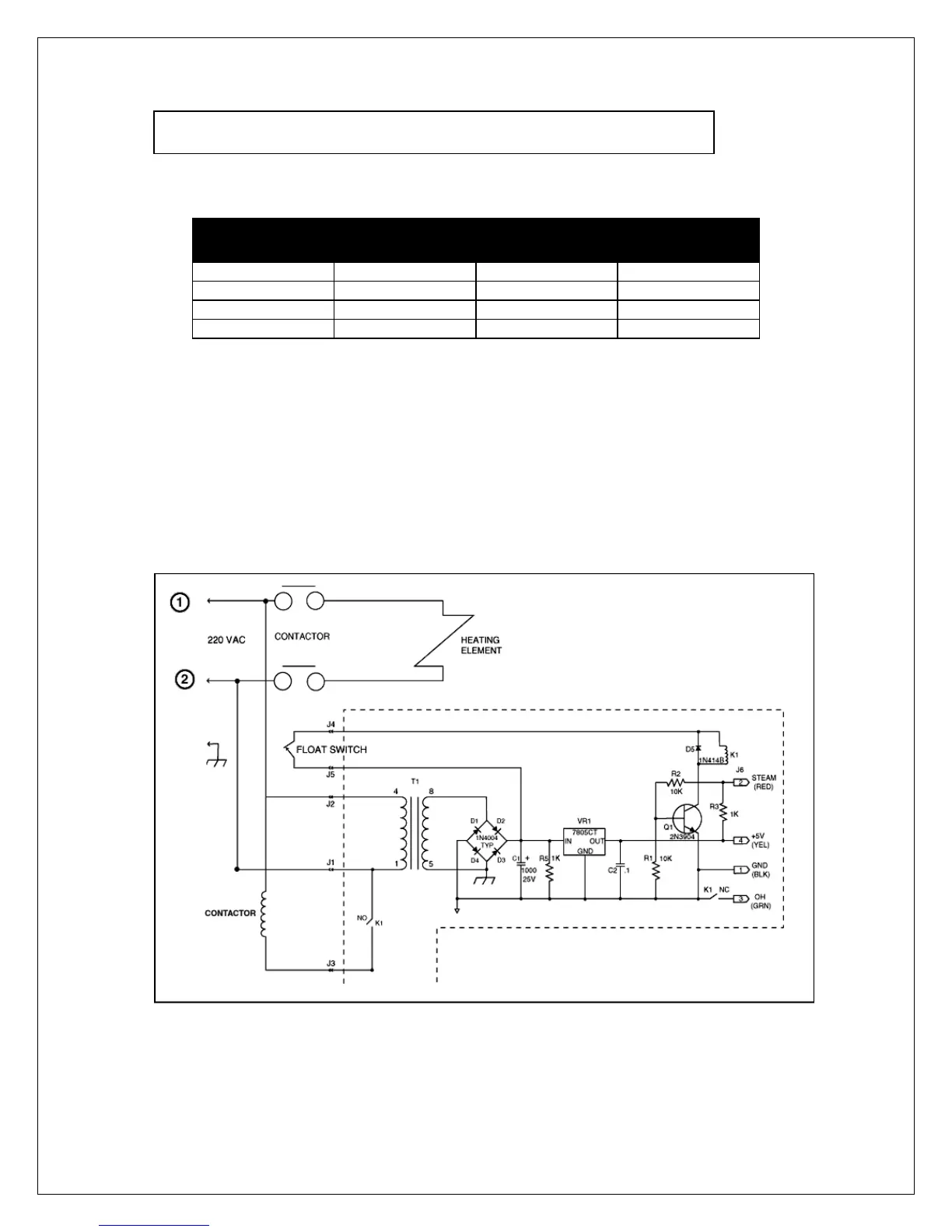

Figure 3
