Fiat NUOVA PANDA - Electrical System; Engine Compartment Fuse Box

NUOVA PANDA
Electrical system

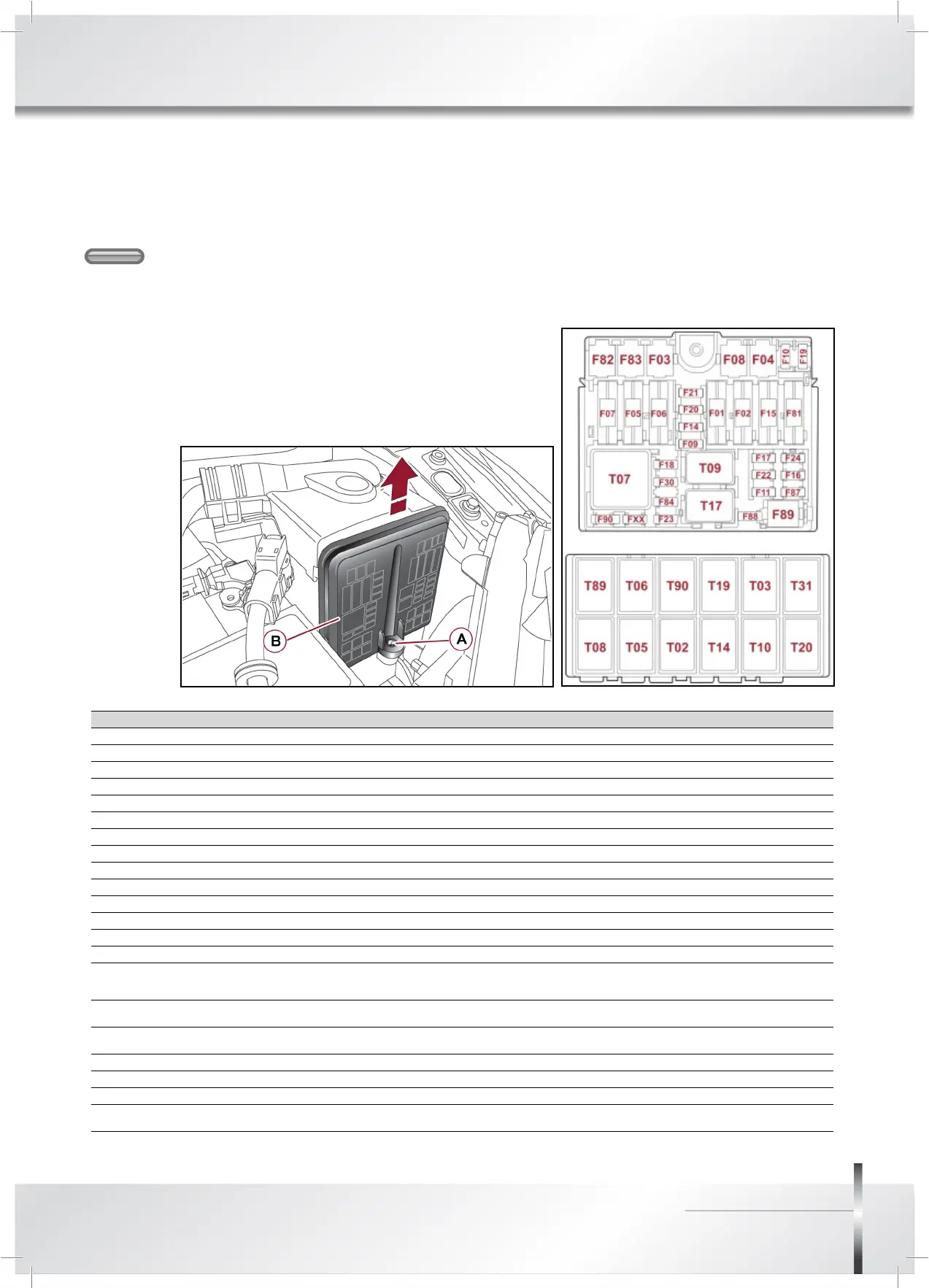

2.1 Engine compartment fuse box
2. Electrical system
User Fuse Ampere
Body computer node F01 60
Heated diesel filter (1.3 MJet version) F02 50
Ignition switch F03 20
Braking System Node (pump) F04 40
Electric steering node F05 70
Engine dual speed cooling fan (low speed) (versions with air conditioner/climate control system) F06 30
Engine single speed cooling fan (versions with heater) F06 20
Engine dual speed cooling fan (high speed) (versions with air conditioner/climate control system) F07 40
Passenger compartment air fan F08 40
Fog lights F09 15
Acoustic warning F10 15
Engine management system (secondary loads) F11 10
Main beam headlights F14 15
Heated windscreen F15 70
Engine Management Node / Robotised Gearbox Node / Relay switch T10 for start-up management with Start&Stop system
from NBC (0.9 TwinAir 65/85 HP and 1.3 MJet) versions / Relay switch T09 for engine management system (main relay)
(1.2 8V and LPG version) / Methane injector supply relay switch (CNG version)
F16 7,5
Engine management system (primary loads) (0.9 TwinAir 65/85 HP versions) / Engine Management Node (1.2 8V version)
/ LPG control unit (control unit power supply) / Petrol injectors (CNG version)
F17 10
Engine Management Node / Engine management system relay switch T09 (main relay) (0.9 TwinAir 65/85 HP and 1.3
MJet versions)
F18 7,5
Air conditioning compressor F19 7,5
Current socket/cigar lighter F20 15
Fuel pump F21 15
Engine management system (primary loads) (1.2 8V version) / Engine Management Node (0.9 TwinAir 65/85 HP and 1.3
MJet versions) / LPG gas control unit (injector supply) / Engine Management Node (CNG version)
F22 15
