Fiat NUOVA PANDA - Dashboard Fuse and Relay Assignments

NUOVA PANDA
Electrical system

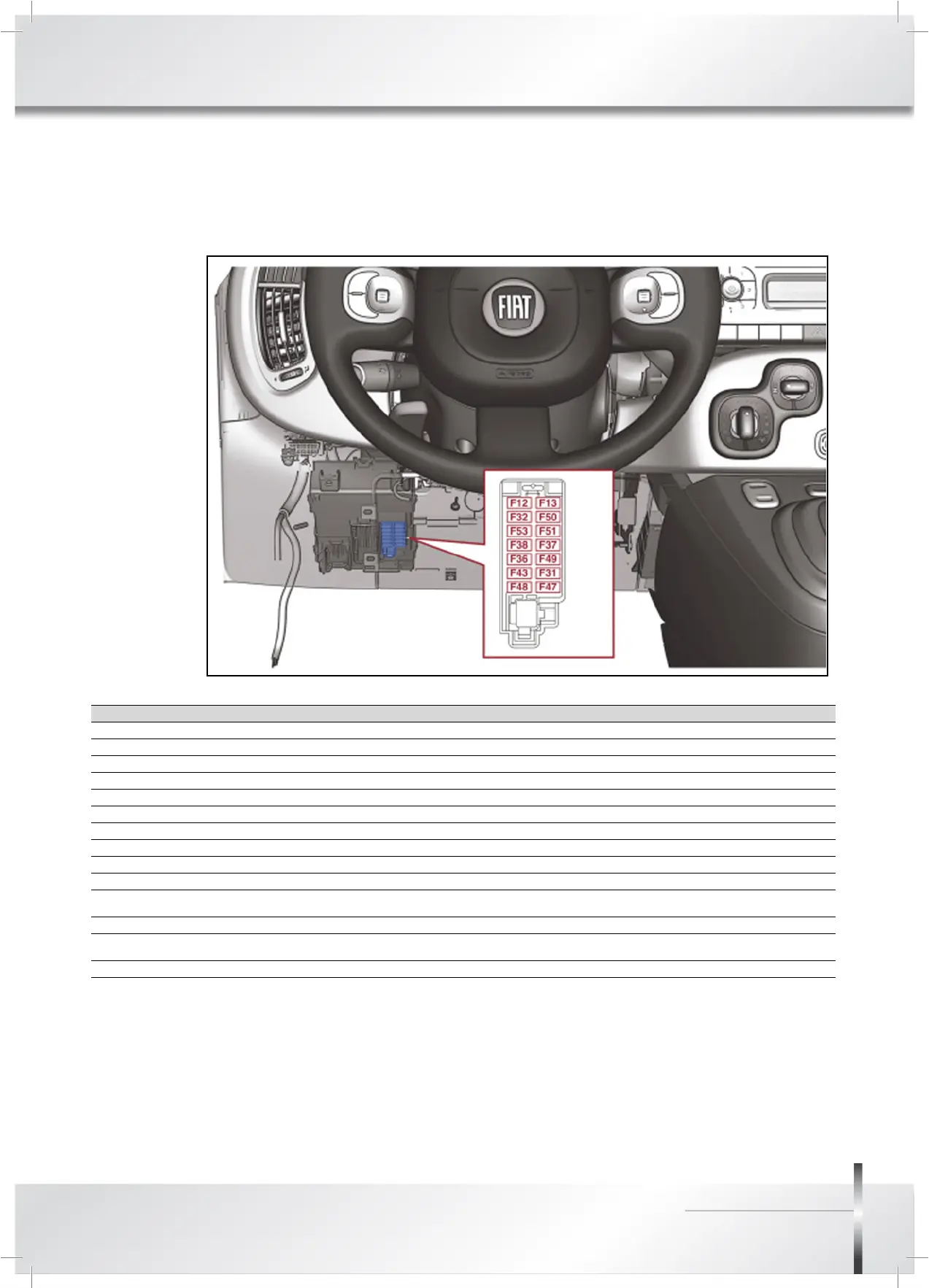

2.2 Dashboard
User Fuse Ampere
Free F12 -
INT supply for Headlight Alignment Corrector F13 5
INT/A power supply for power socket/cigar lighter F31 5
Free F32 -
+30 power supply for Convergence Node, Climate Control System Node, diagnosis socket, voltage stabiliser F36 10
INT power supply for brake pedal switch (Normally Open contact), Instrument Panel Node F37 7,5
Door central locking F38 20
+30 supply for two-way windscreen/rear window pump F43 20
Driver's front electric window F47 20
Passenger side front electric window F48 20
INT supply for dashboard control lighting, infotelematic accessories (I-port), Parking Sensor Node, removable roof light
(VAN versions), robotised gearbox lever assembly, City Brake Control system (LSCM), heated seats
F49 7,5
INT power supply for airbag Node F50 7,5
INT power supply for Radio Receiver Node, voltage stabiliser, Convergence Node, Climate Control Node, brake pedal
switch (NC contact), clutch pedal switch, electric sun roof, reverse light switch (versions with robotised gearbox only)
F51 5
+30 power supply for Instrument Panel Node F53 7,5
