❒ turn the bulb holder C anticlockwise,
extract the bulb and replace it;
❒ refit the bulb holder C in the lens and
turn it clockwise;
❒ refit the unit making sure that the
internal clip B clicks into position.
FOG LIGHTS
(for versions/markets, where provided -
except Panda Cross versions)
To replace the bulb, proceed as follows:
❒ steer the wheel completely inwards,
adjust the screws A fig. 96 and remove
the flap B;
❒ adjust the clip C fig. 97 and
disconnect the electrical connector D;
❒ rotate and remove the bulb holder
E, release and replace the bulb;
❒ refit the new lamp and carry out the
procedure described previously in
reverse.
FOG LIGHTS
(Panda Cross versions)
To change the fog light bulb, proceed
as follows:
❒ steer both the wheels completely,
loosen the screws A fig. 98 and remove
the guard flap B;
❒ locate the fog light unit, rotate it
anticlockwise by a quarter of a turn and
remove it;
❒ lift the lever A fig. 99 and disconnect
the connector B from the bulb-bulb
holder assembly C;
❒ replace the bulb-bulb holder
assembly C;
❒ reconnect the assembly to connector
B, reposition assembly C in its housing
by rotating it clockwise by a quarter of a
turn, until it clicks into the correct
position;

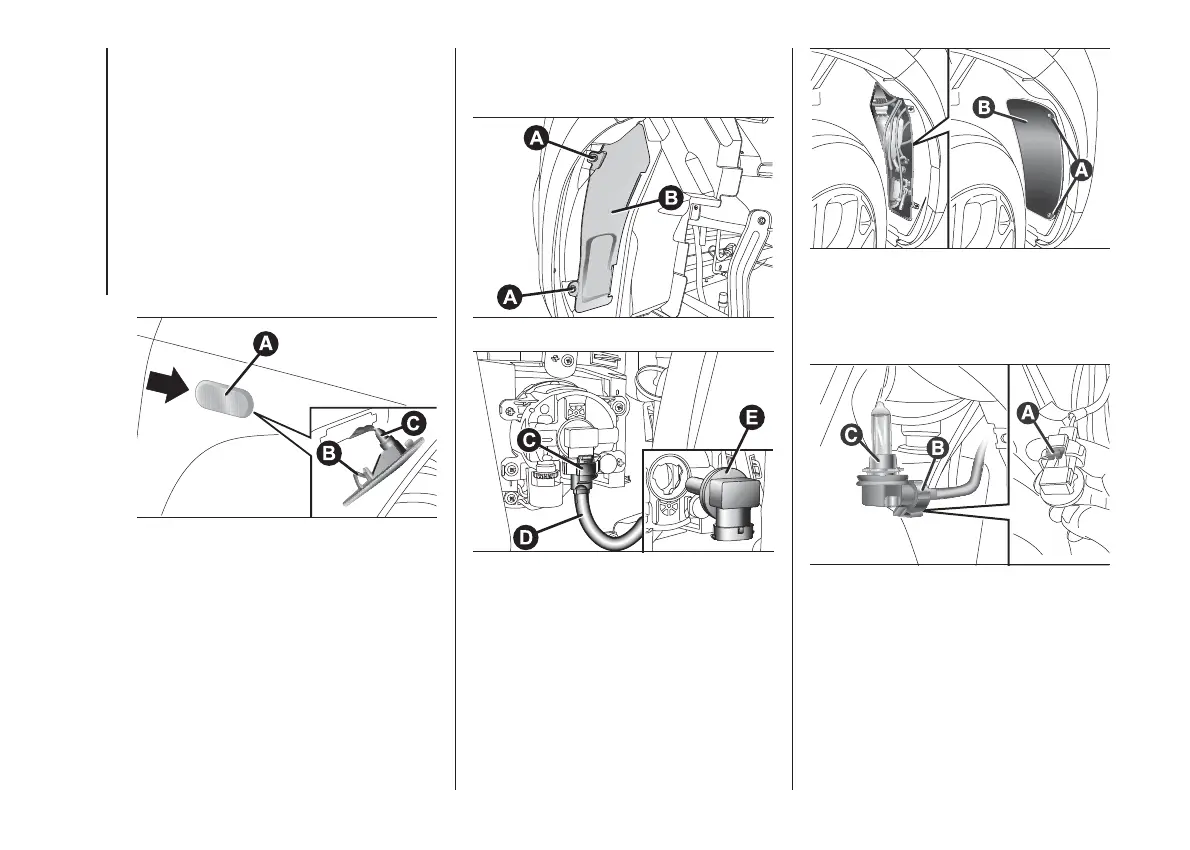

95
F1D0081
96
F1D0082
97
F1D0083
98
F1D0118
99
F1D0119
106
IN AN EMERGENCY
Side
To replace the bulb, proceed as follows:
❒ adjust the lens A fig. 95 to compress
in the clip B, then pull the cluster
outwards;
