❒ reposition the guard door B fig. 98,
taking care that the tabs are positioned
in their housings and tighten the fixing
screws A.
SIDE LIGHTS/DAYTIME
RUNNING LIGHTS (DRL)
(for versions/markets, where provided -
except Panda Cross versions)
To replace the bulb, proceed as follows:
❒ steer the wheel completely, adjust
the screws A fig. 96 and remove the
flap B;

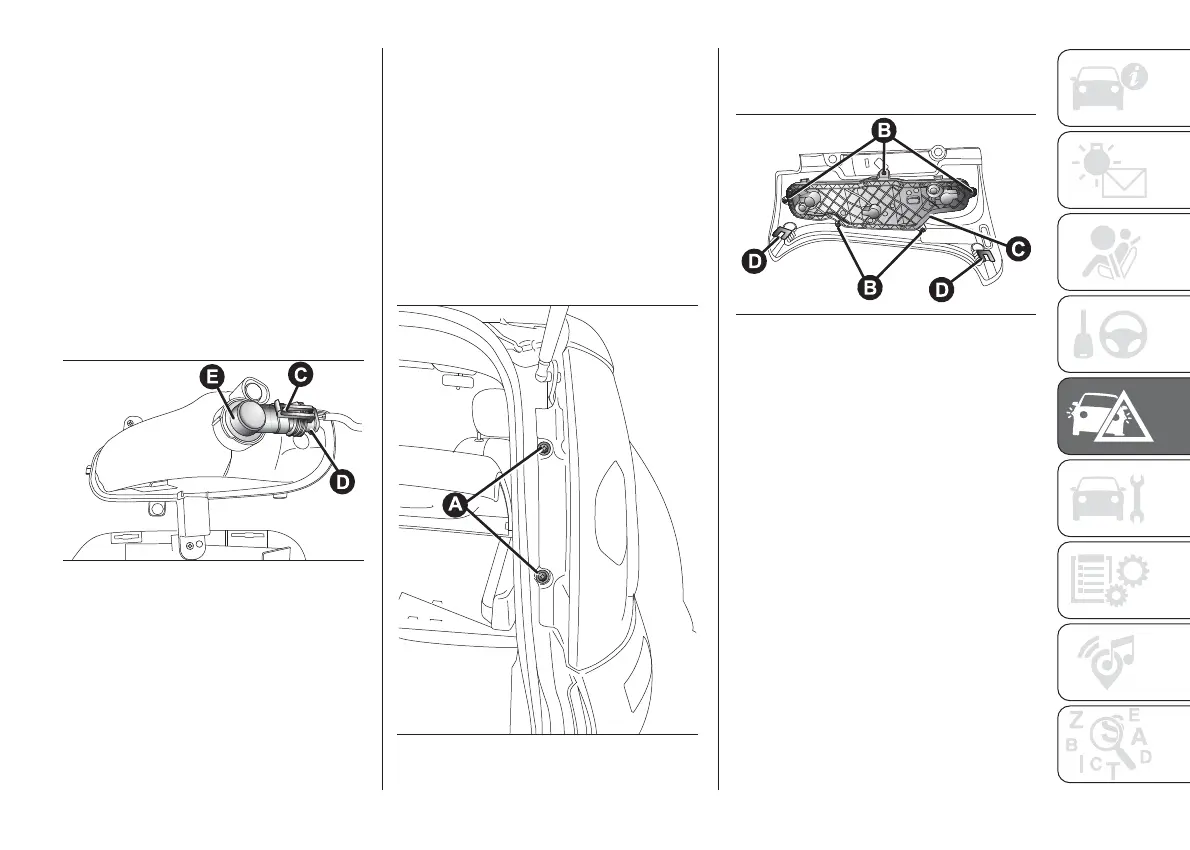

❒ adjust the clip C fig. 100 and
disconnect the electrical connector D;
❒ rotate and remove the bulb holder
E, release and replace the bulb;
❒ refit the new lamp and carry out the
procedure described previously in
reverse.
DAYTIME RUNNING
LIGHTS (DRL)
(Panda Cross versions)
IMPORTANT To change LED DRLs
contact a Fiat Dealership.
REAR LIGHT CLUSTERS
These contain the bulbs for the side
lights, brake lights and direction
indicators.
To replace the bulb proceed as follows:
❒ undo the two screws A fig. 101
from their seats, pull gently outwards
until releasing the whole headlight from
the two clips (press-fitted D fig. 102 )
and release the connector;
❒ refit the new lamp and carry out the
procedure described previously in
reverse.
100
F1D0084
101
F1D0085
107
❒ undo the five screws B from their
seats and remove the bulb holder C;
❒ remove the bulbs, pushing them
slightly and turning them anti-
clockwise;
102
F1D0086
