Fiber Options S711D - Module Interfaces and Dimensions; Rackmount and Standalone Interfaces; Rotary Switch Data Select Settings; Module Physical Dimensions

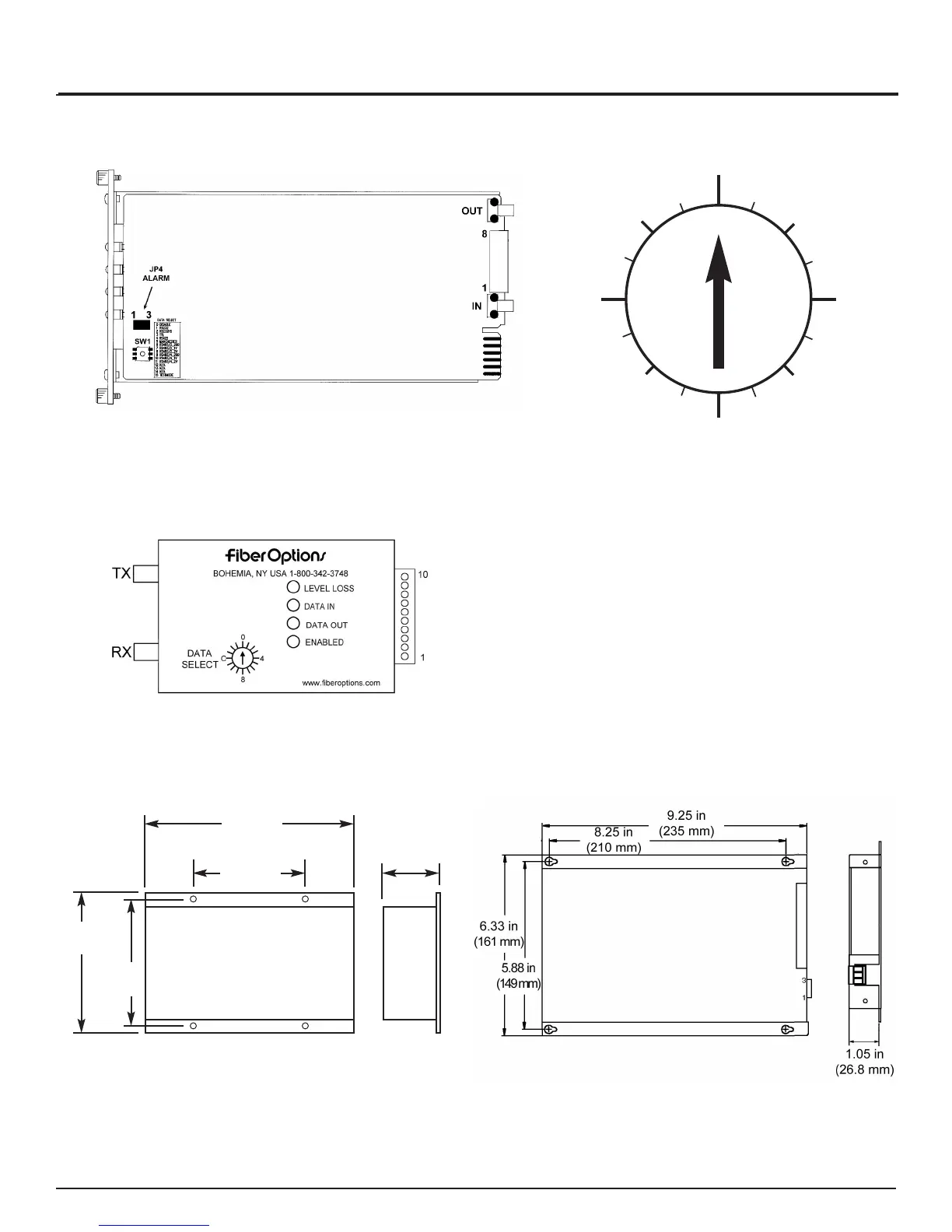

S711D & S7711D - CONNECTORS, JUMPERS, SWITCH SETTINGS, DIMENSIONS
1.1 in
(27.9 mm)
2.56 in
(65.0 mm)
2.81 in
(71.4 mm)
2.0 in
(51.8 mm)
3.75 in
(95.3 mm)
FIGURE 3: CONNECTOR, SWITCH, AND LED LOCATIONS
STANDALONE MODULES
FIGURE 2: CONNECTOR, SWITCH, AND LED LOCATIONS
RACKMOUNT CARDS
FIGURE 5: 2-FIBER STANDALONE MODULES FIGURE 6: SINGLE-FIBER STANDALONE MODULES
FIGURE 4: ROTARY SWITCH SETTINGS
(SW1 OR DATA SELECT):
Setting Mode
0 Disable (factory preset)
1 RS232 (3-wire)
2 RS232 + handshake (5-wire)
3 TTL
4 RS422
5 Manchester/Biphase
6 RS485 2-wire standard
7 RS485 2-wire 1V
8 RS485 2-wire 2V
9 RS485 4-wire standard
A RS485 4-wire 1V
B RS485 4-wire 2V
C,D,E Not Used
F Test Mode
0
E
F
D
1
2
3
5
6
7
8
C
B
A
9
4
S711D & S7711D Instruction Manual
2
