page 5
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire
®
Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.

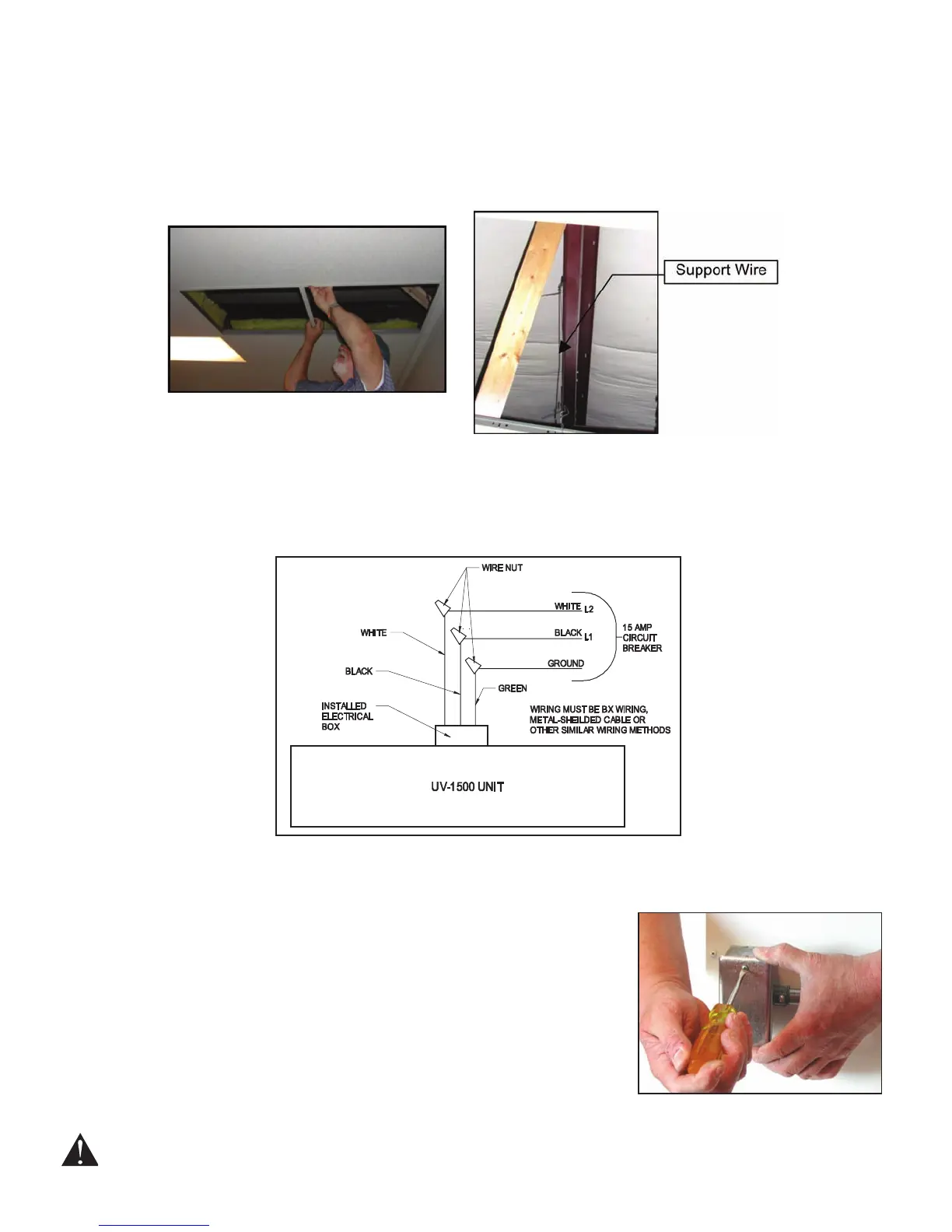

Install eyelet screws or other appropriate anchors into the ceiling joists above the location where the unit 9.
will be installed. If installing the UV-1500C into 4' x 2' tile grid, install an additional suspended ceiling
tee bracket into the ceiling grid to form a 2' x 2' tile location. (See Figure 13)
Install the UV-1500C into the suspended ceiling grid then install support wires (16 gauge wire) or other 10.
suspended ceiling support method between the installed ceiling anchors and the four mounting brackets
on the back of the UV-1500C. (See Figure 14)
Wire the UV-1500C in accordance with the National Electrical Code, manufacturer’s recommendations 11.
and/or applicable local codes. UNIT MUST BE GROUNDED. Check ground circuit to make certain that
the unit has been properly grounded. The wiring should be protected by an over current circuit device
rated at 15 amperes. Refer to Diagram A for wiring.
Place cover over conduit box. (See Figure 15)12.
Apply power to the UV-1500C. Turn the speed control knob clockwise 13.
to turn on the unit and adjust the motor/fan speed control to the
desired airflow. After the fan has started the LED light will show a
continuous “GREEN” color indicating proper unit operation.
Diagram A
Figure 15
Figure 14
Figure 13
