WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire
®
Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
Determine the type of duct you have. 2.
IF YOU HAVE FLEX DUCT
For installations on duct systems with a metallic main duct and flex duct branches, follow the instructions in
figure 2A below.
IF YOU HAVE METAL DUCT:
Apply supplied wet and stick mounting template to air duct in either a vertical or horizontal position. a.
(See Figure 2B)
Drill b.
1
⁄8” diameter mounting holes at positions indicated on template.
Cut out rectangular hole on template using a pair of tin snips or jigsaw. (See Figure 2B) Remove template.c.

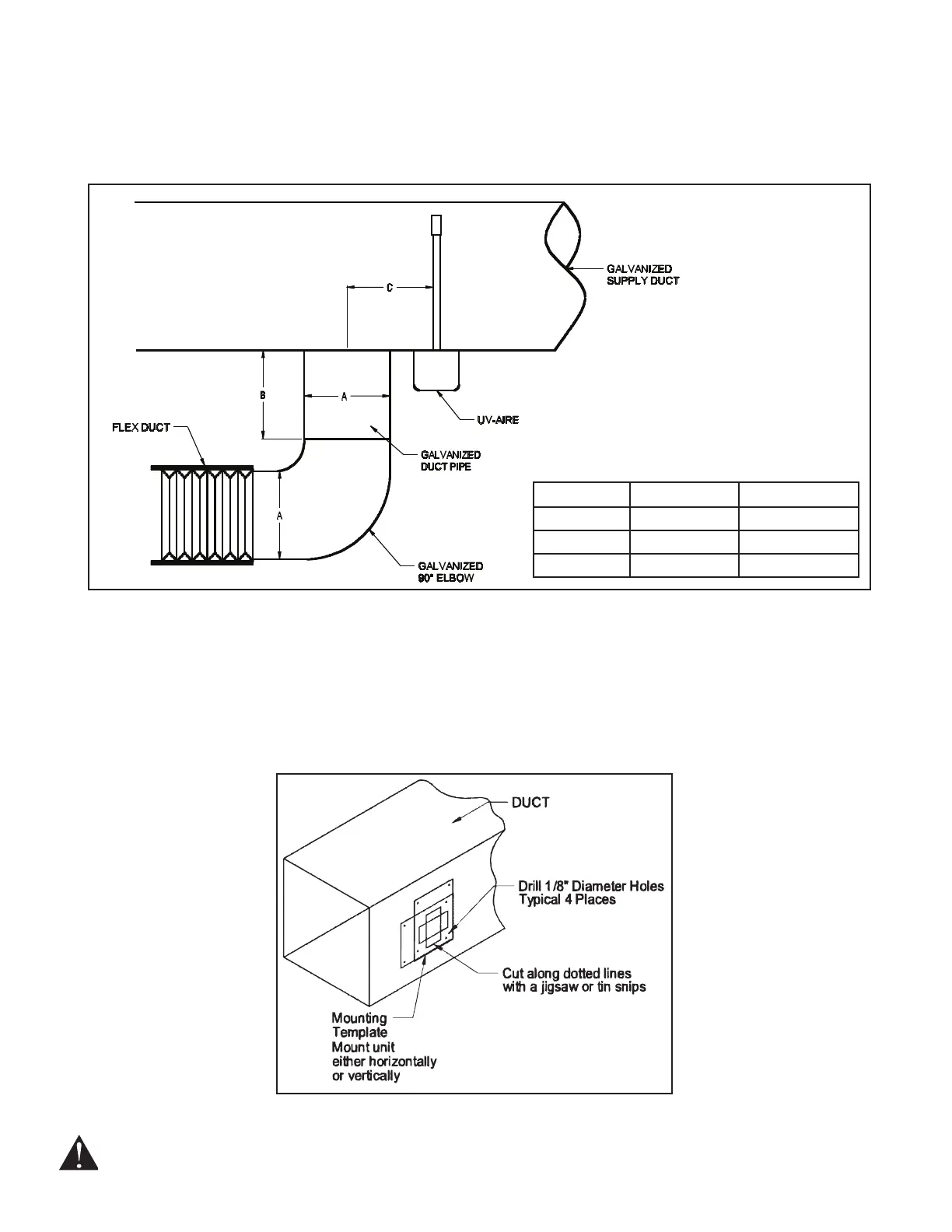

Figure 2B
"A" (DUCT Ø) "B" (EXT. LENGTH) "C" (MIN DISTANCE)
6" 6" 6"
8" 8" 8"
10" 10" 10"
Figure 2A
