PETROL BRUSH CUTTER USER'S MANUAL
9
4. DESCRIPTION OF THE MACHINE

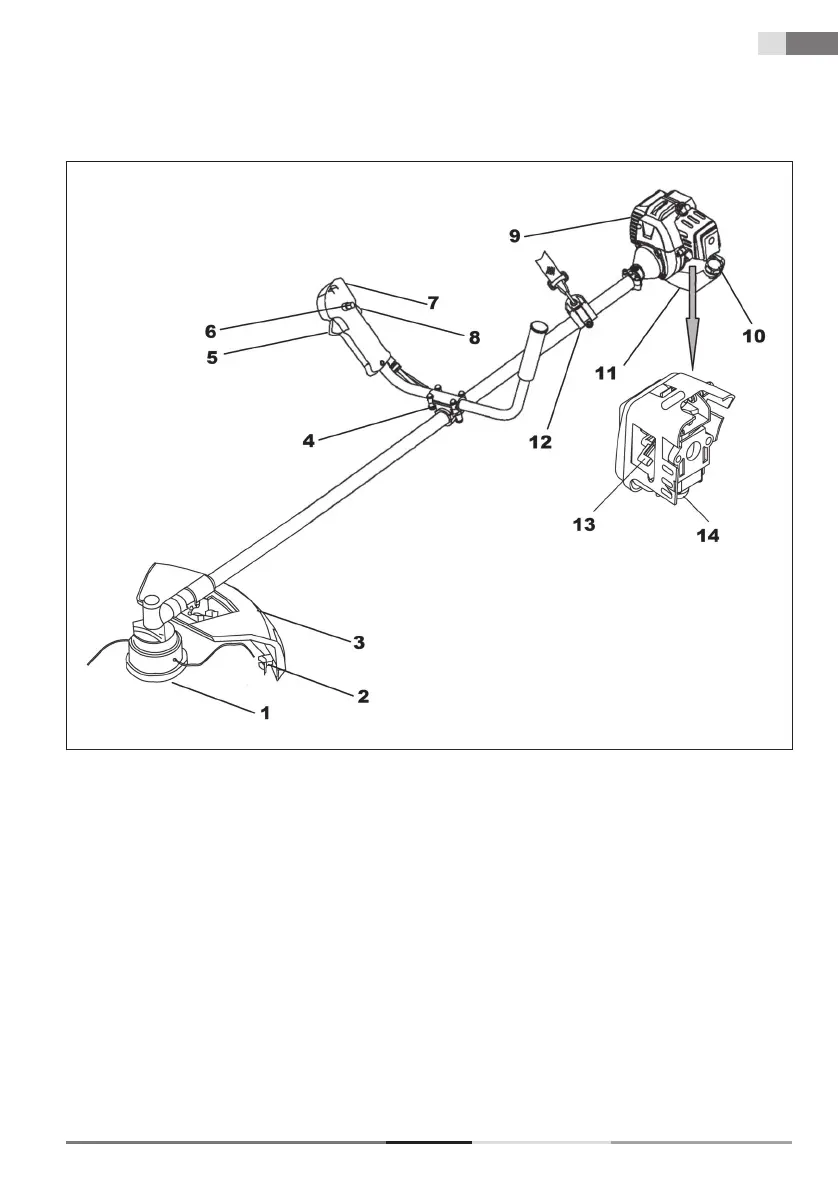

Description of the machine
1. Semi-automatic string trimmer head
2. Trimmer line cutter
3. Protective safety guard
4. Handle mount
5. Throttle trigger
6. Half throttle lock
7. Power switch
8. Throttle safety switch
9. Engine
10. Fuel tank cap
11. Fuel tank
12. Shoulder strap hitch
13. Choke control lever
14. Fuel primer bulb
Included contents:
String trimmer head, metal three tooth blade, shoulder strap, calibrated fuel mixing container, spare spark plug,
hex key 4mm, hex key 5mm, 4x hex screw 5mm, 4x hex screw 4mm with nut (installed on the plastic guard
mount), 2x draw bands, screwdriver, wrench 8/10, tubular wrench with a Philips screwdriver.
