Fieldpiece SC76 User Manual

SPECIFICATIONS
Display: LCD with a maximum read-
ing of 3400.
Analog bar graph: 34 segments with
measurements 20 times per sec-
ond.
Data Hold: Operating on all ranges
Range(RNG): Operating on all autor-
anges
Overrange: "OL" mark indication.
Auto power off: Approx. 10 minutes.
Measurement rate: 2 times per sec-
ond, nominal.
Operating environment: 32°F to
122°F at <70% R.H.
Storage temperature: -4°F to 140°F,
0 to 80% R.H. with battery
removed.
Accuracy: Specifications good in
ambient conditions of 73°F ±9°F,
<75% relative humidity.
Temperature Coefficient: 0.1 ×
(specified accuracy) per °F. (32°F
to 64°F, 82°F to 122°F).
Altitude: 6561.7 Feet (2000m).
Jaw opening capability: 38mm con-
ductor.
Power: Single standard 9-volt battery,
NEDA 1604, JIS 006P, IEC 6F22.
Battery life: 300 hours typical with
alkaline.
Accessories: One pair test leads,
one pair of small alligator clips, k-
type thermocouple, 9V battery
(installed), and operating instruc-
tions.
Safety: UL, CE, Cat III 600V
DC volts
Ranges: 340mV, 3400mV, 34V, 340V,
600V
Resolution: 0.1mV
Accuracy: ±(0.5% rdg + 1 dgt)
Input impedance: 3MΩ on V inputs,
10MΩ on mV input
Overload protection: 600VDC or AC
rms
Normal mode rejection ratio: >50dB
@ >49Hz
Common mode rejection ratio:
>120dB up to 1000VDC
Transient protection: 6kV for 10μ
sec
AC volts(50Hz - 500Hz)
Ranges: 3.4V, 34V, 340V, 600V
Resolution: 1mV
Accuracy: ±(2.0% rdg + 4 dgts) 50 ~
500Hz
Input impedance: 3MΩ
Overload protection: 600V DC or AC
rms
Transient protection: 6kV for 10μ
sec
AC current(50Hz - 60Hz)
Ranges: 34A, 300A
Resolution: 0.01A
DC Accuracy:
±(3.0% rdg + 5 dgts) 0 ~ 300A / 50
~ 60Hz
Overload protection: 300AAC
DC current
Ranges: 340μA, 3400μA
Resolution: 0.1μA
Accuracy: ±(1.0% rdg + 1 dgt)
Voltage burden: 1V, (8V on 3400μA
range)
Overload protection: 500VDC or AC
rms
Resistance
Ranges: 340Ω, 3.4kΩ, 34kΩ, 340kΩ,
3.4MΩ, 34MΩ
Resolution: 100mΩ
Accuracy:
±(1.2% rdg + 4 dgts) on 340Ω to
340kΩ ranges
±(1.5% rdg + 4 dgts) on 3.4MΩ
range
±(3.0% rdg + 5 dgts) on 34MΩ
range
Open circuit volts: -0.45VDC typical,
(-1.2VDC on 340Ω range)
Overload protection: 500VDC or AC
rms
Temperature
Range: -30°F ~ 1000°F, -35°C ~
600°C
Resolution: 0.1°F, 0.1°C
Accuracy: ±(1°F) 32°F ~ 120°F
±(1% + 1.5°F) -4°F ~ 750°F
±(2% + 4°F)-30°F ~ -4°F, 750°F ~
1000°F
Sensor type: K-type thermocouple
Overload protection: 60 VDC or 30
VAC rms
Diode test
Test current: Approx. 1.0mA
Resolution: 1mV
Accuracy: ±(2% rdg + 3 dgts)
Open circuit volts: 3.0Vdc typical
Audible indication: Less than 0.2V
Overload protection: 500VDC or AC
rms
Continuity
Audible indication: Less than 300Ω
Response time: 500ms
Green LED will be on continuously.
Capacitance
Range: 340μF
Resolution: 0.1μF
Accuracy: ±(3% rdg + 5 dgts)
Test frequency: 16Hz
Test voltage: <3.0V
Overload protection: 500VDC or AC
rms
Hi-V(voltage) warning
>30VAC/DC meter beeps, red LED
blinks.
Non-contact voltage
Senses voltage 24V to 600V AC
beeper chirps and big bright red LED
comes on, works when meter dial is on
any range.
www.fieldpiece.com

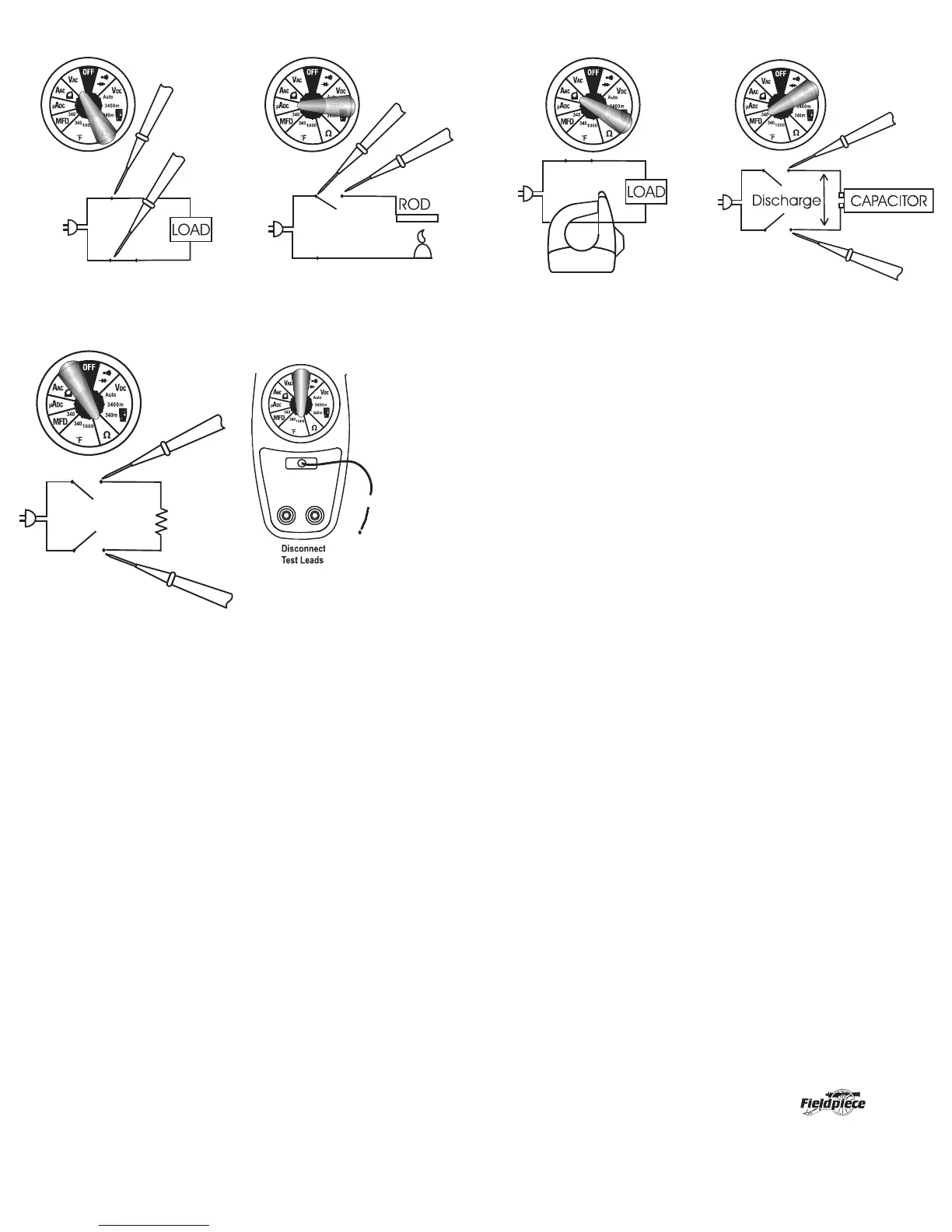

Voltage
Resistance
DC Current (μADC)
Temperature
AC Current
Selecting ranges
For DC voltage, set the meter to the
VDC parameter instead of VAC as
shown above.
For all ranges and functions choose
a range just above the value you
expect. If display reads "OL" (over-
load), select a higher range. If display
shows less than three numbers, select
a lower range for better resolution.
Capacitance
CE
This instrument complies with the
requirements of the following
European Community Directives:
89/336/EEC (Electromagnetic
Compatibility) and 73/23/EEC (Low
Voltage) as amended by 93/68/EEC
(CE Marking).
Obtaining Service
Contact Fieldpiece for a RMA num-
ber and send the meter freight prepaid
to Fieldpiece Instruments. For warran-
ty service also send proof of date and
location of purchase. The meter will be
repaired or replaced, at the option of
Fieldpiece, and returned via least cost
transportation.
Insure the
temperature
being measured
is stable.
Maintain good
contact between
the thermocouple
and what's being
measured.
Disconnect test leads from
voltage before plugging
thermocouple in.

Fieldpiece SC76 Specifications

Display

display type	LCD
analog bar graph segments	34
measurement rate	20 times per second

Operating Environment

operating temperature	32°F to 122°F
storage temperature	-4°F to 140°F
altitude	6561.7 Feet

Power

power source	9-volt battery
battery life	300 hours
auto power off	Approx. 10 minutes

Voltage Measurement

DC voltage ranges	340mV, 3400mV, 34V, 340V, 600V
DC voltage resolution	0.1mV
AC voltage ranges	3.4V, 34V, 340V, 600V

Current Measurement

AC current ranges	34A, 300A
AC current resolution	0.01A
DC current ranges	340μA, 3400μA

Resistance Measurement

resistance ranges	340Ω, 3.4kΩ, 34kΩ, 340kΩ, 3.4MΩ, 34MΩ
resistance resolution	100mΩ
open circuit volts	-0.45VDC typical

Temperature Measurement

temperature range	-30°F ~ 1000°F, -35°C ~ 600°C
temperature resolution	0.1°F, 0.1°C
sensor type	K-type thermocouple
