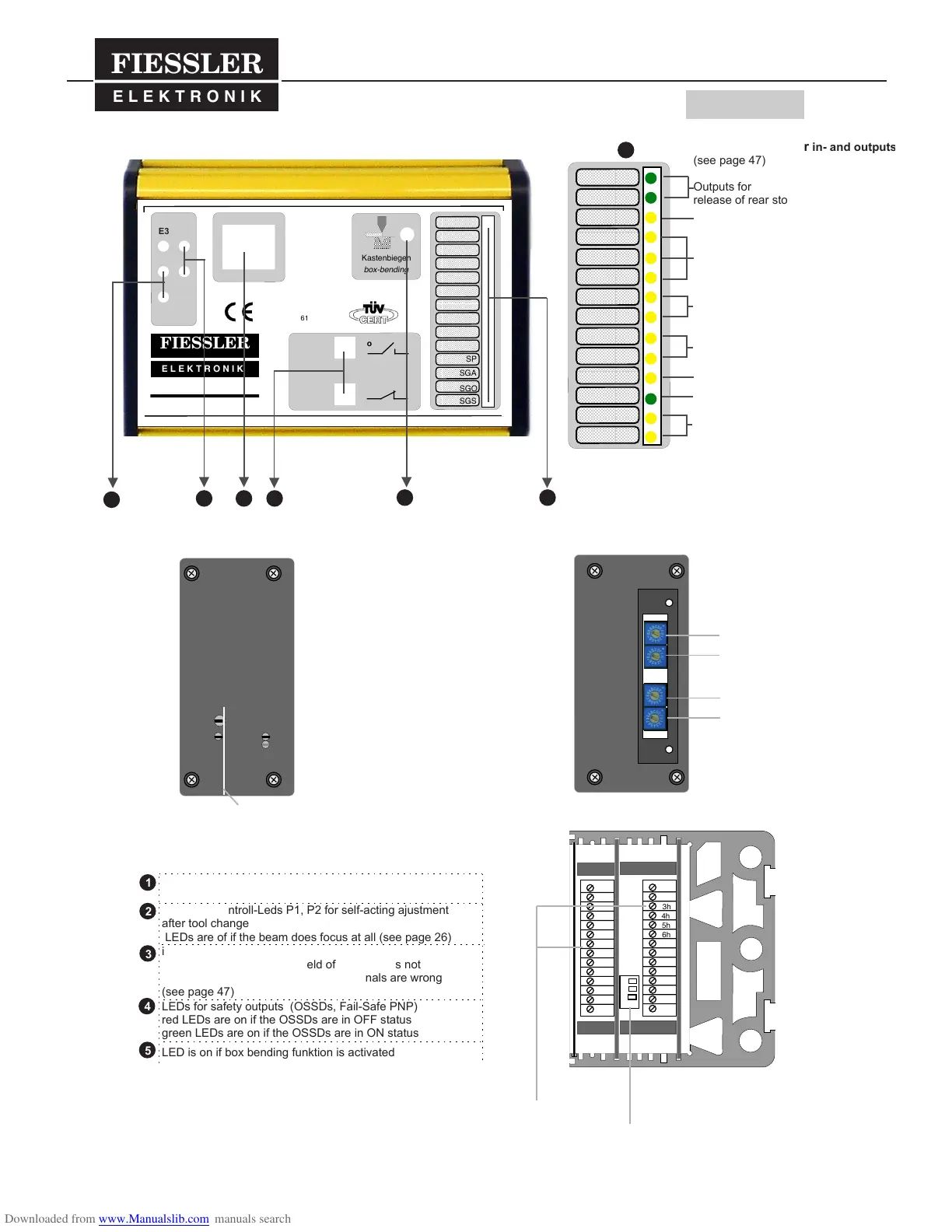

Indicator lights on Frontpanel and switches for safe operation
Doku Nr. 988 Stand 3.2.2016 / Aui
Muting
E2
E4
E6
Ausricht-
kontrollen
P1
P2
Fiessler Elektronik - Kastellstrasse 9 - D 73734 Esslingen - Tel.: 0711/9196970
Empfänger / Receiver
Typ: AKAS®-3F
OSSD1
OSSD2
OSSD1
OSSD2
Kastenbiegen
box-bending
FIESSLER
E L E K T R O N I K
off
on
Typ 4
EN 61496
RXOK2
RXOK1
NLW
NA1
NA3
NA2
FUS
FUO
EDMO
EDMS
Adjustment
view of the receiver elements
AKAS®-IIF
1.3
14v
13v
12v
11v
10v
9v
8v
7v
6v
5v
4v
3v
2v
1v
1
2
3
14h
13h
12h
11h
10h
9h
8h
7h
6h
5h
4h
3h
2h
1h
view after removing
the connection lid on
the receiver support
1
SP
SGA
SGO
SGS
RXOK2
RXOK1
NLW
NA1
NA3
NA2
FUS
FUO
EDMO
EDMS
Indicator lights for in- and outputs
(see page 47)
Outputs for
release of rear stoppers
Input for Overruntraverse controll
Inputs for control of protective grids or
doors and emergency-off circuits
Inputs for press start / stop
(release of closing stroke)
Input for stop contactor control
Input for safety point
Output for demand for slow speed
Input for position control in slow speed
hex-switch 4
hex-switch 3
hex-switch 2
hex-switch 1
(see page 45,46)
view after removing the lid
on the receiver
E2
E3
E1
bendingline
P1
P2
connector plug
dip-switches (see page 19)
ajustment controll-Leds of the receiver elements E1, E2, E3
LEDs are on if the beam does focus at all (see page 26)
ajustment controll-Leds P1, P2 for self-acting ajustment
after tool change
LEDs are of if the beam does focus at all (see page 26)
integrated mutinglamp
lamp is on if the protective field of the AKAS is not activated
lamp is flashing if EDM- or SP-input-signals are wrong
(see page 47)
LEDs for safety outputs (OSSDs, Fail-Safe PNP)
red LEDs are on if the OSSDs are in OFF status
green LEDs are on if the OSSDs are in ON status
LED is on if box bending funktion is activated
