3．Installation instructions
4.Please confirm the following items before riding: frame lock, standpipe lock and seat tube lock are locked.
5.Brake system is normal. Tires are adequately inflated. All these are important for a safe and comfortable riding.
opened
locked
open lock locked

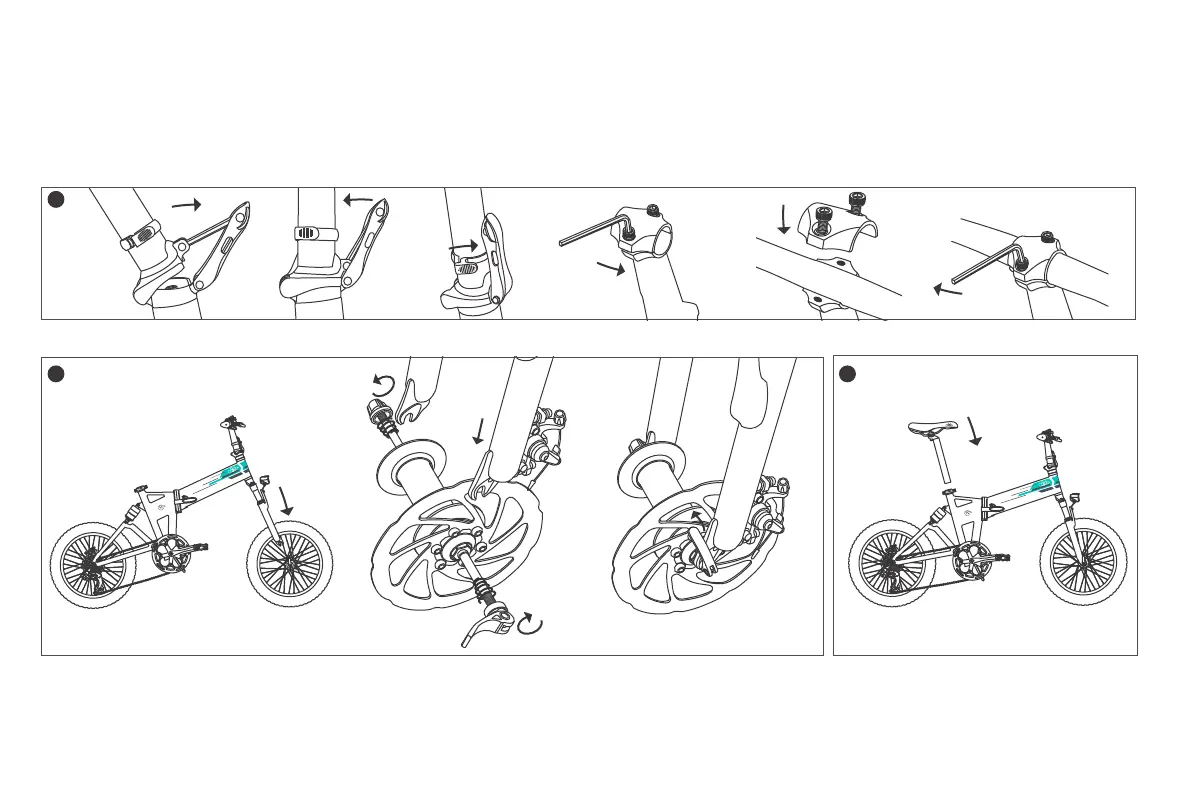

1.Fold the riser to the upper end,lock the riser folding handle,adjust the riser safety hook to the tightening state,and adjust the position of the T handle.
2.Install front wheel; First install the front wheel on the front fork and lock the front wheel with screws.
3.Open the clip on the seat tube clamp and insert the seat tube into the position within the marking line on the seat tube. Adjust the seat to the
comfortable height according to individual needs, and fasten the seat tube clip.
1
2 3
6
