- 10 - English language
Technical specifications

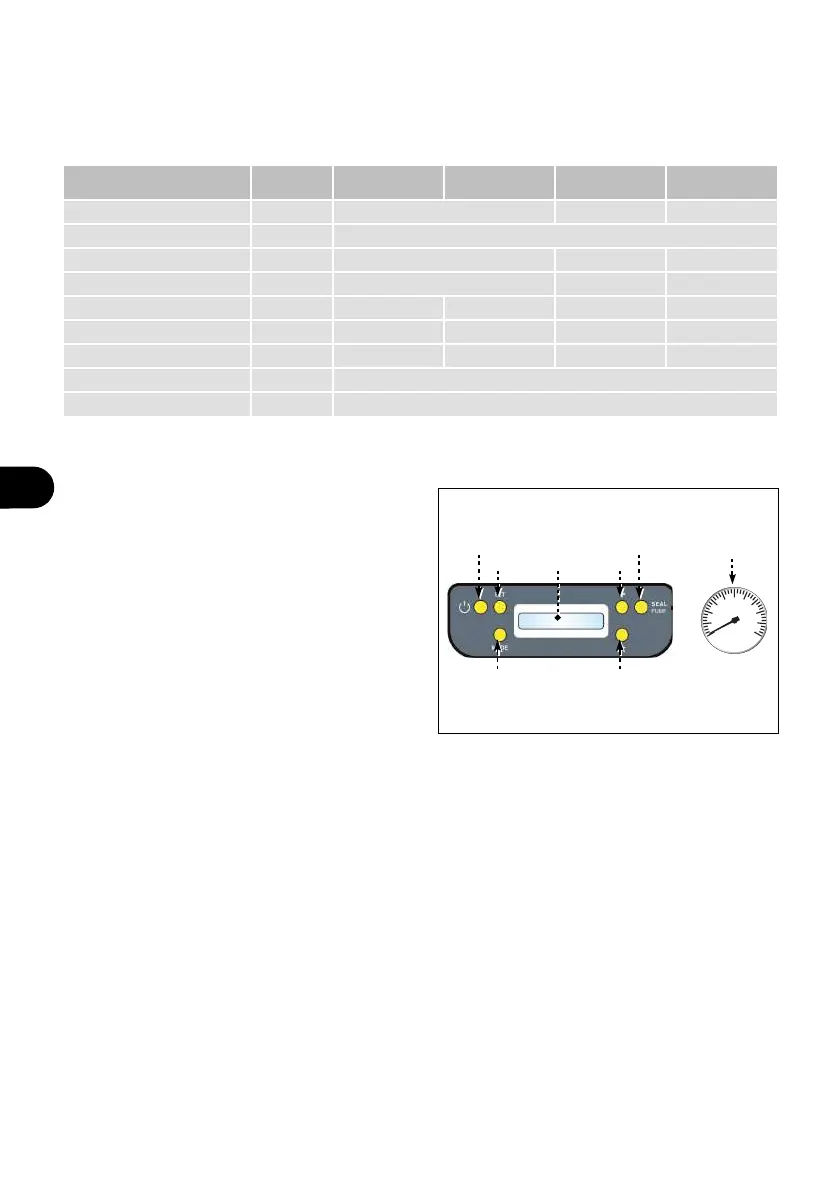

CONTROL DESCRIPTIONS
The appliance is equipped with the listed
control devices, required to run its main
functions.
A) Display: it displays warning messages
and working parameters.
B) Button: it activates and deactivates the
equipment operation.
C) Button (SET): it enables the setting up of
the temperature level (from 0 to 10) of
sealing bar.
By pressing button , while display (A)
keeps showing the welcome message, the working language can be changed.
D) Button (+): used to increase the value of the selected parameter.
E) Button (-): to decrease the value of the selected parameter.
F) Button (MODE): it selects the working mode of equipment.
Press button repeatedly until the desired mode is shown on display.
– Automatic
– Manual
– Vacuum only
G) Button (SEAL/PUMP): it activates the hermetic sealing of bags with operation of the
equipment in "manual mode".
While the equipment operates in "only vacuum mode", this button is pressed to activate
the external suction cycle.
H) Vacuum gauge: it detects the vacuum generated by the equipment inside the sags (for
model MSD/400 - MSD/500 only).
Table 1: Technical appliance specifications
Description
Unit of
measure
MSD/300P MSD/300 MSD/400 MSD/500
Power kW 0,49 0,7 0,8
Power supply V/Ph/Hz 230V/1N/50-60Hz
Length of sealing bar mm 320 420 520
Flow rate of vacuum pump m³/h 0,9 1,8 3
Appliance dimensions mm 390x310x140 390x310x200 560x290x210 600x450x250
Packaging dimensions mm 420x350x190 420x360x260 610x340x270 700x640x490
Net weight kg 4,5 7 13 26
Installation type Counter installation
Noise level dB (A) < 70
C
B G
DA
F E
H
