HP-2 / HP-4 / HP-6 Recessed or Regressed Spackle & Visible Flange Mitered Corner
Installation Instructions
HP-6 VF - 8'
ABC Corporation - A12345
HP-6-VF - 32' - S - 835 - F - 120V - SC - C1 - OBO
STARTER ID: 1
HP-6 VF - 16'
ABC Corporation - A12345
HP-6-VF - 32' - S - 835 - F - 120V - SC - C1 - OBO
JOINER ID: 2
HP-6 VF - 23'
ABC Corporation - A12345
HP-6-VF - 32' - S - 835 - F - 120V - SC - C1 - OBO
ENDER ID: 3
ABC Corporation - A12345
HP-6 VF - 32' - H - 835 - F - 120V - SC - C1
HP-6 VF - X'
ID: 1
STARTER
This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary.

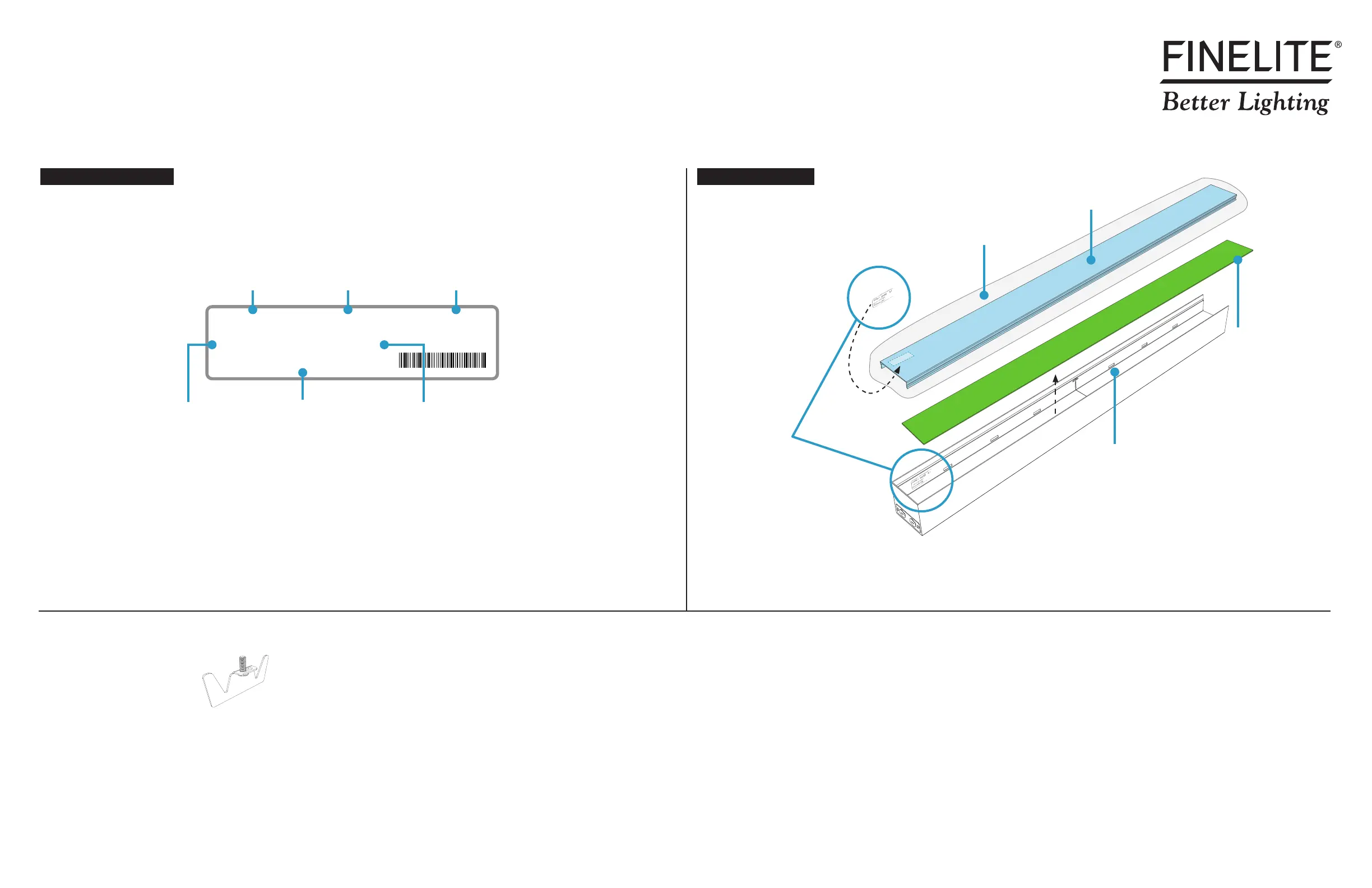

A. Identify Luminaires B. Remove Diffuser
Step 2 - Identification & Preparation
Kitted Hardware
• Identify all luminaires by their ID label that can be found on the box, the diffuser and inside the luminaire.
• NOTE: Exact location of labels in these areas may vary.
• Remove all luminaires from their box.
• Arrange luminaires in order according to ID# at their install locations.
• Refer to Record Drawings that can be found in the hardware kit.
• Carefully remove all diffusers, keeping them inside their protective bags.
• Set aside all diffusers to prevent from getting dirty or damaged.
• Ensure diffusers can be clearly identified back to its corresponding luminaire.
• CAUTION (Spackle Flange Only): Carefully remove "Mud Guards" and keep them as they will be reinstalled in Step 9, B.
Yoke Bracket
Part# 45042
#10-32 x 5/8" Screw
Part# 94144
Securing Luminaire Joints
p. 9, Step 6
Securing Corner Joints
p. 11, Step 8
Diffuser
Protective Bag
Backplate
Mud Guard
(provided)
ID Labels
Factory Order
Number
Job Name
Unique Luminaire
ID Number
Full Catalog
Order ID
Luminaire
Section Type
Luminaire Type
and/or Run Length
• Finelite has provided items
listed here, with their
Finelite part numbers.
These items can be found
in separate boxes shipped
with the luminaire.
• Account for all parts
and set aside until they
are needed.
• All other hardware needed
for this installation will be
"by others".
