Finn-Power E5 - Feed Rate and Program Control

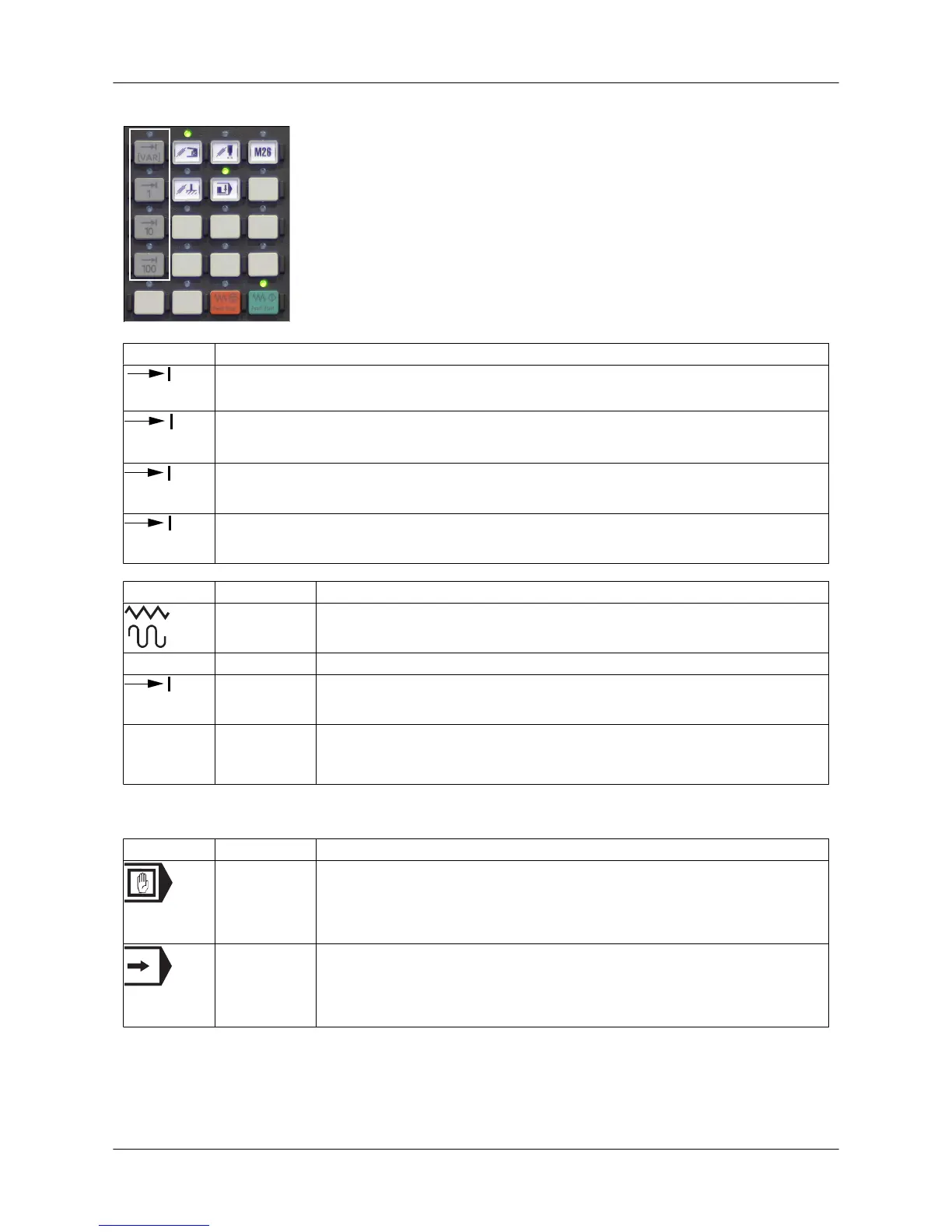

Incremental movement
Symbol Description
[VAR]
Freely definable incremental movement
1
Incremental step 0.001 mm
10
Incremental step 0.010 mm
100
Incremental step 0.100 mm
Symbol Function Description
JOG Select manual mode.
X/Y AXIS Select axis.
10
MOVEMENT Select incremental movement (VAR/1/10/100).
+/- DIRECTION Select direction (+/-).
• When you press the direction button, the axis moves by the selected
step.
6.8.2. MDA and AUTOMATIC modes
Symbol Function Description
MDA Manual Data Automatic
• The machine is controlled by running the program a block or a se-
quence of blocks at a time.
• Start by pressing the CYCLE START button.
AUTO Automatic operation
• The machine executes the commands of the active NC program au-
tomatically.
• Start by pressing the CYCLE START button.
6.8.3. Feed rate control
• Note: The feed rate is limited to 20% until referencing is completed.
• The reading of the feed rate switch stands for percentage of the programmed F value.
