09
Étape / Step 11
Étape 11: Passez le câble derrière la polie LP 3,
mais assurez-vous que le câble est entre la
poulie et la goupille métallique, sinon le câble
sera endommagé. Maintenant, il continue sous
la poulie LP4 et ensuite sur la poulie de LP5.
Fixez le câble au châssis principal avec le
support de câble (illustré ci-dessus).

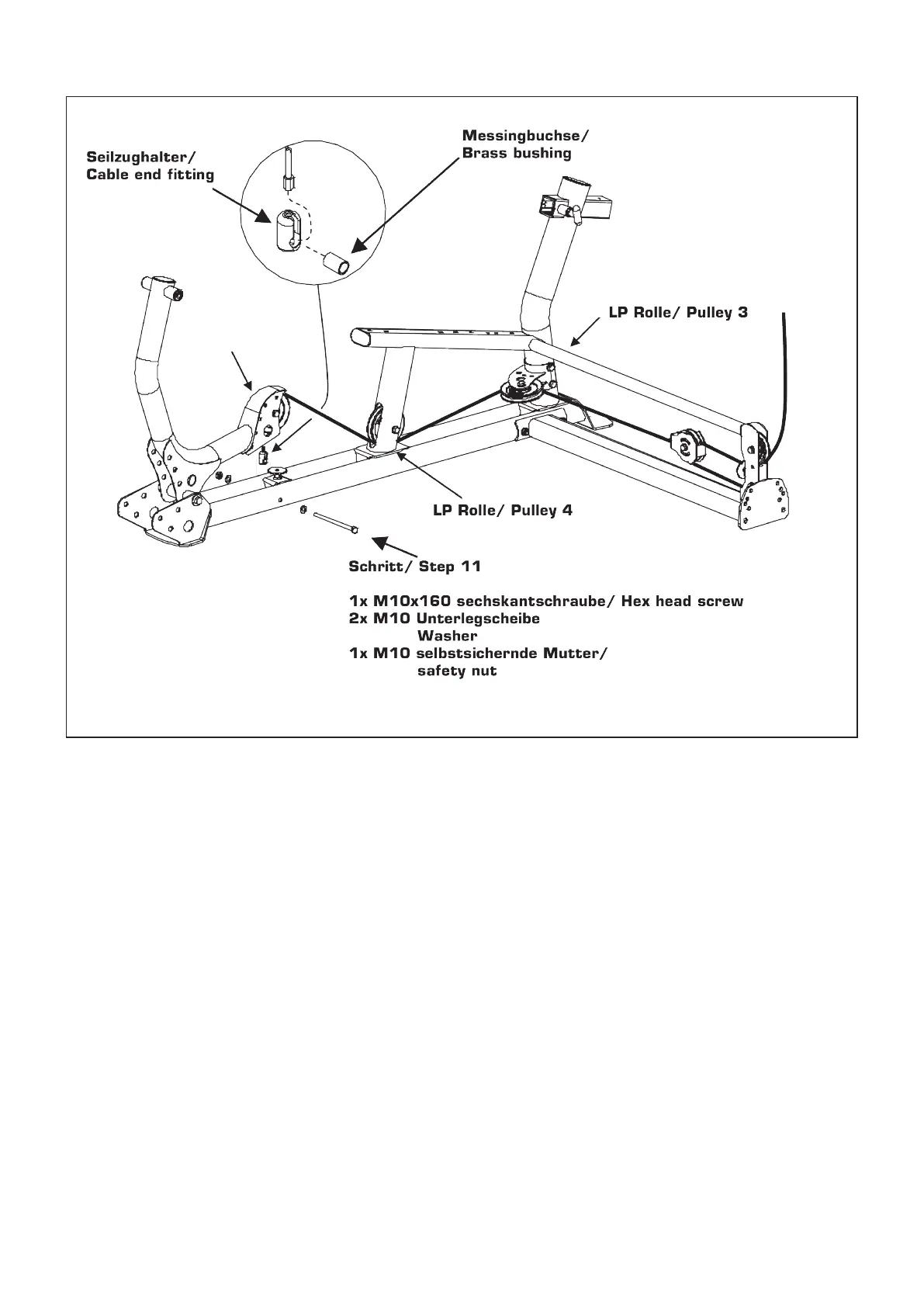

Étape 11: Now, route the cable towards the
back side of LP3 Pulley 3, making sure to route
the cable between the pulley and the cable
retainer pin. The cable must be routed between
the pin and the pulley or the Cable will be
damaged. From there, route the cable down to .
the bottom side of Pulley 4 as shown. From
Pulley 4, go up to the top of Pulley 5 and then
down the front and anchor the cable end with
the Cable End Fitting and Brass Bushing as
show in the highlighted circle
Boulons à tête hexagonale/
Raccord
d'extrémité de câble/
