TECHNICAL DATA
I42TD – I60TD
Rev. 00
January 2005
20/36

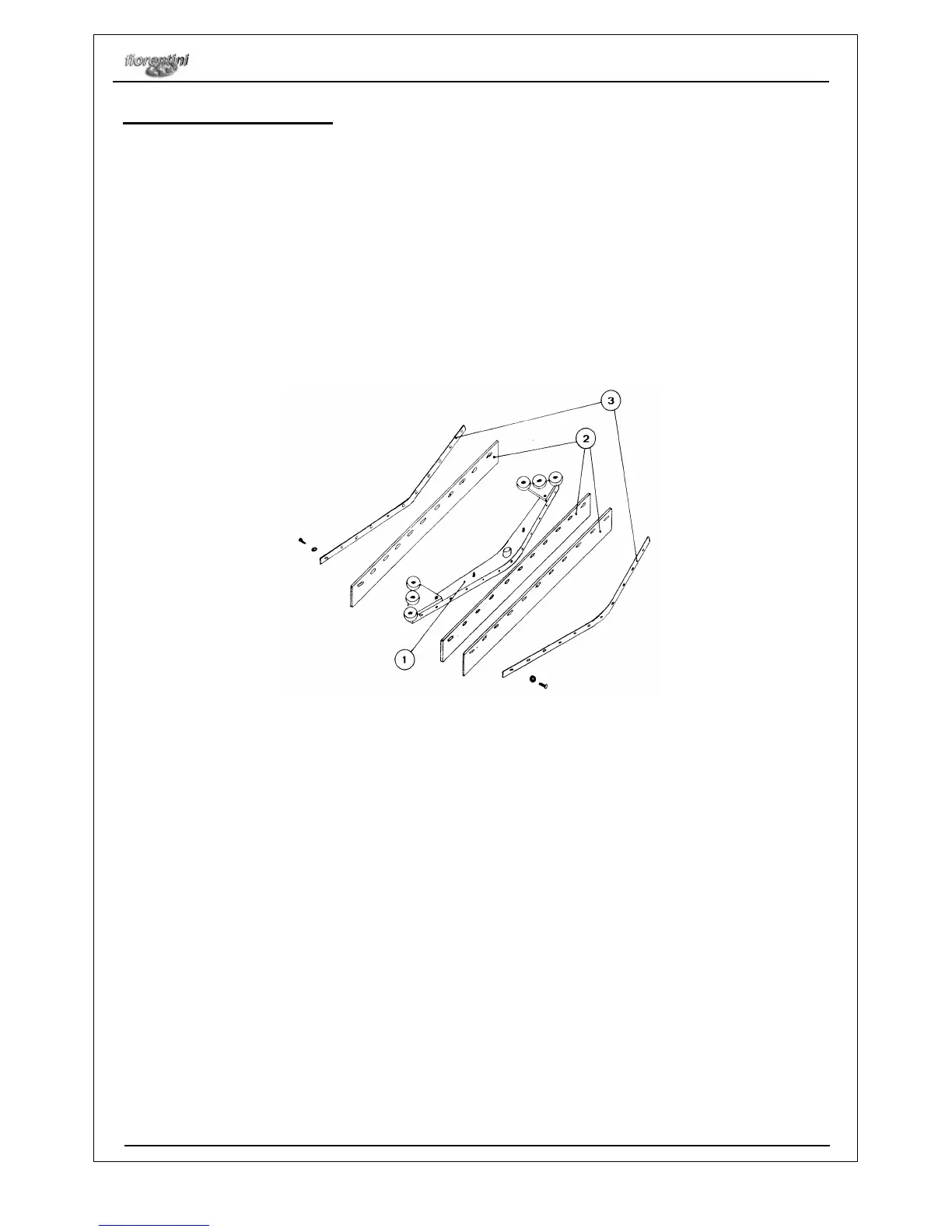

Squeegee blades replacement
Squeegee blades must be replaced when their hedges are worn. A perfect hedge allows a perfect dry
(picture 4.19).
Follow these instructions to replace the squeegee blades:
Lift the squeegee support up, remove the suction pipe (picture no. 12) and unloose the screws;
Remove the squeegee from the machine and lay it on a table;
Remove the internal and external knobs, the steel strips and the worn blades;
Set the new blades up, tighten the knobs and regulate the squeegee.
