6. STARTING THE MACHINE
6.1. TRANSPORT AND HANDLING

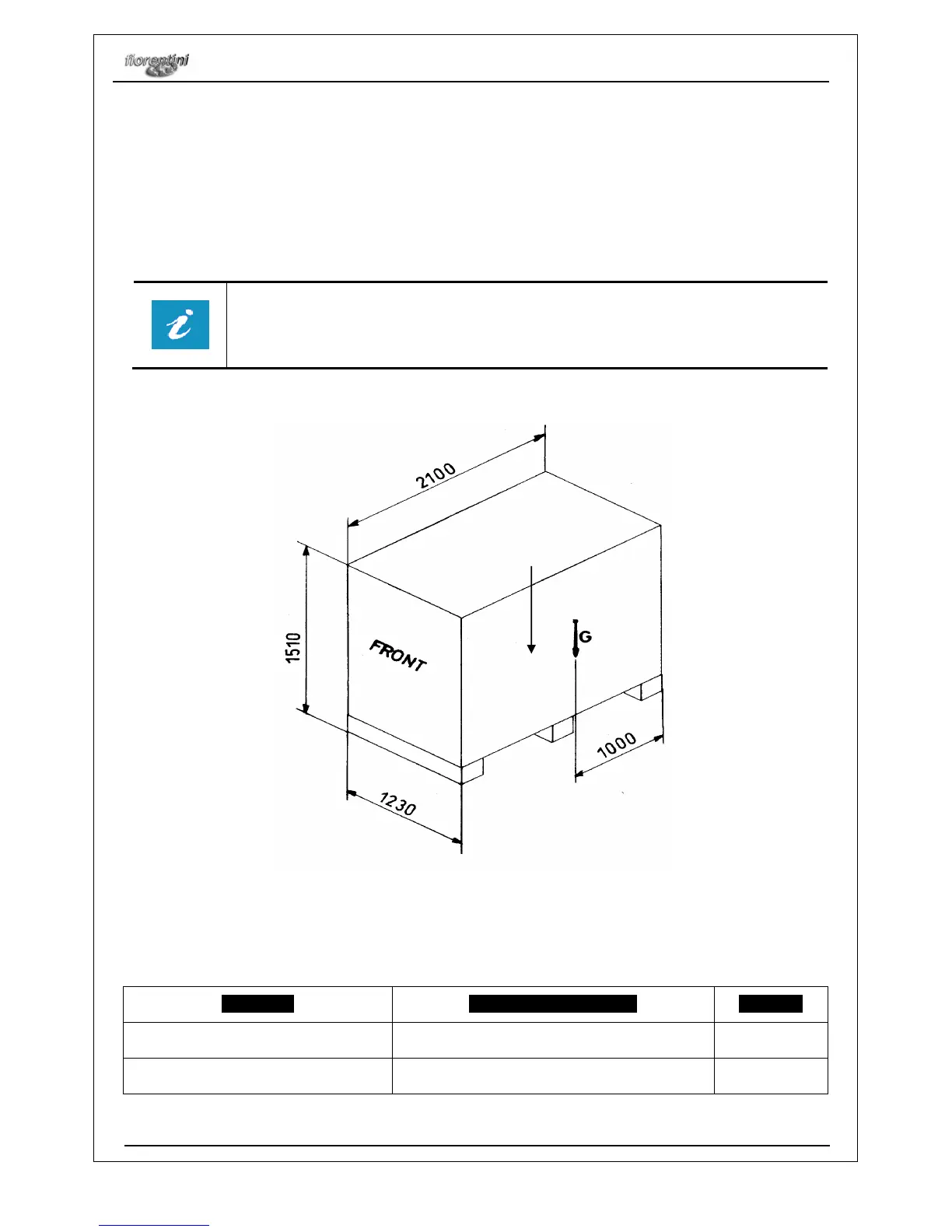

The machine is delivered to the purchaser in a proper package (see picture 4.1 below). A black arrow on the
package shows the barycentre. This arrow must be in the middle of the elevator or transpallet forks. The
package must be carefully handled. Do not place one package onto another one.
The purchaser must make sure that the machine has not been damaged during the
transport and that all papers are on the machine. Otherwise, the purchaser must
immediately contact FIORENTINI in order to sort out the problem.
The purchaser is responsible for the transport of the machine if not differently agreed with
FIORENTINI.
The machine must be handled with proper devices as stated in the scheme below. Please, make sure that
the black arrow on the package are always in the middle of the elevator forks or the sling bands.
PACKAGE HANDLING EQUIPMENT PICTURE
Paperboard or plywood box on a pallet Fork elevator Nr. 4.2.
None
Fork elevator or crane truck with a two-band-
sling and equalizer
Nr. 4.3.
P
icture
