TECHNICAL DATA
S32B
Revision 00 Maggio 2006 Page 12 di 37

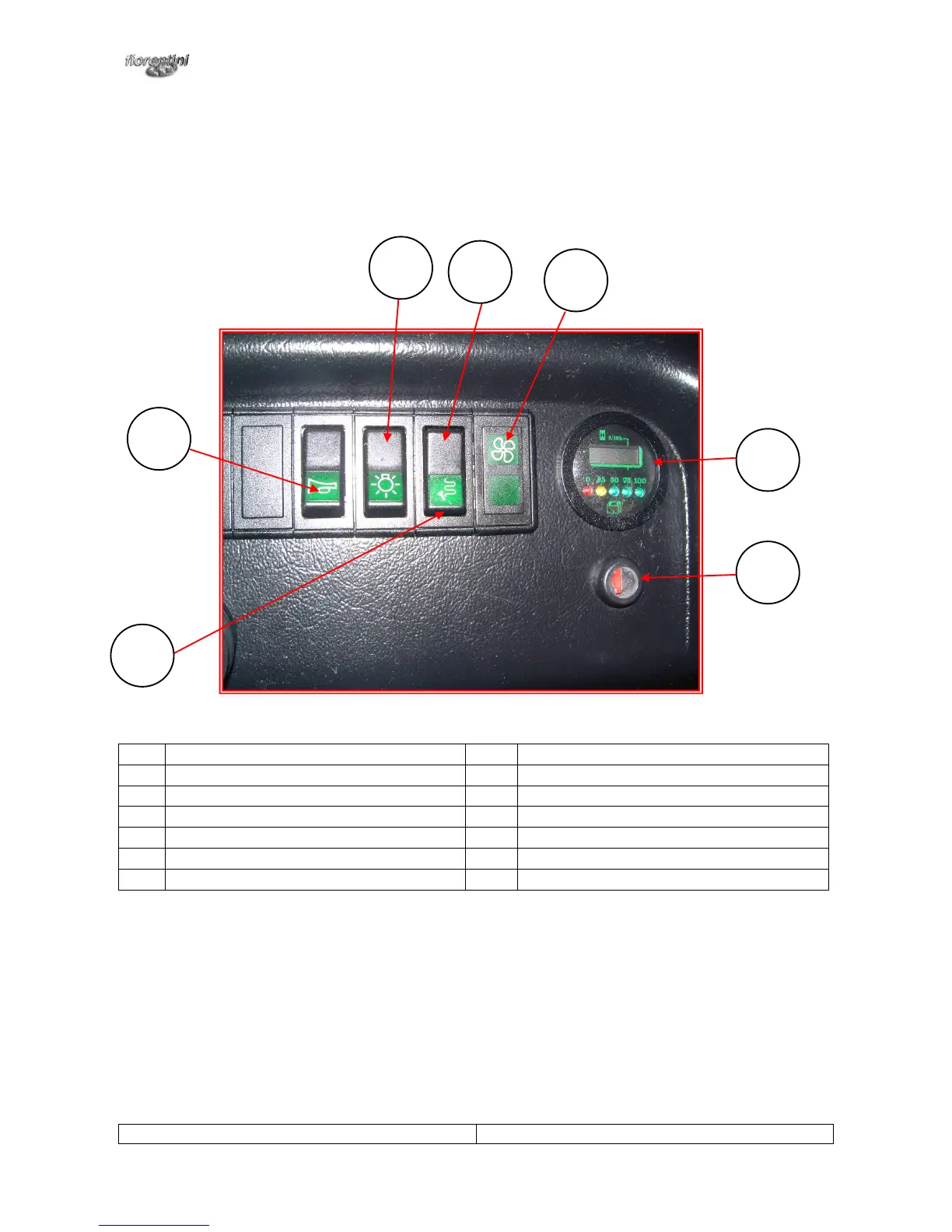

2.3.1 THE DASHBOARD
The dashboard is composed by a series of switches that activate or deactivate all the functions of the
machine. The function of every switch is shown by a pictogram. Picture nr. 2 shows the dashboard. The
function of every switch and pilot light is explained in the scheme below.
1 Key switch
2 Hour counter
3 Horn button
4 Lights switch
5 Filter shaker switch
6 Suction engine switch
7 Vacuum engine pilot light
PICTURE N°
2
1
2
3
4
5
6
7
