INSTALLATION
Mounting the Radio Interface Unit
Mount the interface unit to a flat surface by drilling four mounting holes and installing the enclosed #6 fasteners.

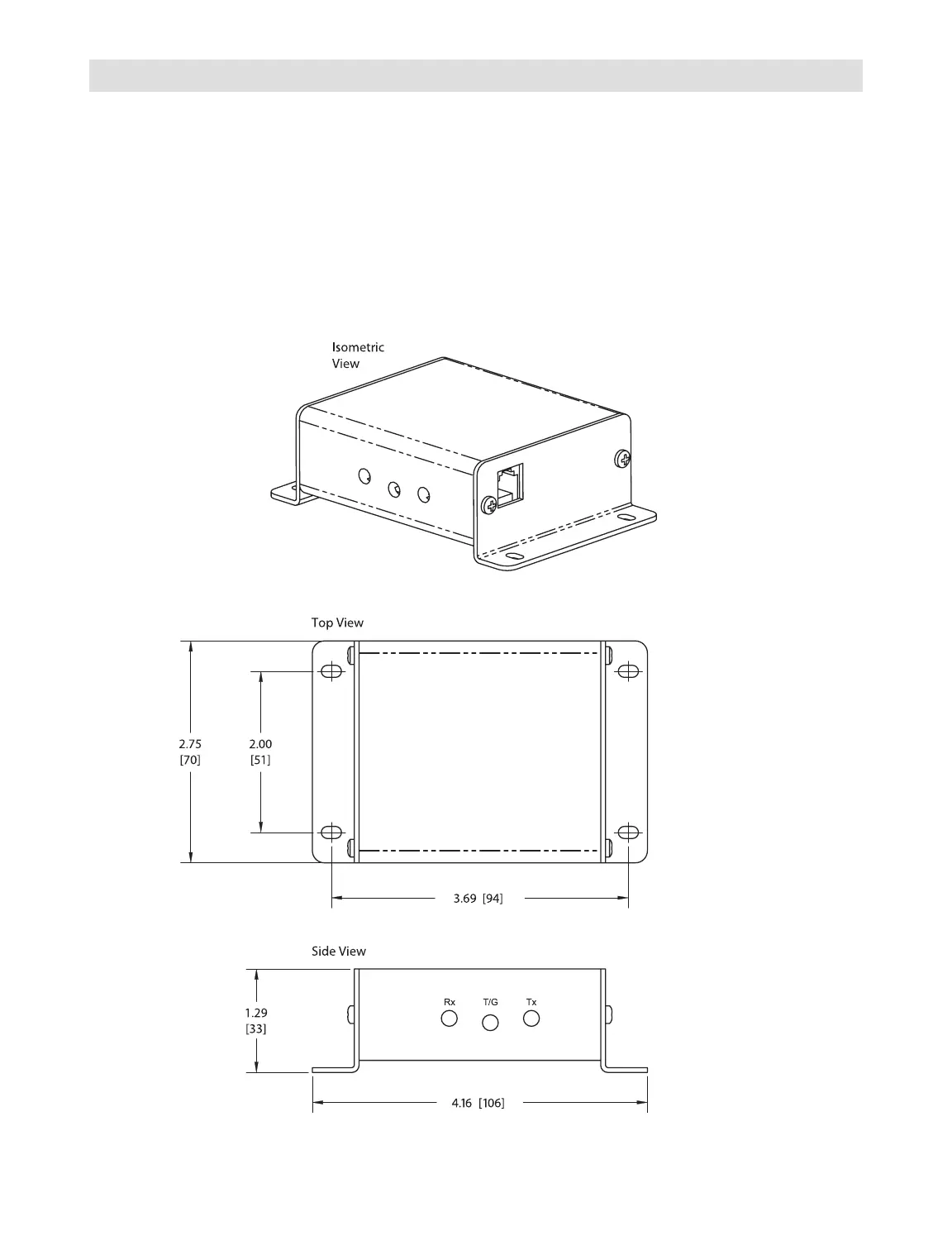

Mounting hole and intercom dimensions are shown below. The unit is designed for vehicle interiors and indoor
use. Do not mount outdoors.
Assembly Shown without Jacks
Units: Inches [millimeters]
Scale: None
