6
SYSTEM WIRING
Power Connections
Power is wired to the unit using the power supply cable with in-line fuse (included). When routing the power
cable, the in-line fuse should be easy to access.
Warning
Before making power connections, make sure the power source is turned off.
Important
Use a dedicated ground for the (-) power connection. Do not ground to the chassis.
Important
We recommend connecting the intercom power to the same power busses as the 2-way radio.
CA Cable Routing
There are several important considerations when routing the CA cable:
• Do not bundle extra cable. The cable should be cut to length at installation, especially when radios
are used.
• Route CA cables away from hot surfaces including vehicle exhaust systems.
• When routing CA cables through bulkheads or other sheet metal, use a grommet in the hole to
prevent damage to the cable.
Headset Module Installation
The following steps are recommended for installing a HM-10 or PP-20 headset module.

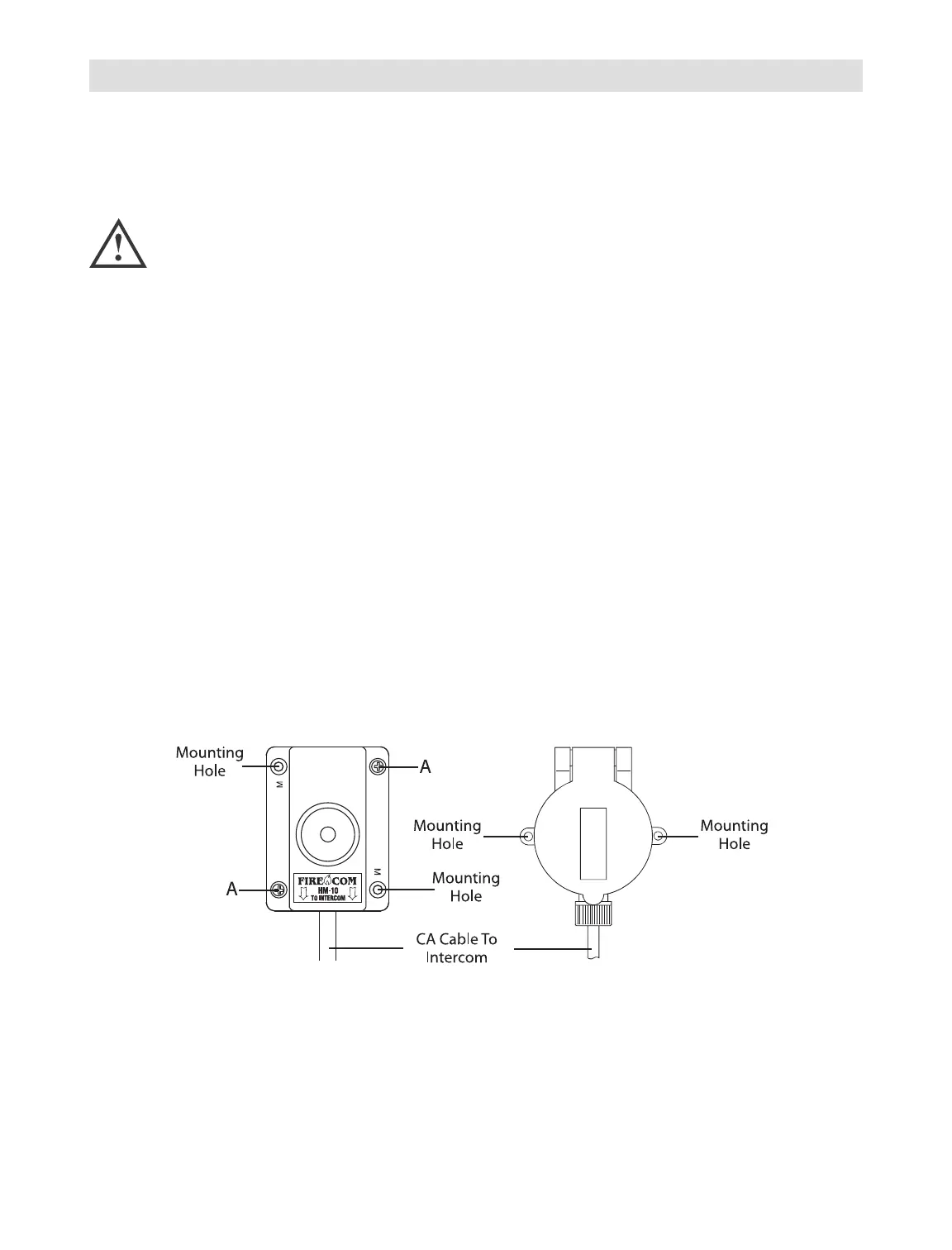

• Identify where the headset module is to be mounted and use the module as a template to locate the
two mounting holes as shown in figure above. Drill two holes for the #6 hardware provided.
• If you are installing a PP-20 module, route the CA cable as outlined in “CA Cable Routing” on this
page and install an RJ-12 connector at the intercom end of the cable as outlined in Appendix B “RJ-12
Connector Assembly.”Always make sure the printed side of the cable is facing the release tab
on the RJ-12 modular plug. If you are installing an HM-10 module, continue with the following steps.
HM-10 PP-20
