Output Circuits
Relay Programming:
The relays are programmable for activation on fire alarm, host panel trouble, fire supervisory, total communica-
tion failure and DACT. Refer to “DACT Programming” on page 36. Addresses ‘85 - 88’ are used for program-
ming relay functions and enable.
RELAY 1 RELAY 2
TB1
NO NONC NCCC

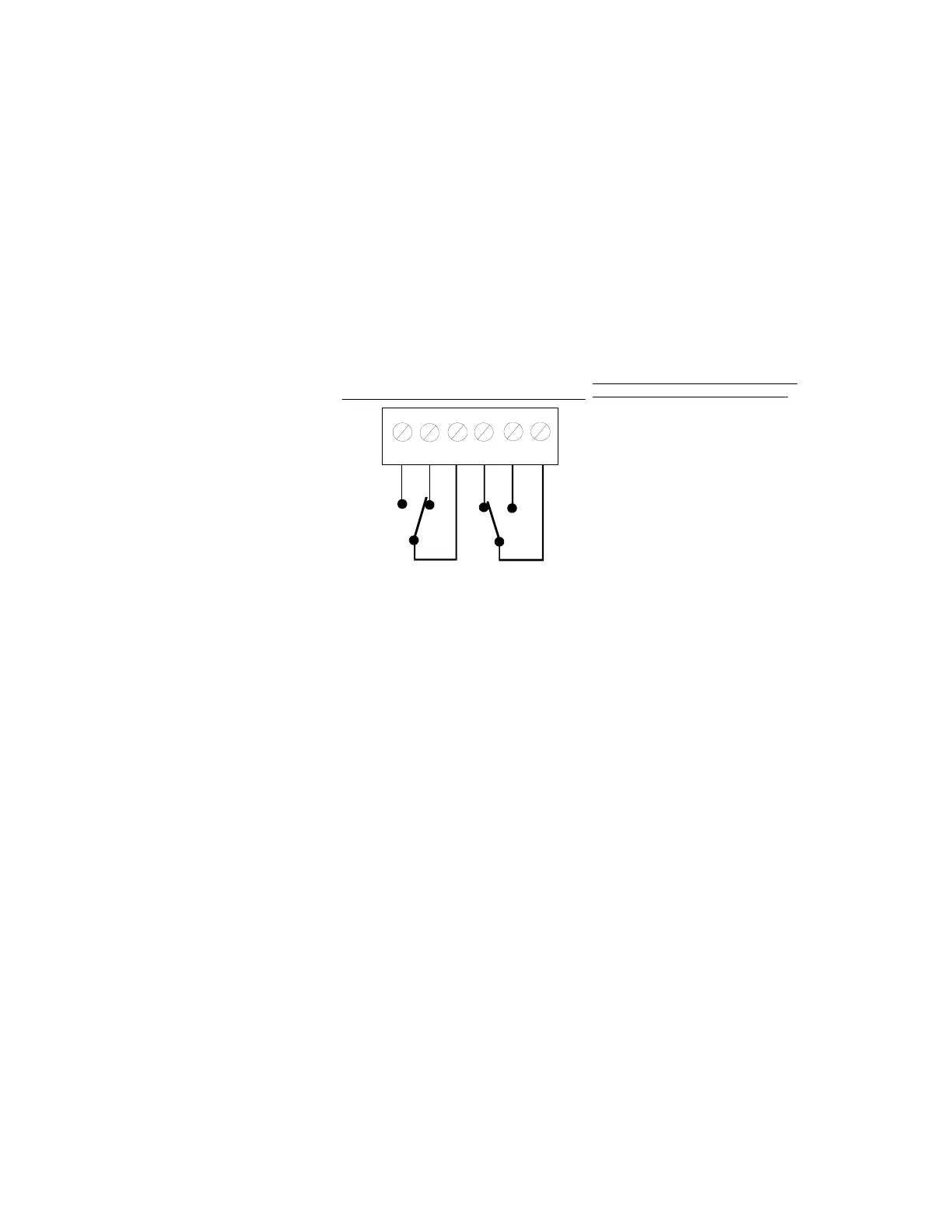

FIGURE 2-9:Programmable Relay
Note: Relay connections may be power-limited or nonpower-limited, provided that 0.25" spacing is
maintained between conductors of power-limited and nonpower-limited circuits.
Relays automatically change to energized
condition when programmed for Trouble.
411ARELE.CDR
Relay 1 - Shown Programmed for Alarm,
Supervisory, or any other function except
DACT Trouble and Host Panel Trouble
(relay contacts shown in deenergized
condition with power applied to 411UDAC)
Relay 2 - Shown Programmed for DACT
Trouble or Host Panel Trouble (relay con-
tacts shown in energized condition with
power applied to 411UDAC)
