8 411UDAC Document #51073 Rev. D 12/09/2008 P/N 51073:D
+
+
+

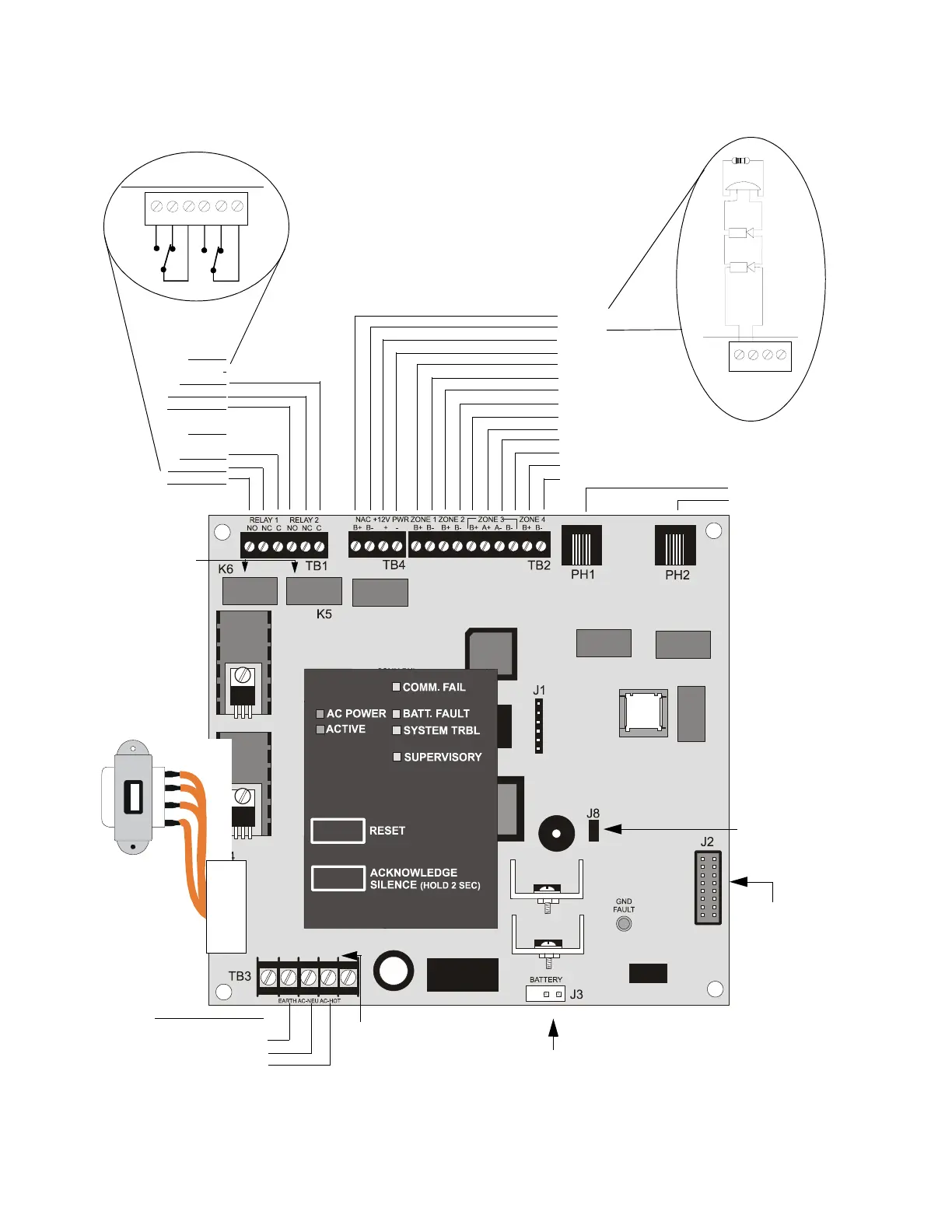

TB4
B+
NAC
+12V POWER
+B- -
TB1
RELAY 2RELAY 1
NO NONC NCCC
Relay 2
(nonsupervised)
Common
NC Contact
NO Contact
Relay 1
(nonsupervised)
Common
NC Contact
NO Contact
NAC B+
NAC B-
+12 VDC Resettable
- Resettable (common)
Zone 1 B+
Zone 1 B-
Zone 2 B+
Zone 2 B-
Zone 3 B+
Zone 3 A+
Zone 3 A-
Zone 3 B-
Zone 4 B+
Zone 4 B-
Phone Line 1
Phone Line 2
Relay K5 and K6
PRO-411
DACT
Programmer
Battery Connector
(supervised, nonpower-limited)
AC Power Connector
(supervised, nonpower-limited)
Earth
AC Neutral
AC Hot
411UDABD.CDR
411ANAC.CDR
411AREL.CDR
- +
HIGH VOLTAGE
CAUTION!
Transformer
Jumper J8 must
be installed for
proper panel
operation
All Circuits on TB2 and TB4 are
supervised and power-limited
hinged cover must be
closed after wiring
