FCPS-24FS Series Instruction Manual — P/N 51883:H1 4/14/2011 37
Canadian Applications Applications

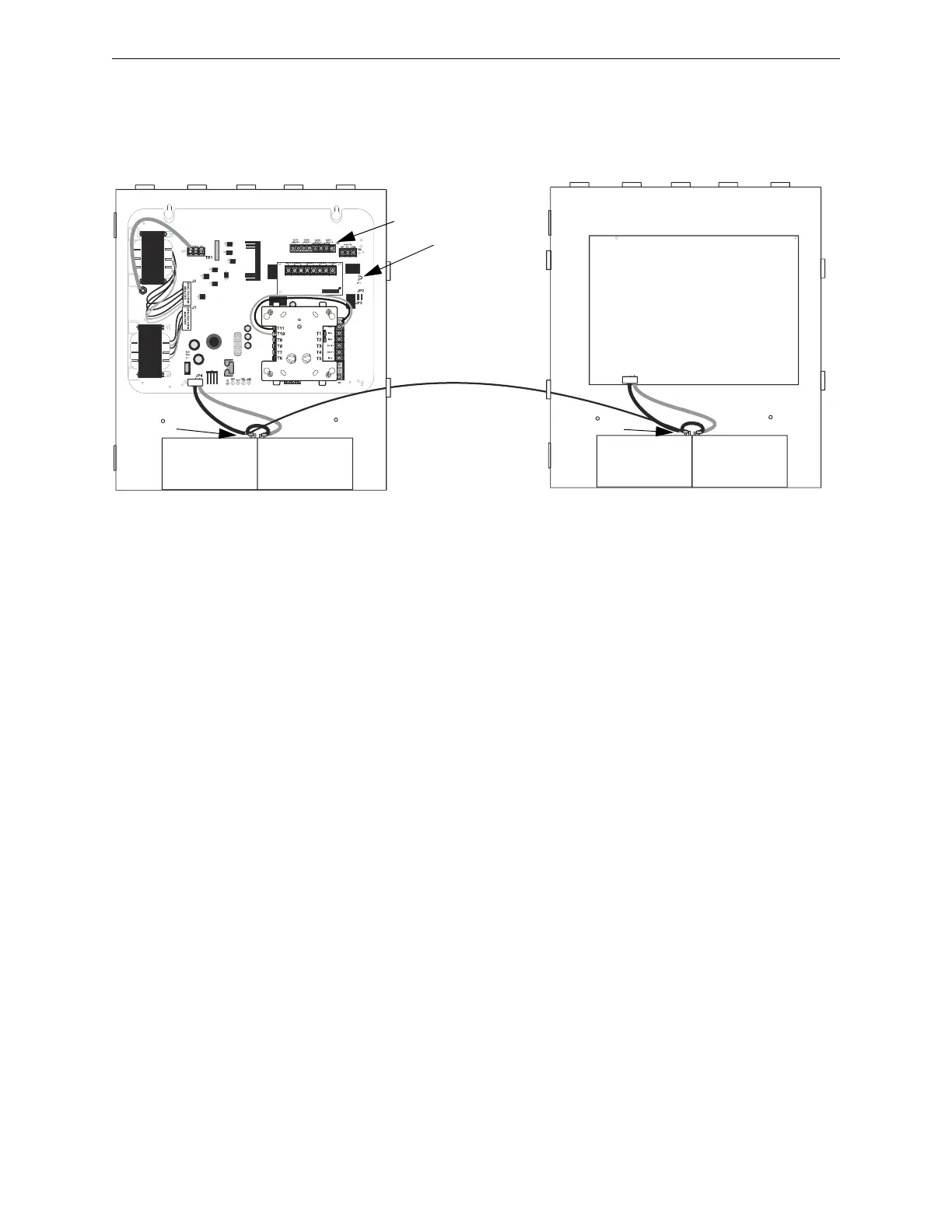

• The negative (-) battery terminal of the FCPS-24FS power supply must be connected to the
negative (-) battery terminal of the host FACP.
Host FACP
FCPS Power Supply
Battery -
Battery -
NAC Outputs only
Cut JP1
24fsCanadiantpH.wmf
*If the SLC device does not match the one in this figure, refer to the SLC man-
ual wiring conversion charts for legacy and newer versions of the modules.
