·When mounting an alarm on the ceiling, locate it at a minimum

of 30 cm (12 in) from the side wall (see Diagram 5).

·Put smoke alarm at both ends of a bedroom hallway or large

room if the hallway or room is more than 9.1 m (30 ft) long.

·Install smoke alarms no slopped, peaked or cathedral ceilings

between 500 and 1500mm from the highest point of the

ceiling. Smoke alarms in rooms with ceiling slopes greater

than 1m in 8 m horizontally shall be located on the high side

of the room (See Diagram 6)

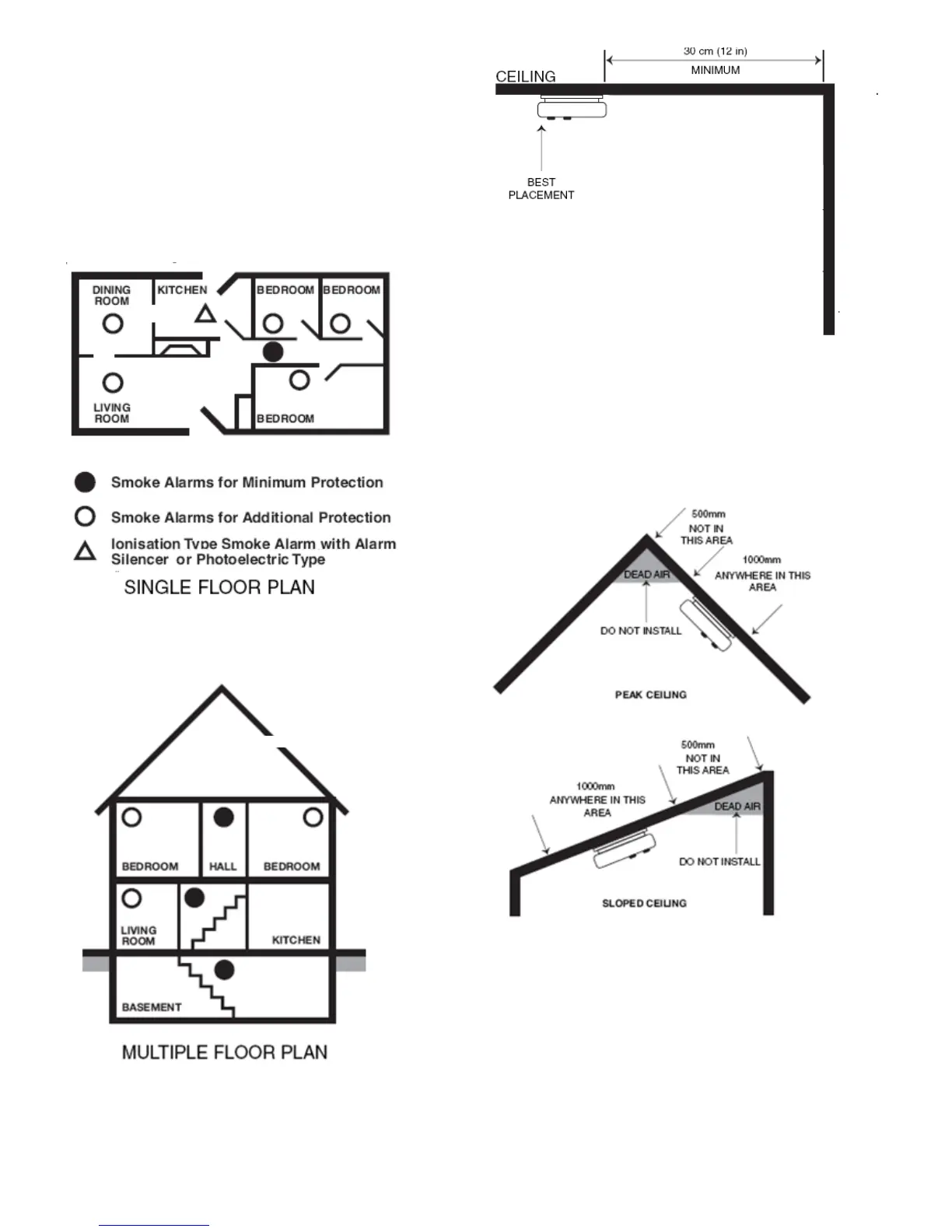

Diagram 3

Diagram 4

Side wall

Diagram 5

Smoke alarm should be located between

500 and 1500mm from the highest point.

Diagram 6
