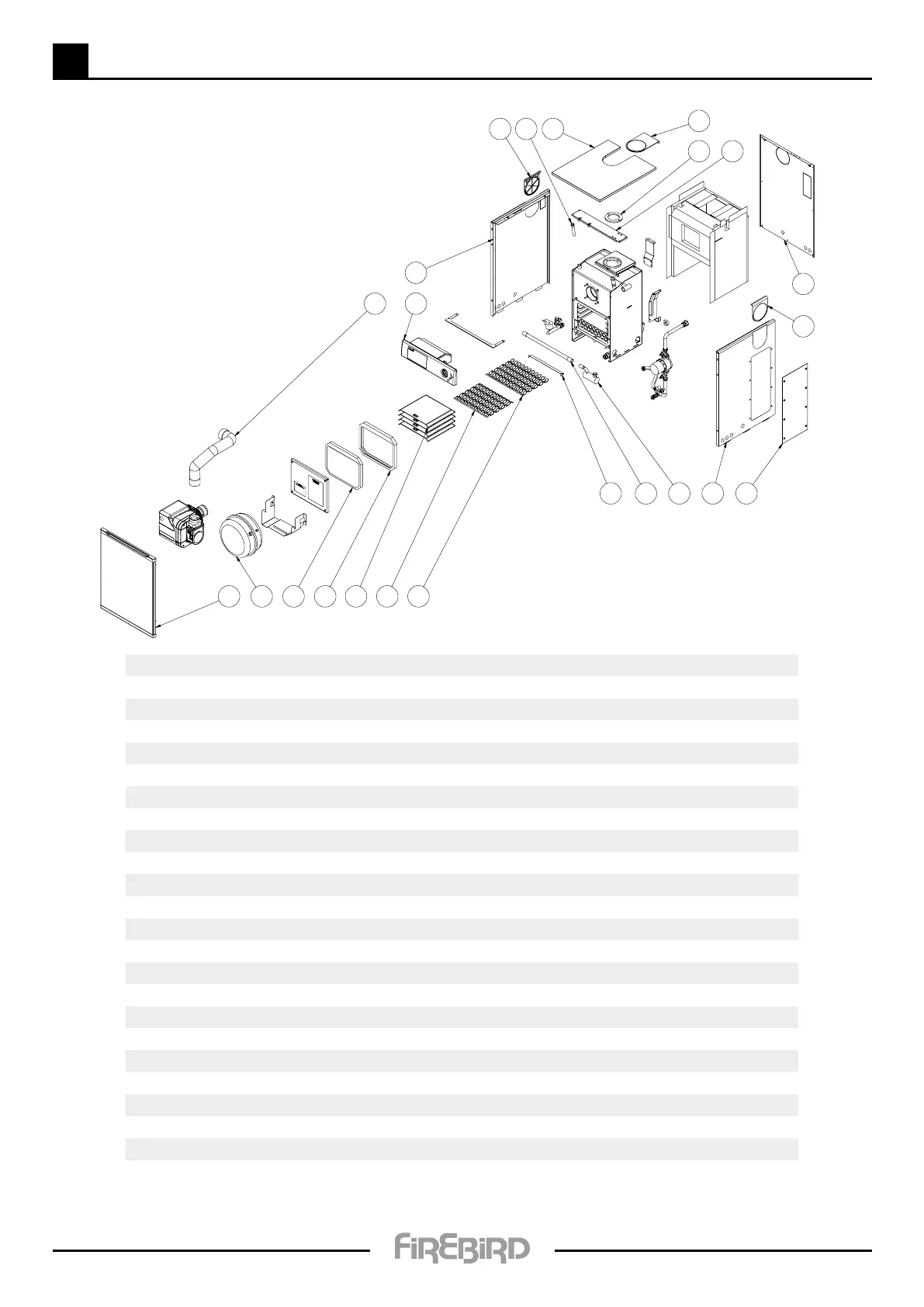

4 4.3 SYSTEM CONDENSING BOILER - TECHNICAL DETAILS
22 3 1 2
6
7
4517
14
138910
15
12
18
21
19
20
18
16
11
For burner parts refer to burner manual
No. Qty Description
26 kW 35 kW
1 4 Tube baffle BA110907 BA110907
2 5 Tube baffle single BA110908 BA110908
3 4 Smoke baffle BA212028/BA212122 BA212028/BA212122
4 1 Door seal ACC035GRA ACC035GRA
5 1 Door duroboard ACC035GSK ACC035GSK
6 1 Flue gasket ACC000FRG ACC000FRG
7 1 Stat pocket ACC003PKT ACC003PKT
8 1 Condensate trap ACC000TRP ACC000TRP
9 1 Condensate hose ACC000FLX ACC000FLX
10 1 Heat deflector ACC000HTD ACC000HTD
11 1 Air hose ACC000SSH ACC000SSH
12 1 Control panel 314734 314734
13 1 Casing left side 214744 214744
14 1 Casing side cover 214748 214748
15 1 Casing right side 214745 214745
16 1 Casing top support 214749 214749
17 1 Casing front 214746 214746
18 2 Side flue blank 114729 + 114730 + 114731 114729 + 114730 + 114731
19 1 Casing top 214750 214750
20 1 Top flue blank 114728+114729+114730 114728+114729+114730
21 1 Casing back 214747 214747
22 1 Pressure vessel ACC012PVL ACC012PVL
