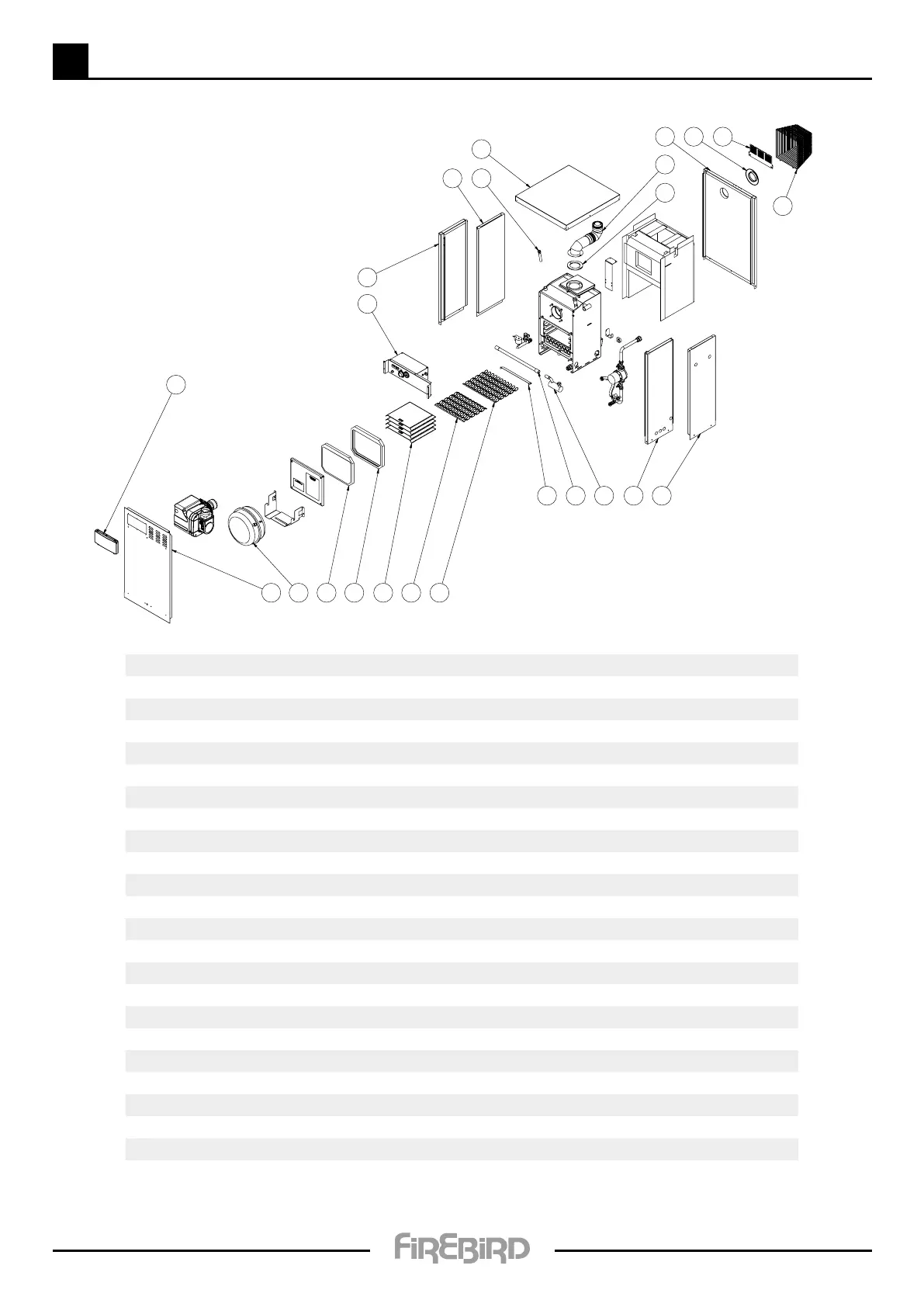

5 5.3 SYSTEMPAC CONDENSING BOILER - TECHNICAL DETAILS
18
11 4
3 2
1
10 89
5
14
16
12
13
15
16 7
17
6
20
19 21 22
23
For burner parts refer to burner manual
No. Qty Description
26 kW 35 kW
1 4 Tube baffle BA110907 BA110907
2 5 Tube baffle single BA110908 BA110908
3 4 Smoke baffle BA212028/BA212122 BA212028/BA212122
4 1 Door seal ACC035GRA ACC035GRA
5 1 Door duroboard ACC035GSK ACC035GSK
6 1 Flue gasket ACC000FRG ACC000FRG
7 1 Stat pocket ACC003PKT ACC003PKT
8 1 Condensate trap ACC000TRP ACC000TRP
9 1 Condensate hose ACC000FLX ACC000FLX
10 1 Heat deflector ACC000HTD ACC000HTD
11 1 Pressure vessel ACC012PVL ACC012PVL
12 1 Inspection window 115027 115027
13 1 Control panel 315039 315039
14 1 Fixed right panel ACCP002CCP ACCP002CCP
15 1 Fixed left panel ACP003CCP ACP003CCP
16 1 Removable panel ACP103CCP ACP103CCP
17 1 Casing top 215034 215034
18 1 Casing front 215031 215031
19 1 Casing back 215035 215035
20 1 Flue kit HPF035KIT HPF035KIT
21 1 Flue seal 110721 110721
22 1 Basket plate 214261 214261
23 1 Condense terminal guard ACC000CTG ACC000CTG
