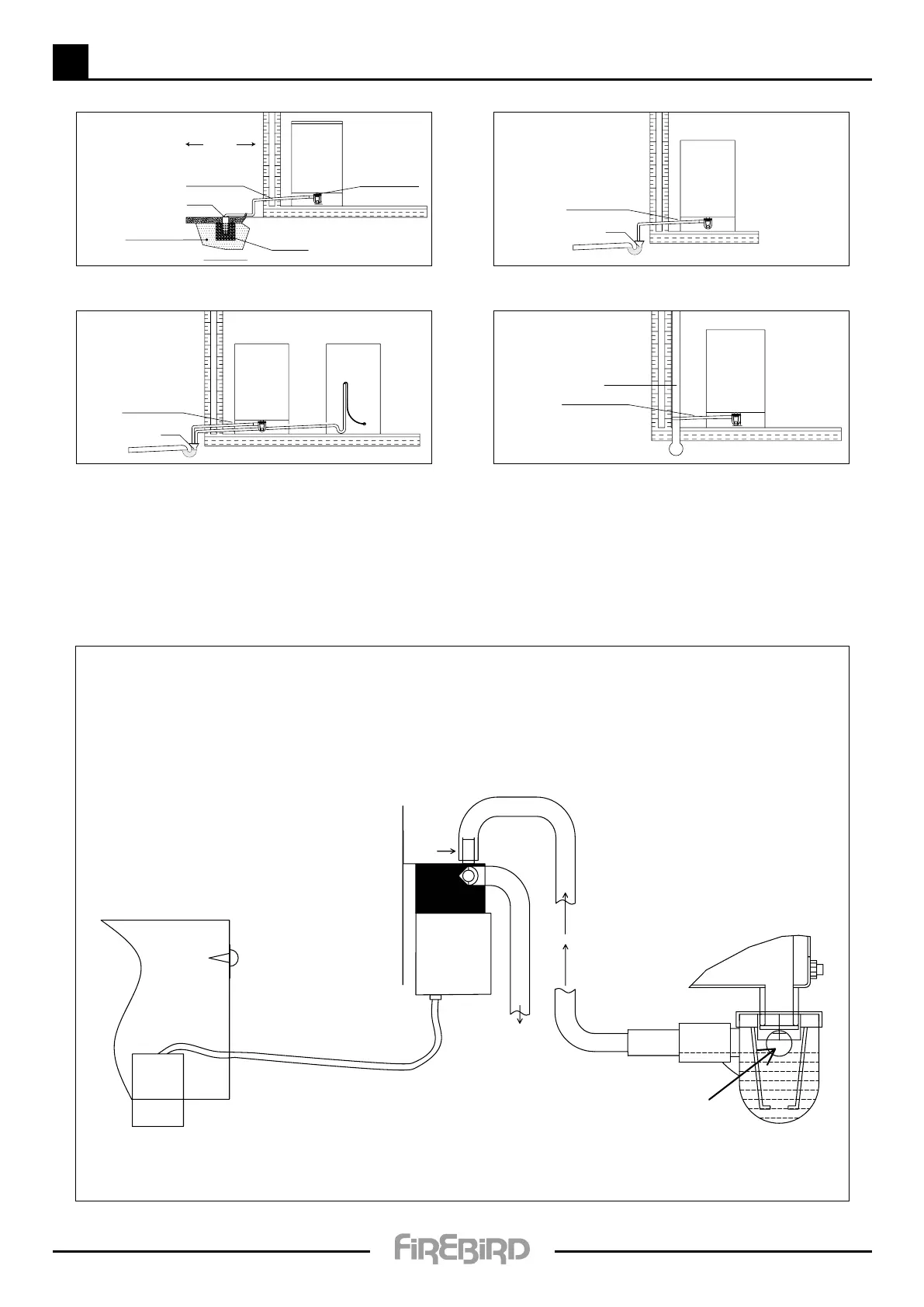

4.2 - INSTALLATION - CONDENSATE DISPOSAL
SYSTEM NO. 2 - CONDENSATE PUMP
Out
Inlet
Out to drain
Control panel
Condensate Pump can be positioned
within the casing of the boiler on the
base or fixed to the casing of the boiler
house boiler, or mounted on the wall
alongside the boiler.
Condensate
pump
Inlet connected to
condensate drain
at base of boiler
Condensate
pump wired
in to come on
with burner
Burner
plug
Remove the float from the condensate trap
before connecting the condensate pump.
CONDENSATE PUMP
(kit is available as an optional extra)
Boiler
Sealed
Condensate Drain
Condensate Drain
Trap
Lime Stone
Chippings
Free Draining Soil
Soak Away
500mm
Figure 1
Boiler
Condensate Drain
Washing
Machine
Gully
Waste
Pipe
Trap
Figure 2
Boiler
Condensate Drain
Gully
Trap
Figure 3
Boiler
Stack
Trap
Condensate Drain
Condensate drain must have
a minimum diameter of 22mm
and it must be supported with
a 2.5˚ (1:100) fall from boiler.
Figure 4
Ensure that the boiler combustion chamber cannot be filled through the condensate trap from
another appliance (eg. washing machine) which is drained at a higher level (see Figure 2).
