Fireboy- Xintex FBD-2 - Installation Manual; Units; Mechanical Installation

FBD-2
4
Part Number 18165, A, 04/03/2023
1. Installation Manual
Units
The fire alarm panel comes in the option shown in Table 1.
Unit
Number of zones
FBD-2
2
Table 1: Unit options
Mechanical Installation
The unit consists of two parts. The front panel and a backplate. The backplate can be mounted on
a wall or console. The connector on the back of the unit will protrude though the backplate into
the wall.
A ridge on the top of the unit holds the front panel in place. The front panel can be fastened using
a screw on the bottom of the unit.

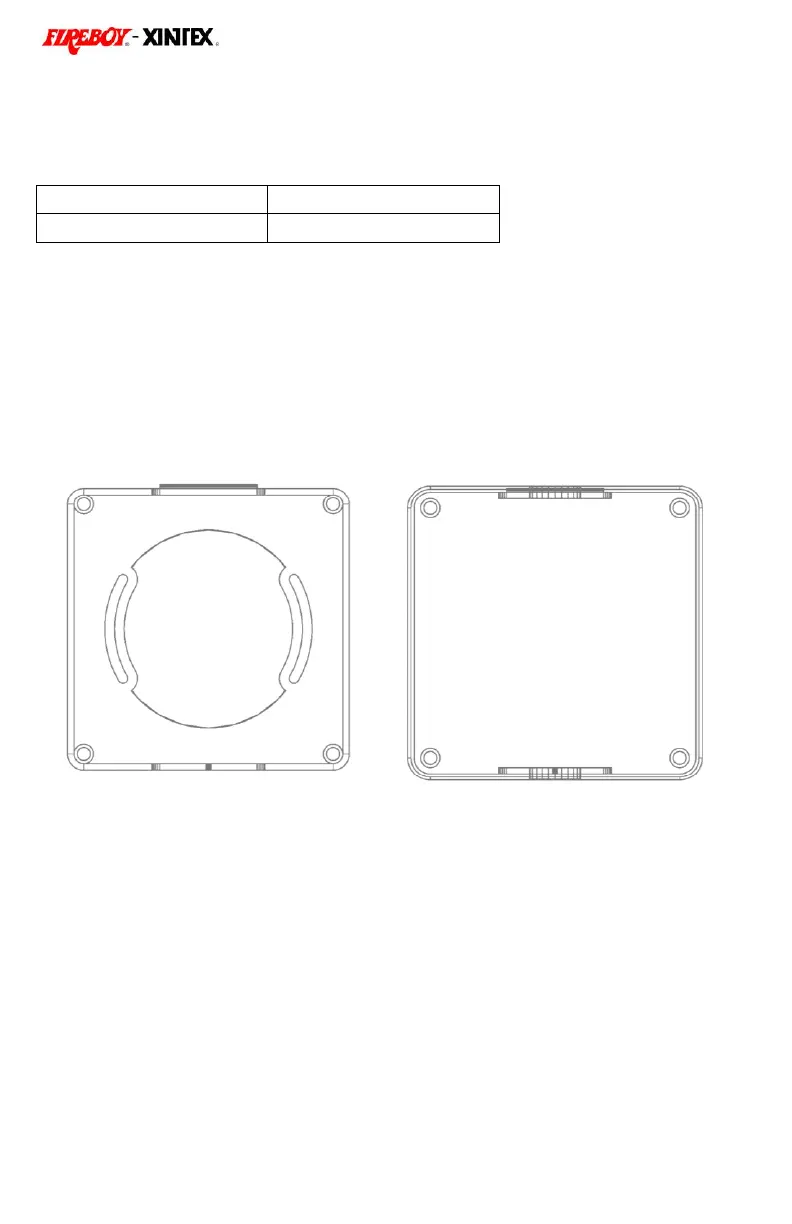

Figure 1: Mounting options
Optionally, a wall mount box (P/N: 96016) can be provided to mount the unit on a wall without
needing a hole. This box provides space for the cabling.
