Middle area
Outllet water temperature symbol, the figure under is the temperature value.
Failure symbol.
Bottom area
Turning on timer symbol. It appears when setting turn on timer.
Turning off timer symbol. It appears when setting turn off timer.
Auto ON/OFF timing setting.
ON
OFF

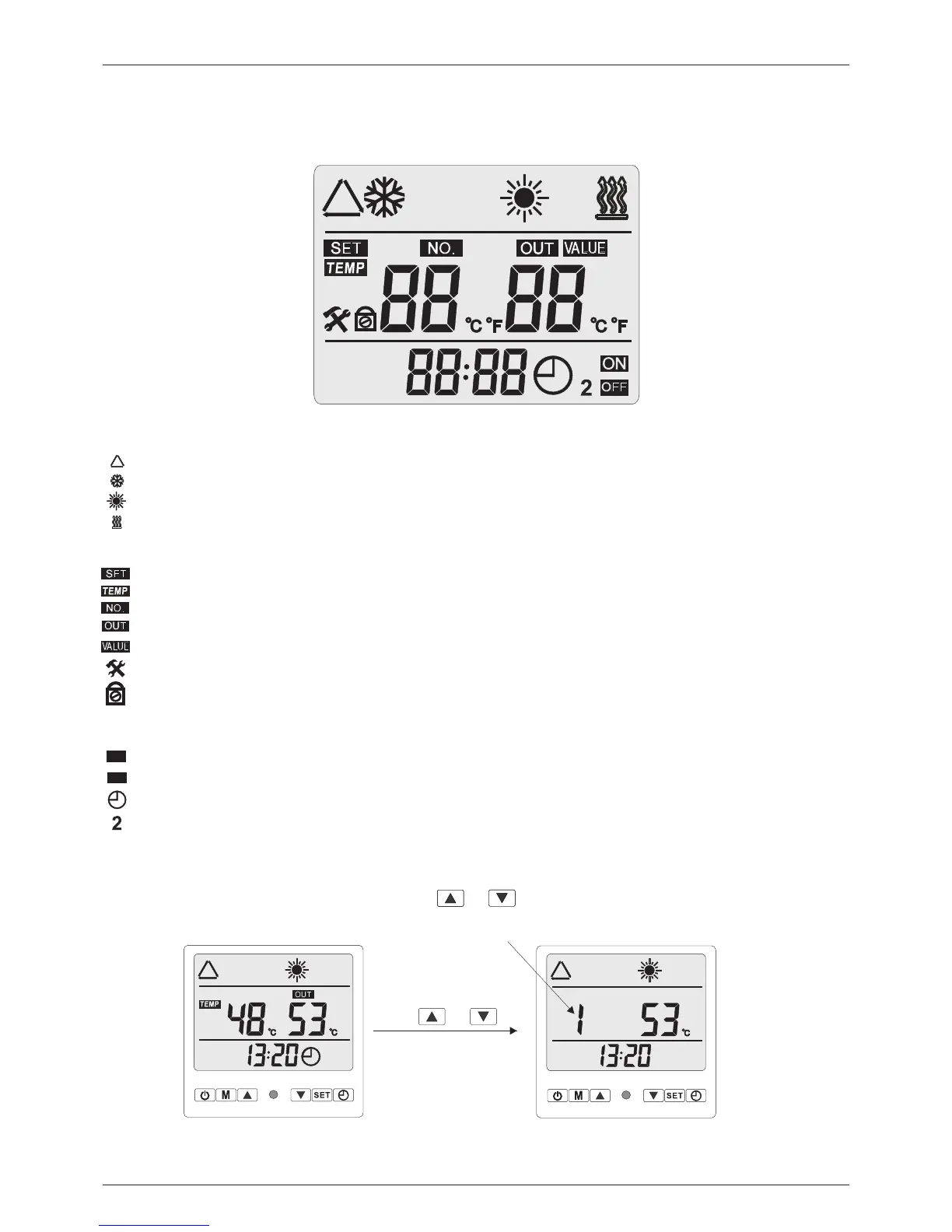

7.2 Illustration for LCD Display
Top area
Circulation pump running.
Cooling mode symbol / Defrosting symbol (flash).
Heating mode symbol.
Auxiliary heat source start.
Parameter number symbol, the figure under is the parameter number .
Water tank temperature symbol, the figure under is the temperature value.
Clock time setting symbol.
Parameter value symbol, the figure under is the parameter value.
This symbol means heat pump has two compressors.
7.3 Water Temperature Setting
When the heat pump is switched on, just press or to check the parameter.
Initial state
For example
press or
“1" means parameter of water tank temperature.
Hot Water Series
16
Press “up” and “down” key for 3~5 seconds, “Bee~~!!” sound is heard and the keys are lock (vice versa).
