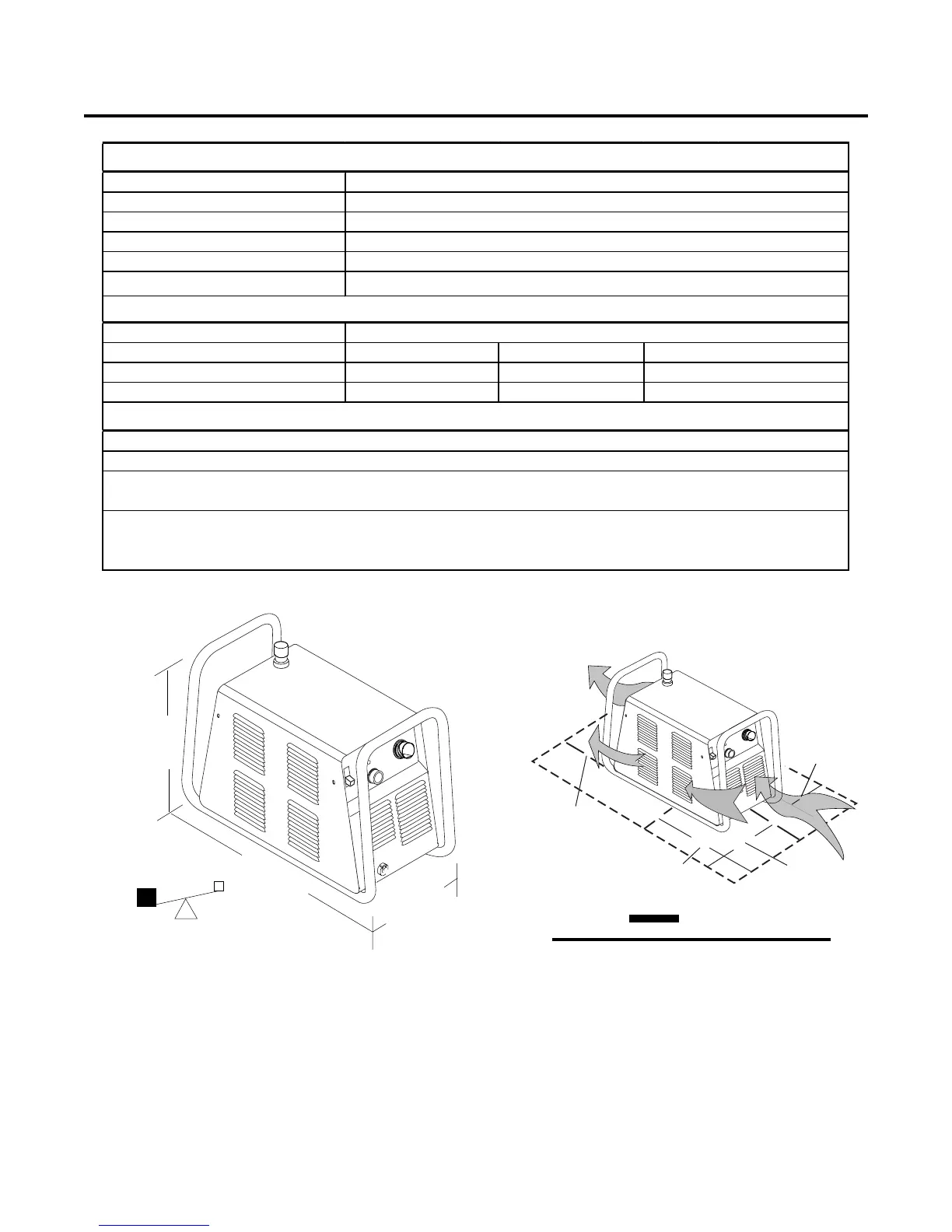

Firepower FP-38 - Section 2: Specifications

Manual 0-2967 2-1 SPECIFICATIONS
SECTION 2: SPECIFICATIONS
15.75"
400 mm
10"
254 mm
21"
0.53 m
43 lb / 19.5 kg
A-03378
6"
150 mm
A-03379
6"
150 mm
6"
150 mm
6"
150 mm
Weight includes torch & leads, input power cord,
and work cable with clamp.
CAUTION
Provide clearance for proper air flow through
the power supply. Operation without proper
air flow will inhibit proper cooling and reduce
duty cycle.
Input Power (See Note 1)
Power Sensing
Input Power Cable
Output Current
Power Supply Gas Filtering Ability
Ambient Temperature
Duty Cycle 35% 60%
DC Voltage 78 vdc 89 vdc
Current 30 Amps 22 Amps
Fire
p
ower FP-38 Power Su
pp
l
y
S
p
ecifications
120 VAC (± 10%), Single-Phase, 50/60 Hz
208 - 230 VAC (± 10%), Single-Phase, 50/60 Hz
Automatic Voltage Selection. See Note 1.
Cable with plug, for 120VAC, 20-Amp Single-Phase input power. (Note 2)
20-30 Amps, continuously variable
Particulates to 20 Microns (Note 4)
Fire
p
ower FP-38 Power Su
pp
l
y
Dut
y
C
y
cle
(
Note 3
)
104° F (40° C)
n/a %
n/a vdc
n/a Amps
3
. Duty Cycle is the percentage of time the system can be operated without overheating. Duty cycle is
reduced if primary input voltage (AC) is low or the DC voltage is higher than shown in this chart.
4
. Air supply must be free of oil, moisture, and other contaminants. Excessive oil and moisture may cause
double-arcing, rapid tip wear, or even complete torch failure. Contaminants may cause poor cutting
performance and rapid electrode wear. Optional filters provide increased filtering capabilities.
Notes
1
. Power supply accepts 120-230 VAC input power. No manual switching is required.
2.
Plug must be replaced for 208/230V input power.
