FirePro FP522V - Installation Sketch Map

• Attach the bracket to the plastic plugs and x tightly with
screws into the plastic plugs. (Refer to Diagram 4).
• Fit the alarm on the bracket and turn the alarm body
clockwise, until matching well on the bracket.
• Press the button to test the unit. The alarm sounds 3beeps
–1.5 seconds pause, repeat it until release the button. If no
sound, it indicates a defective alarm – refer to “Trouble
shooting” for solution or return to your retailer during
warranty.
• If you have any questions on installation, you can contact
your retailer.
WARNING:
To prevent injury, this unit must be securely attached to the
ceiling in accordance with the installation instructions.
Manufacturer
FIREPRO
138 – 140 Bayeld Road East,
Bayswater North, VIC, 3153, Australia
TEL: +61 3 9720 4333
E-MAIL: info@reproaus.com

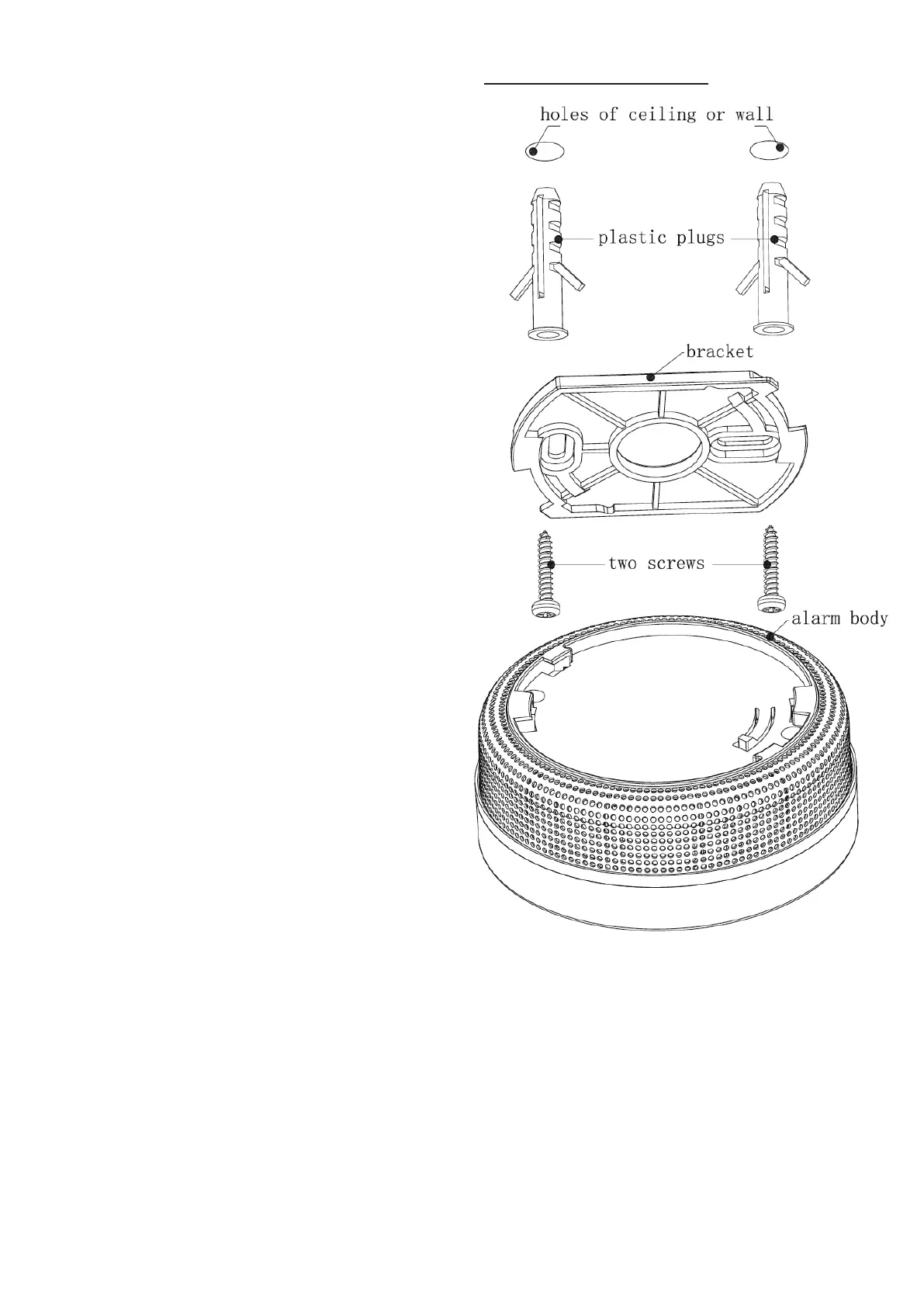

Installation sketch map:
Document NO.: FP522V-001 2020.02.18 Version: A- 5 -
